Cyclone PRO User Manual 39
CYCLONE PRO
5.1.2 Specify Programming Script

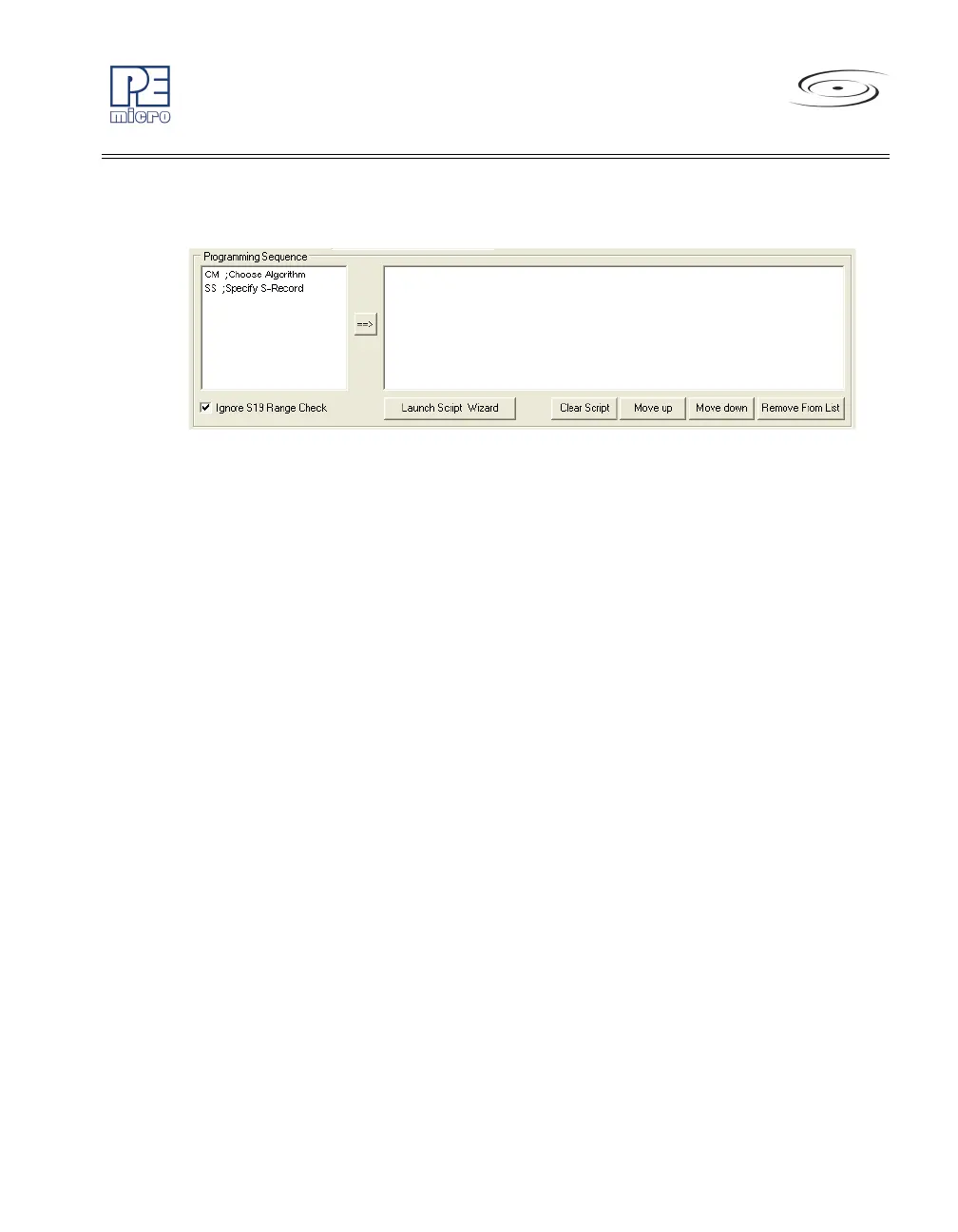

Figure 5-9: Specify Programming Script
This is a two-panel interface. The left panel provides a list of available
programming functions. The right panel displays the ordering of the functions.
To specify the programming algorithm for the target, double-click on the
Choose Algorithm (CM) function in the left panel. Or, you may highlight it and
add it to the right panel using the arrow (->). This opens the Load
Programming Algorithm dialog.
