40 Cyclone PRO User Manual
CYCLONE PRO

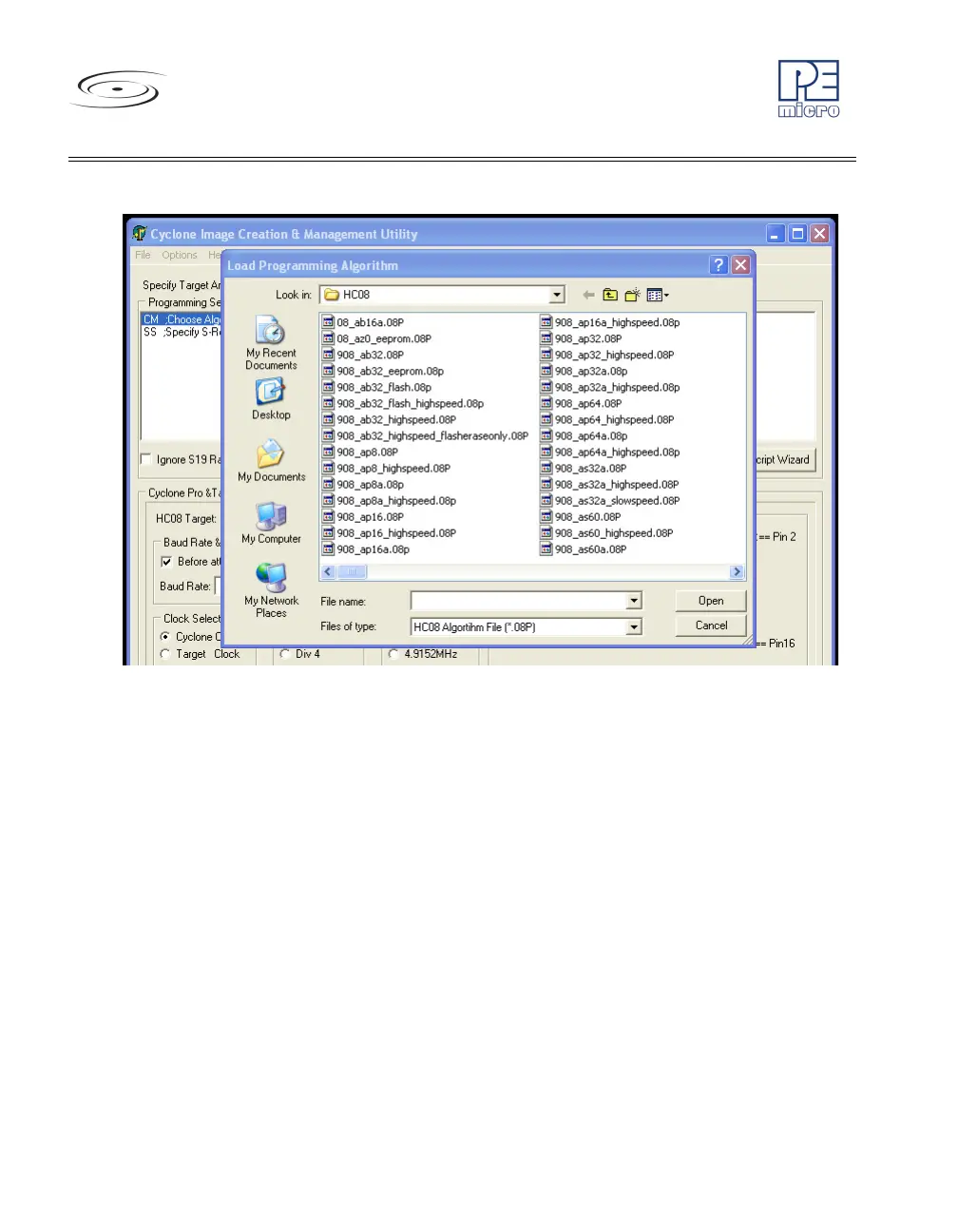

Figure 5-10: Load Programming Algorithm Dialog
Select the programming algorithm that you wish to use.
Similarly, to specify the S-Record to be programmed into the target, double-
click on Specify S-Record (SS) in the left panel. This opens a dialog which
allows you to select the appropriate S-Record.
Once both the algorithm and S-Record are selected, the full list of
programming functions becomes available in the left panel.
