Cyclone PRO User Manual 73
CYCLONE PRO

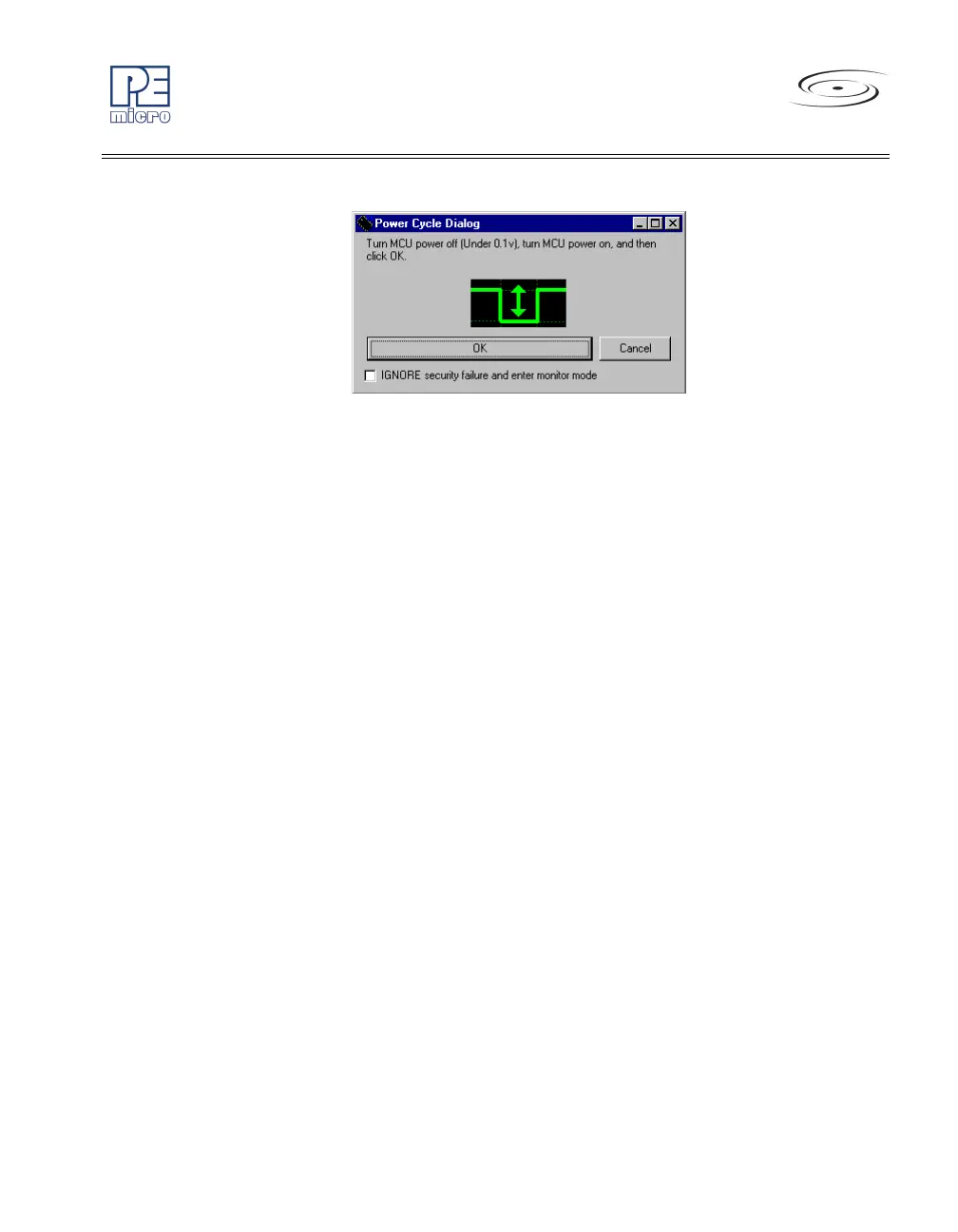

Figure 8-17: Power Cycle Dialog
3. Software automatically powers up the ICS, which configures the pro-
cessors MON08 configuration pins.
8.3.3.4 Serial Port Stop Bits
Serial Port Stop Bits allow users of Class 1-4 devices that are
experiencing unreliable communication to increase the number of stop
bits to 2.
8.3.3.5 Pulse IRQ on Stop
The IRQ on Stop allows the users to execute a mechanism to stop a
running HC08 microprocessor. For more information, please refer to the
Stop a Running HC908 Target.pdf application note that is available from
P&E Microcomputer Systems website: www.pemicro.com.
8.3.4 Target MCU Security Bytes
One of the steps that is necessary to properly bypass security is to provide the
proper security code for the information that is programmed into the part. This
holds true even when the part is blank. The security code consists of the 8
values which are currently stored in flash locations $FFF6 - $FFFD of the
processor.
