Warning and indicator lamps illuminate in red (dan-
ger), amber (caution), green (status advisory), or
blue (high-beam headlights active).
IMPORTANT: Depending upon local jurisdic-
tional emissions guidelines, vehicles and/or en-
gines that are domiciled outside of the U.S. and
Canada may not be compliant with EPA07,
EPA10, or GHG14 regulations. Noncompliant
vehicles may not be equipped with all of the
lamps shown in
Table 4.1.

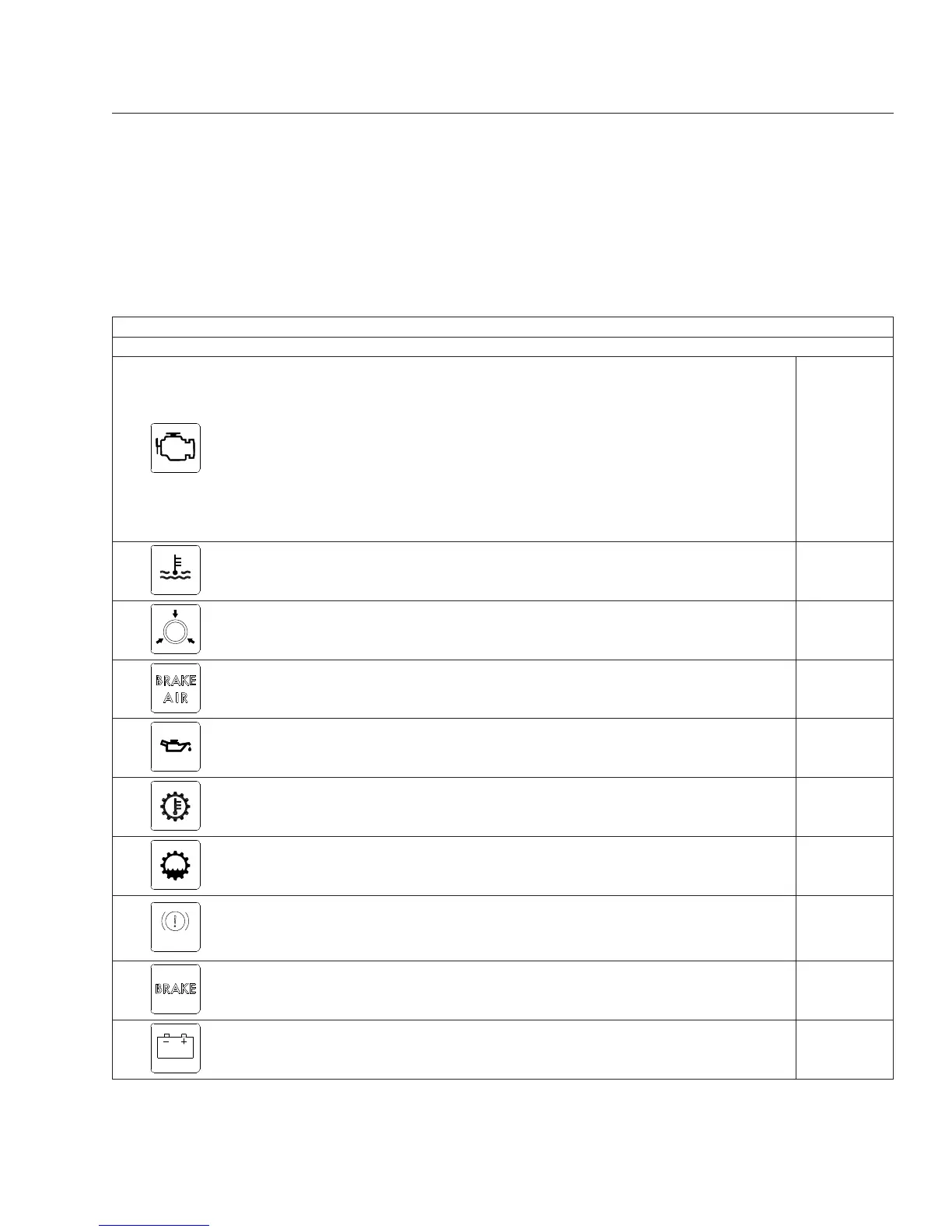

Common Warning and Indicator Lamps
Lamp Description Color
STOP
STOP Engine
*
Indicates a serious fault that requires engine shutdown
immediately. The engine protection system will reduce the
maximum engine torque and speed, and, if the condition
does not improve, will shut down the engine within 30 to 60
seconds.
Safely bring the vehicle to a stop on the side of the road
and shut down the engine as soon as the red light is seen.
If the engine shuts down while the vehicle is in a
hazardous location, turn the key to the OFF position for
a few seconds, then restart the engine and move the
vehicle to a safer location.
Red
High Coolant Temperature
Indicates the coolant temperature is above the maximum
allowable temperature.
Red
Low Air Pressure (EPA07)
Indicates air pressure in the primary or secondary reservoir
has dropped below approximately 70 psi (483 kPa).
Red
Low Air Pressure (EPA10
and Newer)
Indicates air pressure in the primary or secondary reservoir
has dropped below approximately 70 psi (483 kPa).
Red
Low Engine Oil Pressure
Indicates the engine oil pressure is below the minimum
allowable pressure.
Red
Transmission Overheat Indicates high transmission temperature. Red
Transmission Fluid Level
Indicates low transmission fluid level. Safely bring the
vehicle to a stop as soon as possible.
Red
BRAKE
Parking Brake (EPA07)
Indicates the parking brake is engaged, or hydraulic brake
fluid pressure is low. An audible alert activates when the
vehicle is moving over 2 mph (3 km/h) with the parking
brake set.
Red
Parking Brake (EPA10
and Newer)
Indicates the parking brake is engaged. Red
Low Battery Voltage Indicates that battery voltage is 11.9 volts or less. Red
