S90-010 M FRICK
QUANTUM™ COMPRESSOR CONTROL PANEL
Page 28 MAINTENANCE

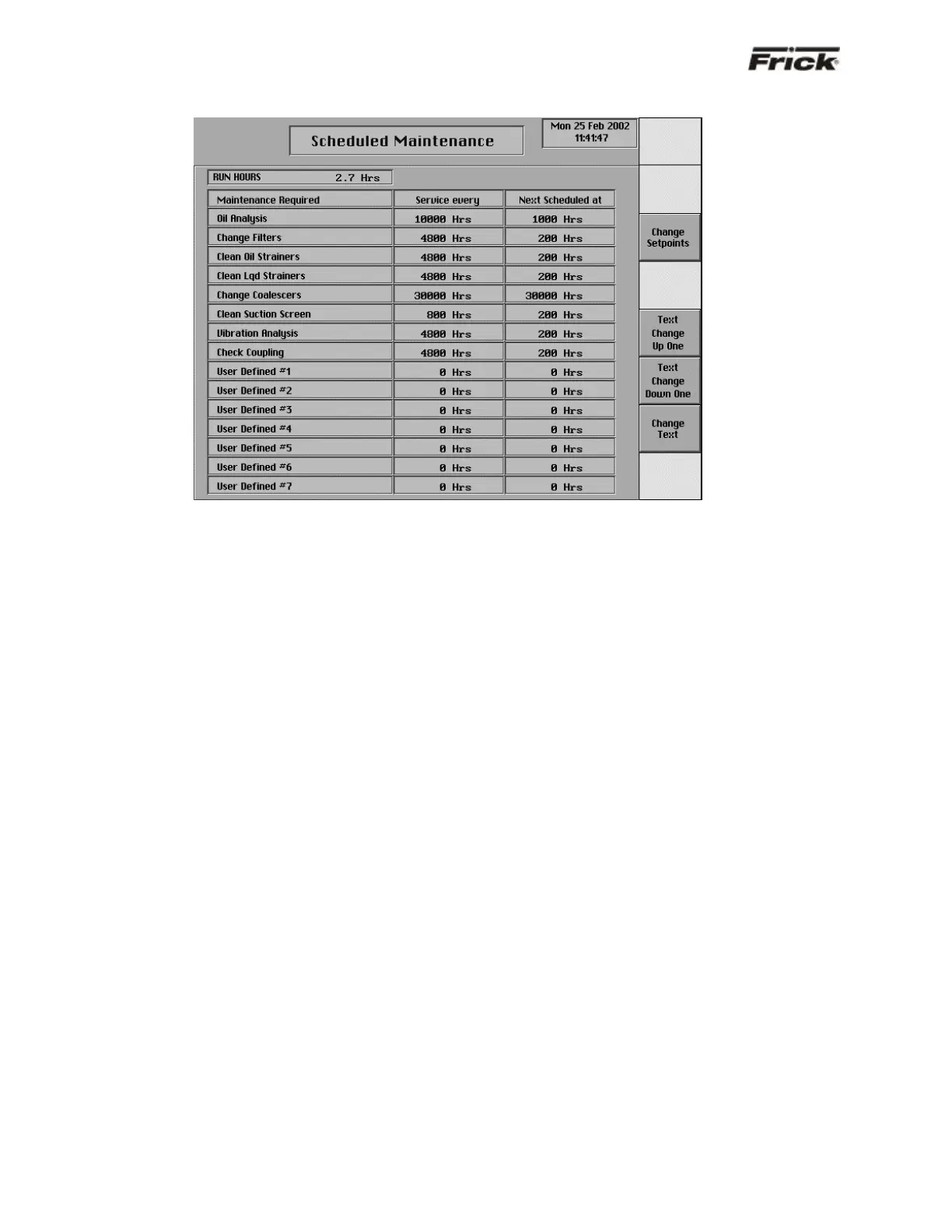

“Scheduled Maintenance” SCREEN
This screen has been provided to help the service
technician and can be accessed from the service screen.
From here, the service technician can view up to fifteen
(15) user definable maintenance schedules. Each of the
schedules may be custom named. This screen is based
upon the Maintenance Schedule that is provided in the
IOM manual for the specific compressor package.
Refer to S90-010 O (Operation Manual) for additional
information about this screen.
