Frick QUANTUM 4 - Quantum 3 Board Settings

S90-010 M FRICK

QUANTUM™ COMPRESSOR CONTROL PANEL
Page 8 MAINTENANCE

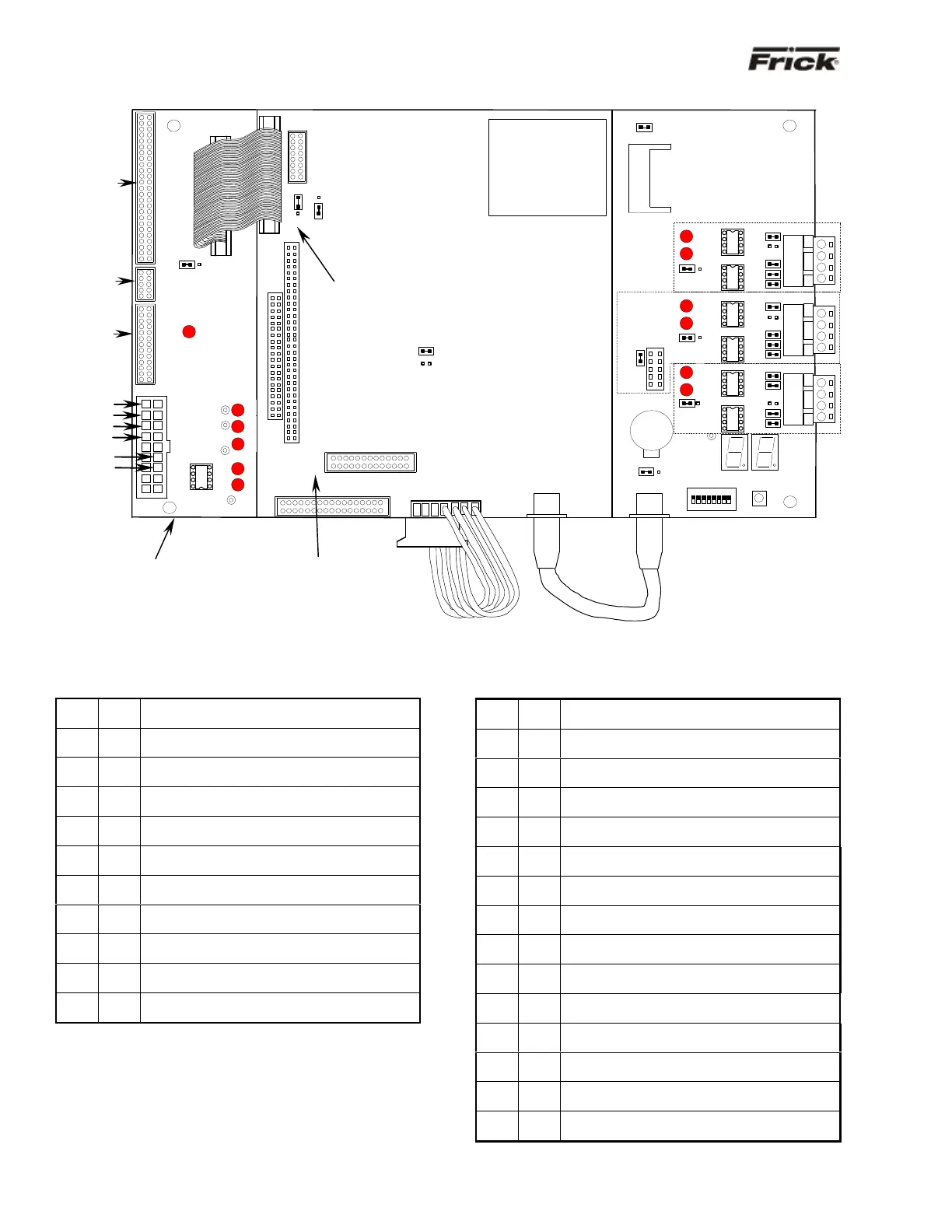

QUANTUM™ 3 CONTROLLER BOARD PICTORIAL
Note: There are duplicate numbers for the links on the processor (smaller) board and the communications (larger) board. If you must make a
change to a jumper (link), then ensure that you modify the correct link.
QUANTUM™ 3 BOARD SETTINGS
Processor Board Jumpers
LK2
A
B *
COM3 IRQ4
COM3 IRQ11
LK3
A
B *
COM4 IRQ3
COM4 IRQ10
LK4
in
out*
RS-422 Terminated
RS-422 Not Terminated
LK5
in*
out
RS-485 Receiver Enabled
RS-485 Receiver Disabled
LK6
in*
out
RS-485 Terminated
RS-485 Not Terminated
LK7
in*
out
Watchdog timer Enabled
Watchdog timer Disabled
LK8
in
out*
2 second Watchdog timer timeout
8 second Watchdog timer timeout
LK10
A
B *
+5V Backlight Voltage (Samsung, NEC, Sharp)
+12V Backlight Voltage (LG Philips Display)
LK11
A
B *
+5V LCD Supply (Samsung, NEC, Sharp)
+3.3V LCD Supply (LG Philips Display)
LK12
in*
out
Bit 1 of 259H “Logic 1” User Application Link
Bit 1 of 259H “Logic 0” User Application Link
LK13
in*
out
Bit 2 of 259H “Logic 1” User Application Link
Bit 2 of 259H “Logic 0” User Application Link
* Standard Setting
Communications Board Jumpers
LK1
in
out*
Pull down COM1
No pull down
RS-422/485 (Rx-/Tx-)
LK2
in
out*
Terminate COM1
No termination
RS-422/485
LK3
in
out*
Pull up COM1
No pull up
RS-422/485 (Rx+/Tx+)
LK4
in
out*
Pull down COM1
No pull down
RS-422 (Tx-)
LK5
in
out*
Pull up COM1
No pull up
RS-422 (Tx+)
LK6
in
out*
Pull down COM2
No pull down
RS-422/485 (Rx-/Tx-)
LK7
in
out*
Terminate COM2
No termination
RS-422/485
LK8
in
out*
Pull up COM2
No pull up
RS-422/485 (Rx+/Tx+)
LK9
in
out*
Pull down COM2
No pull down
RS-422 (Tx-)
LK10
in
out*
Pull up COM2
No pull up
RS-422 (Tx+)
LK16
A *
B
COM1 RS-485
COM1 RS-422
LK17
A *
B
COM2 RS-485
COM2 RS-422
LK19
in*
out
Select RS-422/RS-485 for COM2
Select RS-232 for COM2
LK20
A *
B
Battery Backup Enabled
Battery Backup Disabled (CMOS Cleared)
LK25
in*
out
Select Compact Flash card as master device
Select Compact Flash card as slave device
* Standard Setting
COM2
-12V
+5V
TP3
+5
TP4
+12
TP5
-12
RX4
TX4
TP6
GND
+12
Power-I/O
Com. Cable
+12VDC
-12VDC
GND
-RX/-TX
+RX/+TX
LK11
B
A
LK10
B
A
KB
This assembly is shipped with
LK11 set to position “B”. If a
Samsung, NEC, or Sharp
display is being used, then
LK11 must be changed to
position “A”.
Keypad
Cable
LK7
LK8
LCD
Display
Cable
LCD
Backlight
Cable
LK24
B
A
HEAT SINK
COM2
RS232
LK19
FLASH
MEMORY
SOCKET
SW
Dip Switch
Pack
BAT1
SW2
ON
1
2
3
4
5
6
7
8
LK20
B
A
P7
P7
TP1
GND
COM3
1
2
3
4
RS-
422
RS-
485
LK12
LK11
LK13
LK14
LK15
TX3
RX3
LK18
B
A
B
A
1
2
3
4
RS-
422
RS-
485
LK6
LK8
LK9
LK10
LK7
TX2
RX2
LK17
COM1
LK1
LK2
LK3
LK4
LK5
1
2
3
4
RS-
422
RS-
485
LK16
B
A
TX1
RX1
LK25
+5VDC
Communications Board
(large bottom board)
Processor Board
(small top board)
