FRICK

QUANTUM™ COMPRESSOR CONTROL PANEL S90-010 M
MAINTENANCE Page 35

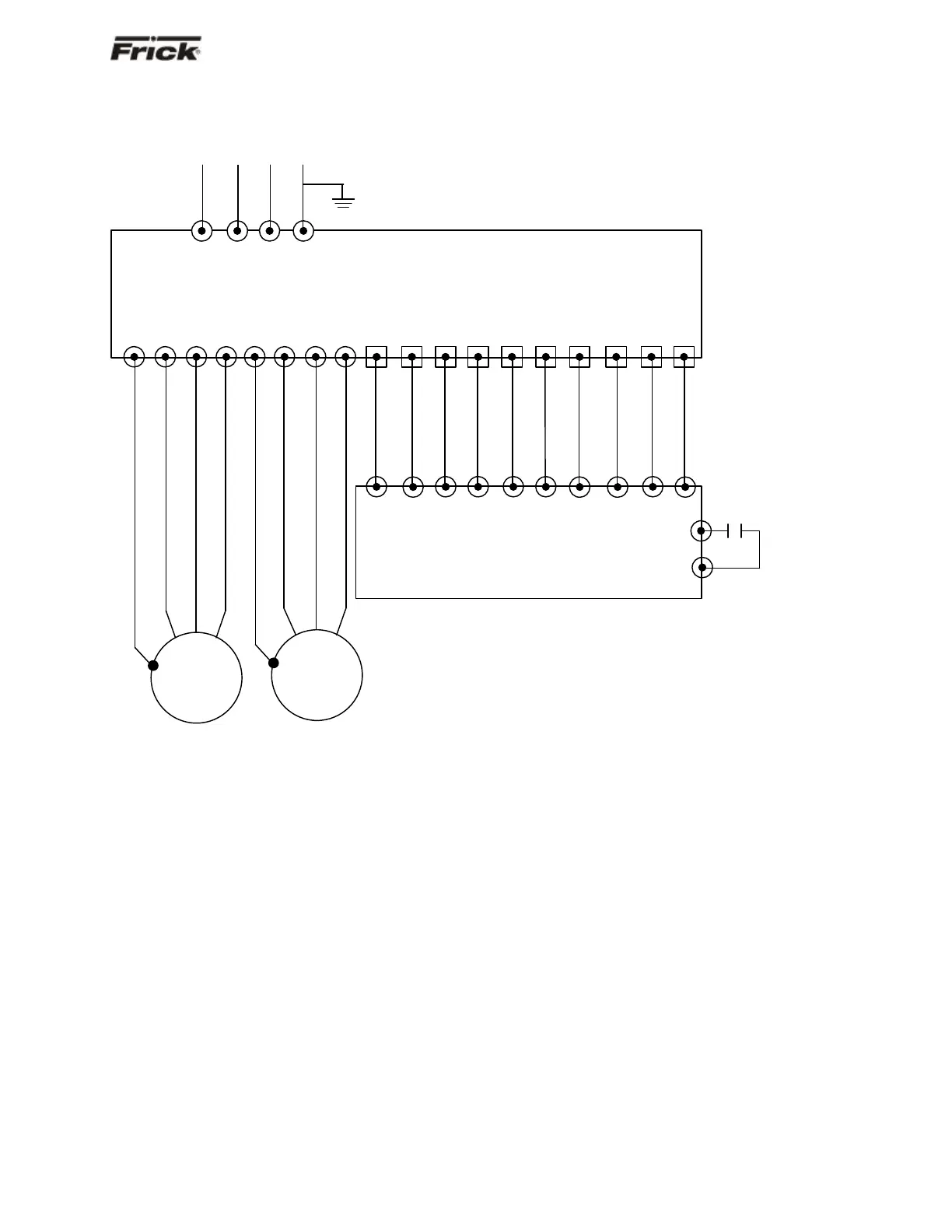

POINT-TO-POINT FIELD WIRING DIAGRAM
GND T1 T2 T3 GND T1 T2 T3 GND 20 19 18 8 5 4 3 2 1
OIL PUMP
MOTOR
COMP
MOTOR
T1 T2 T3 GND
CONSULT STARTER AND MOTOR WIRING DIAGRAMS
FOR EXACT WIRING CONFIGURATION
FRICK SUPPLIED COMBINATION
STARTER PACKAGE
Quantum™
RWBII
RXB PLUS
RDB PLUS
RXF
GND
FRICK MICRO ENCLOSURE
20
19 18 8 5
4 3
2
1
NOTES:
1. REFER TO MOTOR NAMEPLATE
FOR CORRECT MOTOR
CONNECTION.
2. SEPAERATE CONDUIT RUNS
FOR CONTROL VOLTAGE
WIRING AND MOTOR
CONNECTION WIRING.
3. CONDUIT GROUNDS ARE NOT
ACCEPTABLE.
4. ALL WIRING MUST BE PER
LATEST EDITION OF THE NEC
AND LOCAL CODES.
5. ALL CONTROL VOLTAGE WIRING
TO BE 14 AWG STRANDED
COPPER WIRE.
HI-LEVEL CUTOUT
AND/OR OTHER FIELD
SAFETY CUTOUTS AS
REQUIRED.
3 PHASE LINE
GND
