S90-010 M FRICK
QUANTUM™ COMPRESSOR CONTROL PANEL
Page 80 MAINTENANCE

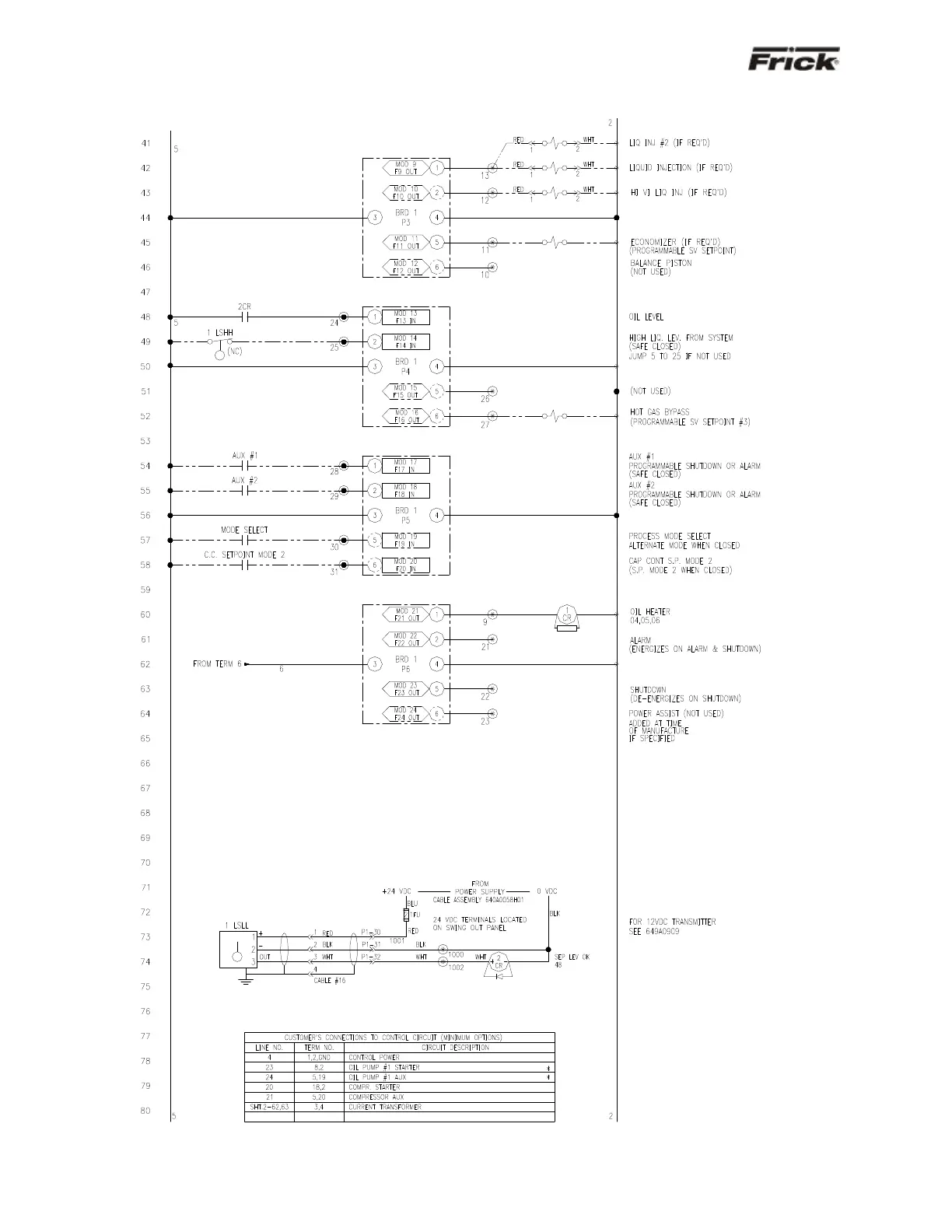

WIRING DIAGRAM - RWF (Sheet 2 of 5)
This drawing appears here for reference purposes only, and is subject to change without notice. When installing, or servicing
equipment, always refer to the actual drawings that are included with the control panel for the latest information.
To Next Page
