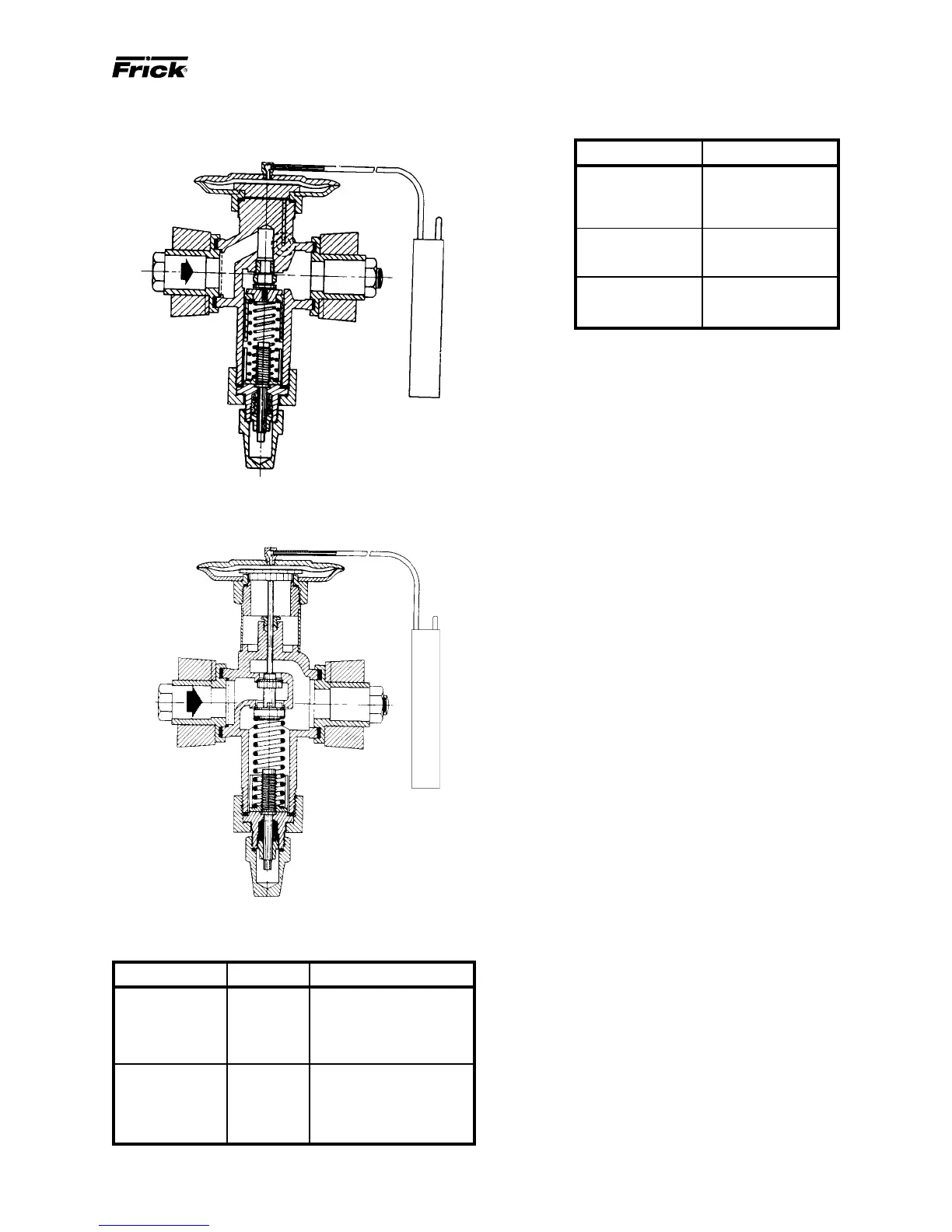

TYPE M THERMAL EXPANSION VALVE (12 TO 34 TONS)
R-22
R-22 TX VALVE SIZES
TYPE V THERMAL EXPANSION VALVE (52 TO 100 TONS)
R-22
R-717 TX VALVE SIZES
TX VALVE MODE PORT SIZE DISCHARGE TUBE SIZE
DAE - 1 1/16 1/32
DAE - 2 1/16 1/16
DAE - 5 7/64 5/64
DAE - 10 3/16 7/64
DAE - 15 3/16 5/32
AAE - 20 5/16 1/8
AAE - 30 5/16 5/32
AAE - 50 3/8 3/16
AAE - 75 3/8 NONE
AAE - 100 7/16 NONE
TX VALVE MODE FPT CONNECTION
HVE - 2-/1/2 1/2
HVE - 5-1/2 1/2
HVE - 11 1/2
HVE - 16 1/2
MVE - 12 1
MVE - 21 1
MVE - 34 1
VVE - 52 1
VVE - 70 1
VVE - 100 1
JORDAN TEMPERATURE REGULATOR
VALVE
To increase or decrease the discharge temperature/oil tem-
perature, adjust the knurled nut located on the actuator stem
of the Jordan Temperature regulator valve. The tempera-
ture is allowed to increase as the nut is turned higher on the
stem and decreases as the nut is turned lower.
