Power connection and wiring | 2
B1820023_en | Service handbook Lambdatronic H 3200 - T4e 15

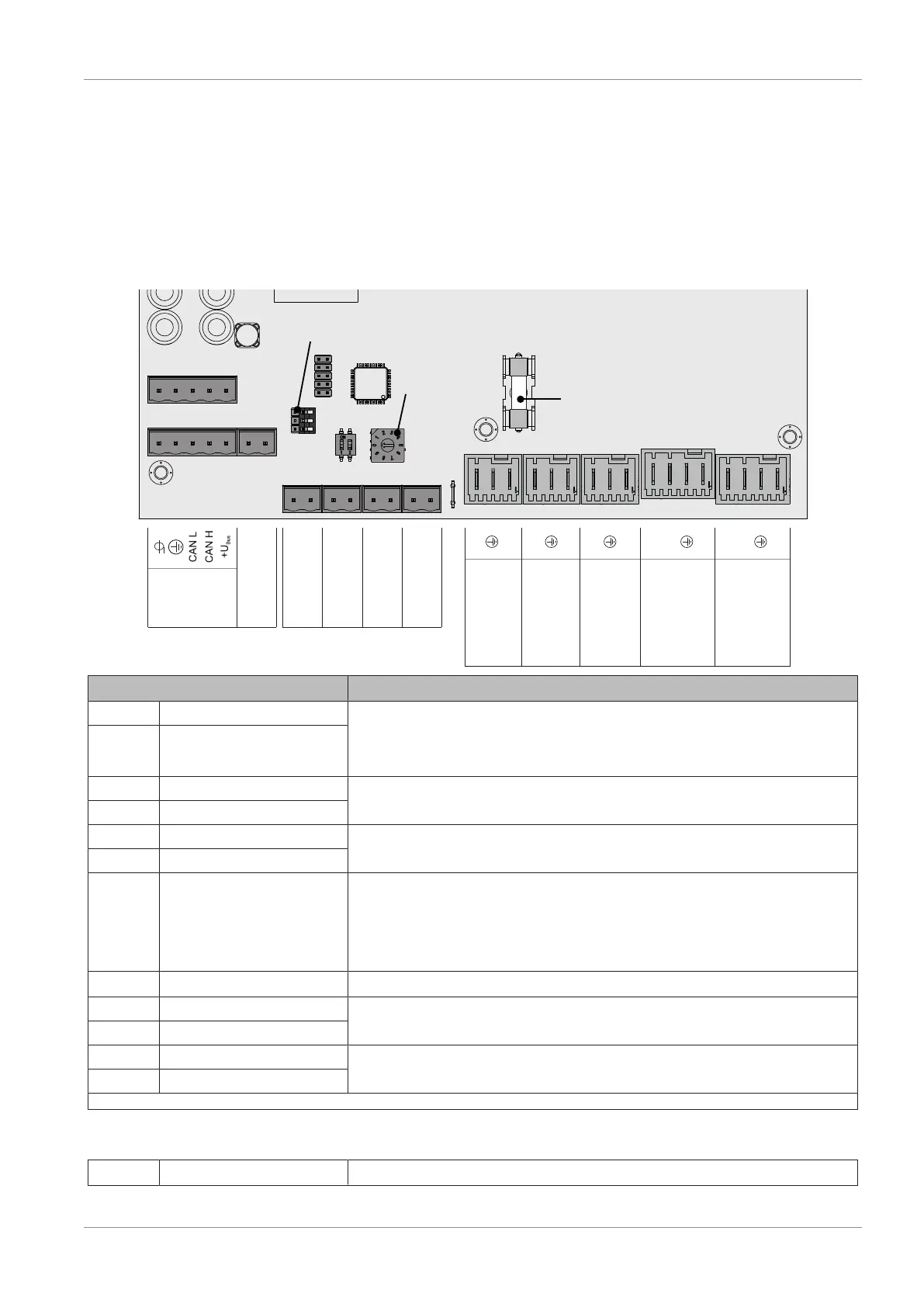

2.2 Expansion modules
2.2.1 Heating circuit module
Two heating circuits can be controlled as standard with the core module.
To add further heating circuits, the heating circuit module boards must be expanded. Expansion can include up
to eight heating circuit modules (addresses 0 to 7). A total of up to 18 heating circuits can be controlled. It is
important to ensure that the module address is set correctly.
Ü "Setting the module address" [}31]
N
N
L
L
HE-09
(Heizkreispumpe 1)
HE-08
(Netz)
HE-01
HE-02
(2x Bus)
HE-03
(Vorlauffühler 1)
HE-04
(Vorlauffühler 2)
HE-05
(Raumfühler 1)
HE-06
(Raumfühler 2)
HE-07
(Fühler 1)
HE-10
(Heizkreispumpe 2)
HE-11
(Mischer 1)
HE-12
(Mischer 2)
N
L
N
ZU
AUF
N
ZU
AUF
FRHEM19
Heating circuit module
Module address
End jumper
Mains fuse
Connection / Name Note
HE-01 BUS
Connection with cable – LIYCY paired 2x2x0.5;
Ü "Connecting the bus cable" [}29]
Caution! CAN L and CAN H must not be connected to +U
BUS
!
HE-02 BUS
HE-03 Flow temperature sensor 1
Connection cable
1)
2 x 0.75 mm
2
;
HE-04 Flow temperature sensor 2
HE-05 Room temperature sensor 1
Connection cable
1)
2 x 0.75 mm
2
; shielded if cable length greater than 25 m
HE-06 Room temperature sensor 2
HE-07 Sensor 1
Connection cable
1)
2 x 0.75 mm
2
;
Connection of the outside temperature sensor if it is not connected to the core
module. The address of the heating circuit module to which the outside
temperature sensor is connected must be set in the “Heating – General settings”
menu. Ü "Heating - General settings" [}47]
HE-08 Mains
Connection cable
1)
3 x 1.5 mm
2
, fuse 10A
HE-09 Heating circuit pump 1
Connection cable
1)
3 x 1.5 mm
2
, max. 2.5A / 230V / 500W
HE-10 Heating circuit pump 2
HE-11 Mixing valve 1
Connection cable
1)
4 x 0.75 mm
2
, max. 0.15A / 230V
HE-12 Mixing valve 2
1. YMM to ÖVE-K41-5 or H05VV-F to DIN VDE 0881-5
Fuses
F2 6.3 AT
HE-09, HE-10, HE-11, HE-12
