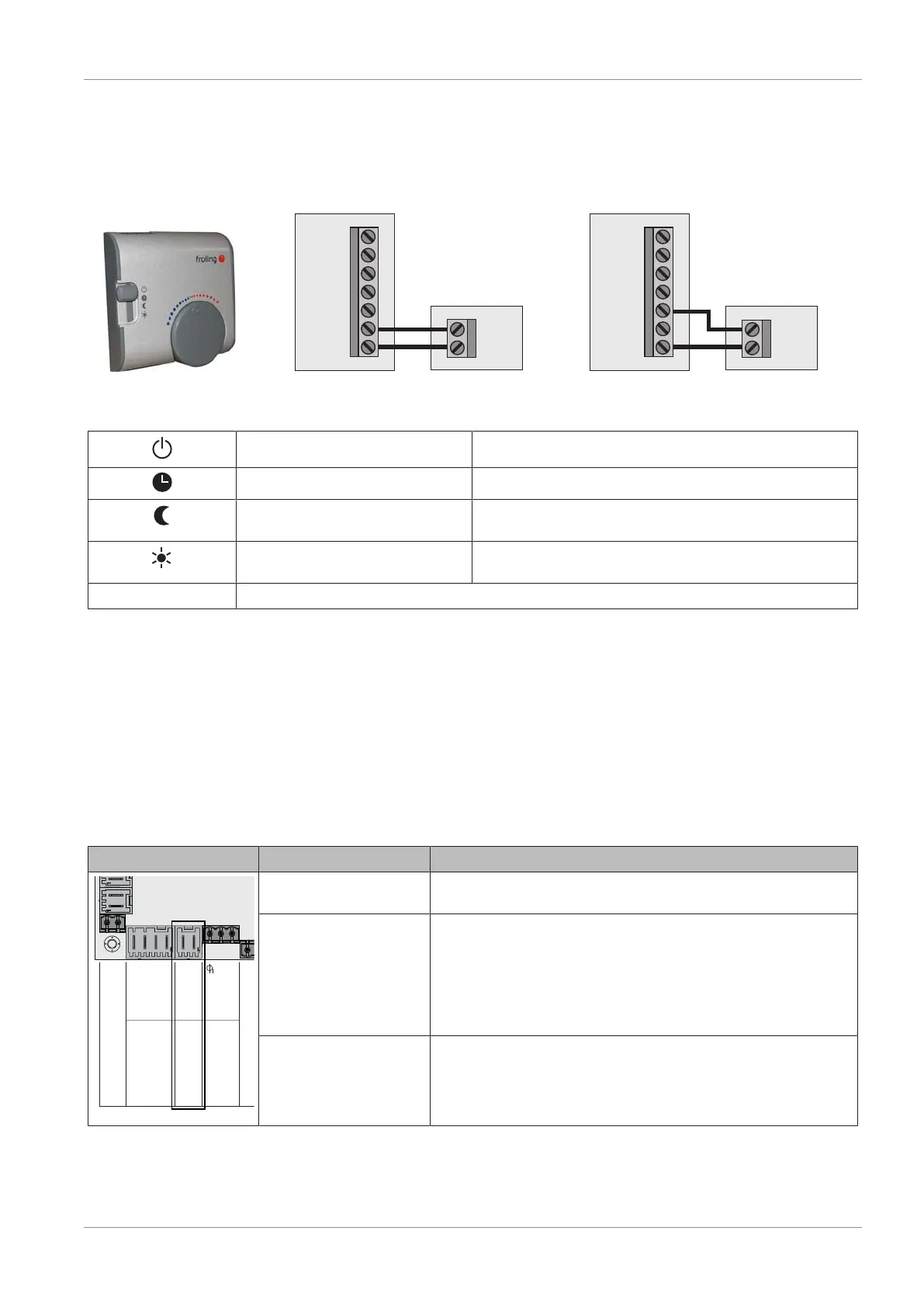

2.1.4 FRA room temperature sensor
In addition to recording the current room temperature, the Froling FRA room temperature sensor also has a
handwheel to adjust the required room temperature and a slide switch to set the mode for the heating circuit.
AUS
UHR
NACHT
TAG
FV
RFFV
COM
Raumfühler FRA
RF 1/2
Kernmodul S/P/H 3200
AUS
UHR
NACHT
TAG
FV
RFFV
COM
Raumfühler FRA
RF 1/2
Kernmodul S/P/H 3200
affecting room: not affecting room:
Possible positions of the mode switch:
Boiler off
Heating circuit deactivated, only frost protection!
Automatic mode
Heating and setback phases according to the set times
Setback mode
Ignores the heating phases and continuously controls the
room temperature to the temperature set in setback mode
Party switch
Ignores the setback phases and continuously controls the
room temperature to the temperature set in heating mode
Handwheel…
Allows you to adjust the temperature by +/- 3°C
IMPORTANT! Refer to the supplied assembly instructions for more detailed explanations on connecting
and operating the FRA room temperature sensor.
2.1.5 Boiler enable contact
When commissioning the boiler using the settings wizard, the boiler release contact function (“How is the
boiler release contact on the core module being used?”) is called up to enable the optional
analysis of an external floating release or start contact. The following functions are possible depending on the
setting and electrical connection:
Connection position Setting Description
6,3 AT
sw +
gr -
IN
+24V
grün-gelb
rot +
blau -
ws 13VDC
NZ
COM
PZ
S
HE-
HE+
ZU
AUF
P2
5V/P3
ZU
AUF
P2
5V/P3
ws 13VDC
KM-35
(Betriebssignal)
KM-02
(Bus)
KM-01
(Bus)
KM-04
(COM 2)
KM-06
(Breitbandsonde)
KM-09
(Verriegelung)
KM-10
(STB)
KM-11
(NOT-HALT)
KM-07
(siehe Tabelle ...)
KM-08
(siehe Tabelle ...)
KM-05
(COM 1)
KM-03
(Bus)
KM-36
(Optionsmodul)
L N
PEPEPE
KM-34
(Heizkreispumpe 0
oder Brennerrelais)
KM-33
(Heizkreispumpe 1)
KM-32
(Heizkreispumpe 2)
KM-31
(Mischer 1)
KM-30
(Mischer 2)
KM-29
(Netz)
KM-28
(Pumpe 1)
KM-27
(Saugzug)
FRKEM29
L1
N
N
L
N
L
N
L
N
LV
LV
L
Sig
+5V
N
L
N
AUF
ZU
N
AUF
ZU
KM-26 (PWM / 0-10V Pumpe 1) KM-25 (Kesselfühler) KM-24 (Rücklauffühler) KM-23 (Vorlauffühler 1) KM-22 (Vorlauffühler 2) KM-21 (Raumfühler 1) KM-20 (Raumfühler 2) KM-19 (Außenfühler) KM-18 (Fühler 1) KM-17 (Fühler 2) KM-16 (Türkontaktschalter)
KM-15
(Abgasfühler)
KM-14
(Kesselfreigabe)
KM-13
(Lambdasonde)
KM-12 (Durchflussmesser)
not in use No effect on boiler operation (contact must not be clamped/
bridged).
Release/disable boiler As long as the boiler release contact is closed, the boiler controller
operates according to the specified parameters (mode, time
window, etc.). If the boiler release contact is opened, the boiler is
no longer released and follows the shutdown procedure. As long as
the boiler release contact is open, heating requirements are
ignored. (e.g. flue gas thermostat of a supply boiler, house
distribution box).
Extra heating As long as the boiler release contact is open, the boiler controller
operates according to the specified parameters. If the boiler release
contact is closed, the boiler starts in continuous load operation (e.g.
heat requirements of a heating fan).
