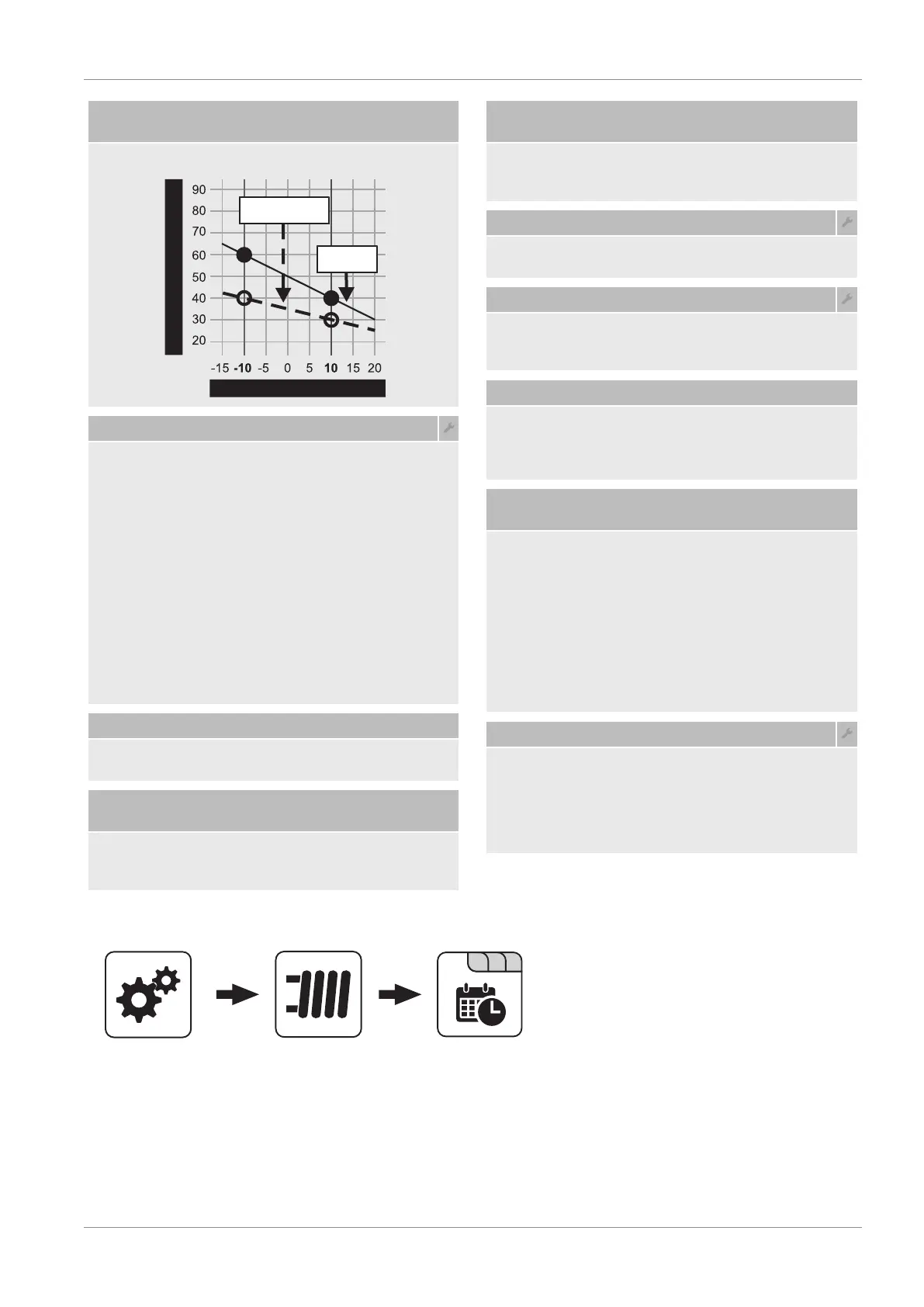

Parameters overview | 4
B1820023_en | Service handbook Lambdatronic H 3200 - T4e 43
Flow temperature SP at outside air temperature of
-10°C
Second setting point for definition of heating curve.
Outside air temperature
Flow temperature
Example for
underfloor heating
Example for
radiators
Controller gain at room temperature Kp-Rm
Prerequisite: Heating circuit used in conjunction with
remote control
Influencing factor of room temperature on the flow
temperature of the heating circuit. If there is a deviation in
the room temperature of +/- 1°C, the set value of the flow
temperature is corrected by this value. (Only in
conjunction with remote control)
Recommended values:
▪ Underfloor heating: 2-3
▪ Radiators (new build): 4-5
▪ Radiators (old build): 6-7
NOTICE!Observe external influences on the remote
control!
Reduction of flow temperature in setback mode
The flow temperature is reduced by this value during
setback mode.
External temperature, at which heating circuit pump
switches off in heating mode
If the outside air temperature exceeds this value during
heating, the heating circuit pumps and mixing valve are
deactivated.
External temperature, at which heating circuit pump
switches off in setback mode
If the outside air temperature falls below this value in
setback mode, the heating circuit pumps and mixing valve
are activated.
Maximum heating circuit flow temp
Maximum temperature for limiting outfeed temperature at
which the heating circuit is supplied.
Maximum DHW tank flow temp
If DHW tank 1 is supplied directly from heating circuit 1,
you can limit the maximum flow temperature for the
duration of DHW tank loading.
Frost protection temperature
If the room temperature or the flow temperature is lower
than the set value, the heating circuit pump will be
switched on and the heating circuit mixer keeps to the
maximum heating circuit flow temperature that is set.
From which temperature at top buffer tank should the
overheating protection be activated
If the temperature at top buffer tank exceeds the set
value, the heating circuit is activated regardless of mode
(boiler, remote control) and set heating times. The flow
temperature is controlled to the value set in the parameter
“Flow temperature SP at outside air
temperature of -10°C”. The function will remain
active until the value falls below 2°C.
Recommendation: The overheating protection should be
assigned to a high temperature heating circuit (e.g.
radiators).
Deviation of room temperature sensor
If a deviation of the room temperature is determined from
the evaluated value to the displayed value, the evaluation
of the room temperature sensor can be adjusted with this
parameter. The temperature measured by the sensor is
increased (positive value) or reduced (negative value) by
the pre-set value.
4.1.3 Heating - Times
System menu Heating
Ü "Setting times" [}106]
