Power connection and wiring | 2
B1820023_en | Service handbook Lambdatronic H 3200 - T4e 23
F2 6.3 AT
HG-09, HG-10, HG-15
F4, F5, F7 2.5 AT
HG-17

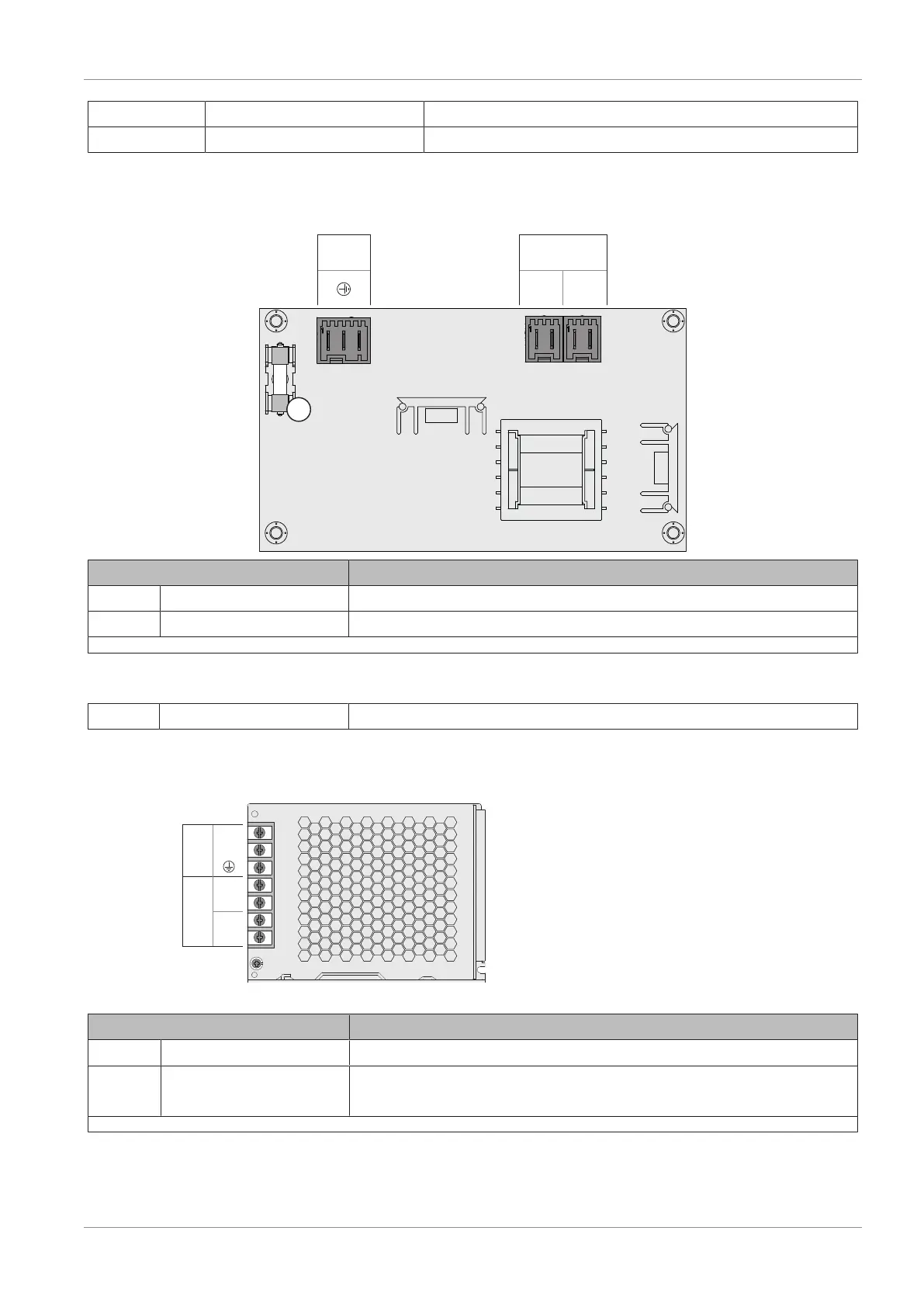

2.2.4 Plug power pack FRSNT17
The plug power pack is designed to supply all of the system consumers with 24 VDC:
FRSNT17
SN-01
(N
etz)
SN-02
(24V-Ausgang)
N
+24V
GND
+24V
GND
L
F1
Plug power pack
Connection / Name Note
SN-01 Mains
Connection cable
1)
3 x 1.5 mm²
SN-02 24 V power supply
Connection cable
1)
2 x 1.0 mm², max. 2A
1. YMM as per ÖVE-K41-5 or H05VV-F as per DIN VDE 0881-5
Fuses
F1 2 AT
SN-02
2.2.5 Plug power pack Meanwell LRS-100-24
LRS-01
(Netz)
LRS-02
(24V-Ausgang)
N
+24V
GND
+24V
GND
L
Connection / Name Note
LRS-01 Mains
Connection cable
1)
3 x 1.5 mm²
LRS-02 24 V power supply
2 outputs, max. 4.5A
Connection cable
1)
2 x 1.0 mm²
1. YMM as per ÖVE-K41-5 or H05VV-F as per DIN VDE 0881-5
