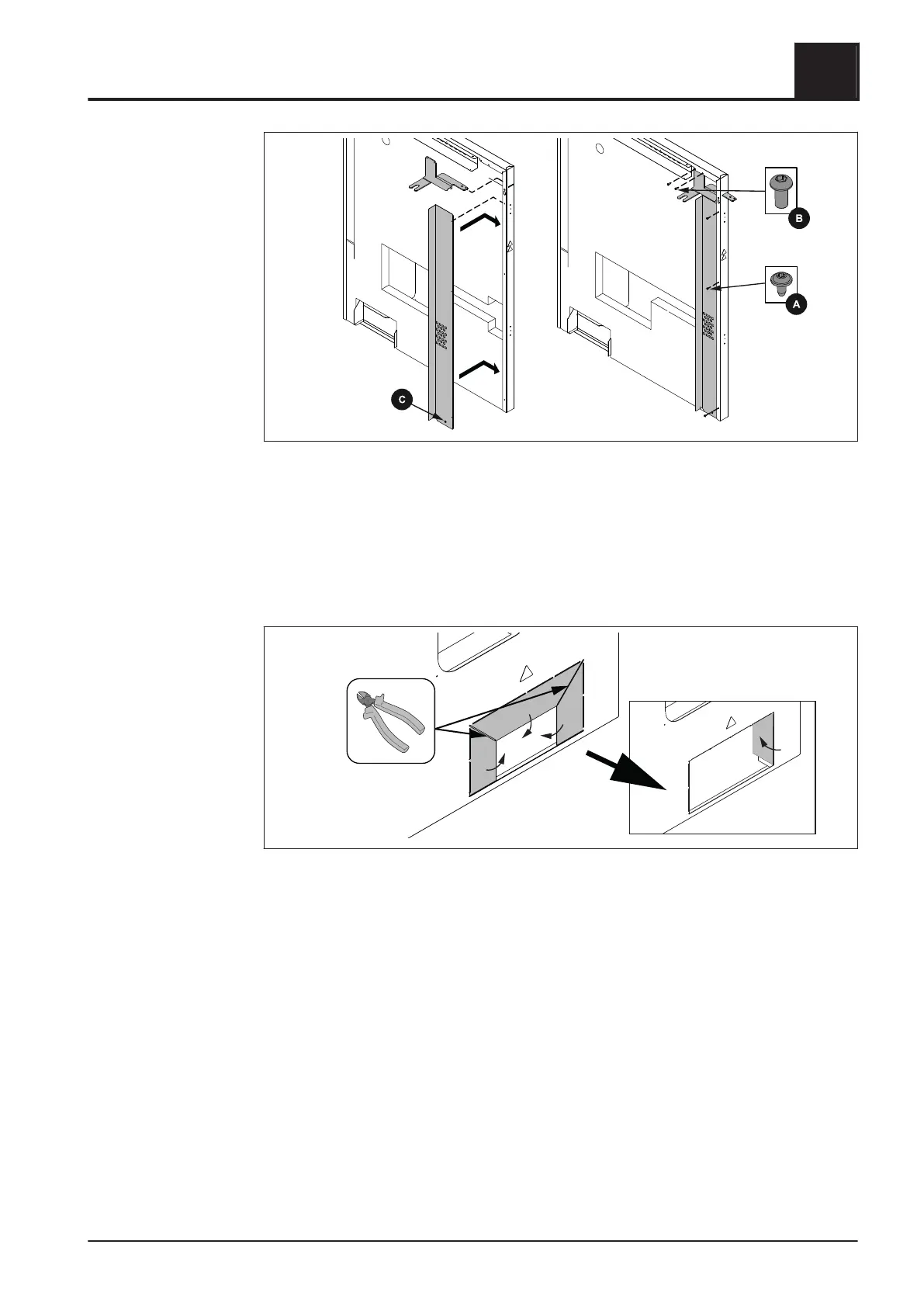

❒ Inset the two L-shaped insulation cover plates at the insulating side panels at left
and right and secure them with three thread forming screws (A) each
➥ Insert the cover plates such that the rivet (C) is at the bottom!
❒
Insert the insulation mounting brackets at both insulating side panels and secure
them with the two top thread forming screws (B)
➥ At the front, the bracket will be secured later when the upper spacer plate is
inserted!
❒ Cut the perforated flaps for the cleanout opening on both sides and bend them
inward
➥ Caution: Bend the flaps > 100° inward!
Assembly
3
Installing the boiler
Montageanleitung S3 Turbo | M1870119_en-us 51
