2 Technology

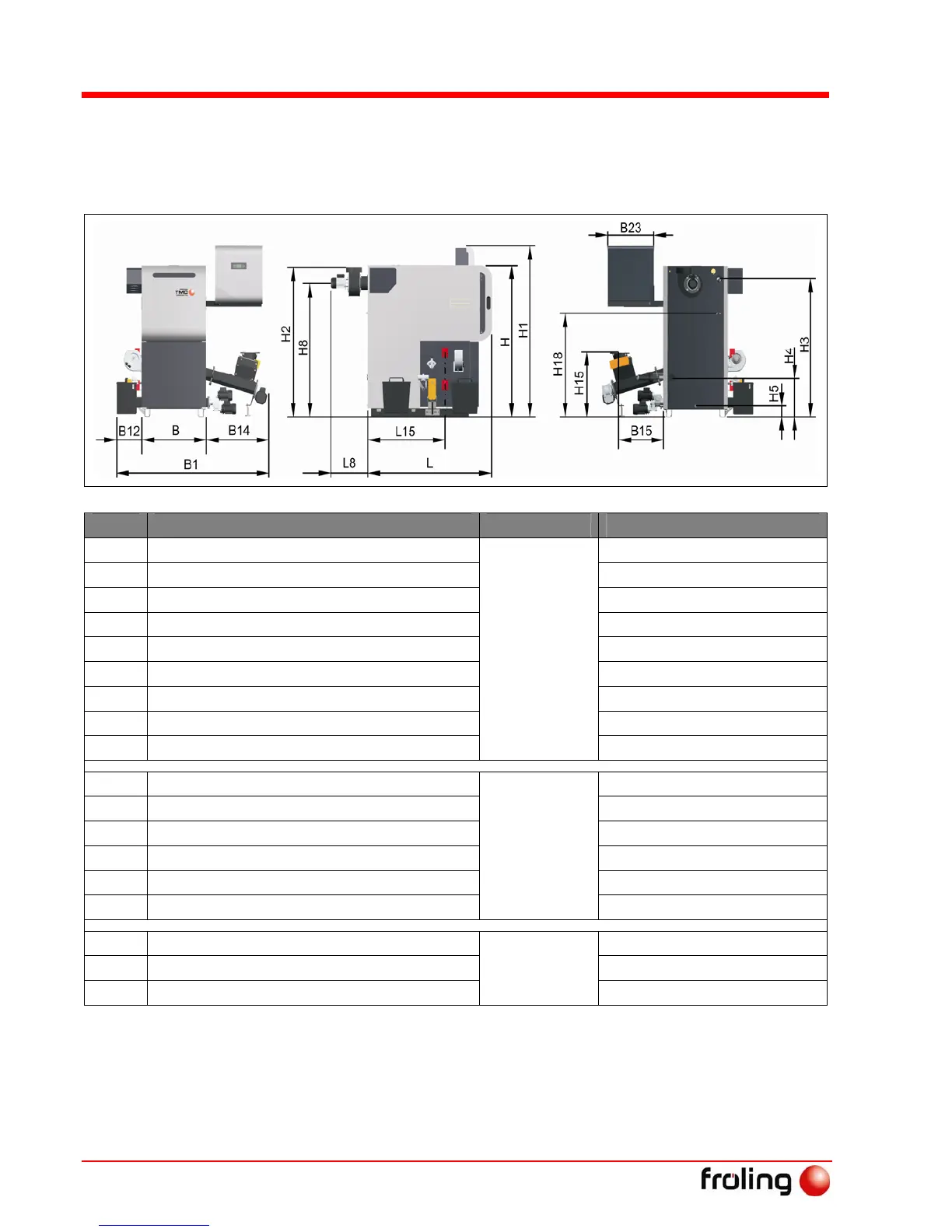

2.1 Turbomatic TMC 70-110 dimensions
Pos. Description Unit TMC 70 / 85 / 100
H Height of boiler 1740
H1 Overall height 1980
H2 Height, flue pipe connection 1720
H3 Height, outfeed connection 1595
H4 Height, return connection 450
H5 Height, drain 125
H8 Height, induced draught fan connection 1540
H15 Height, gravity shaft connection 730
H18 Height, safety battery connection
mm
1200
B Width of boiler 820
B1 Overall width 2040
B12 Width, ash container 325
B14 Width, stoker unit 895
B15 Width, gravity shaft 550
B23 Width, switch cabinet
mm
600
L Length, boiler 1580
L8 Length, induced draught fan 470
L15 Length to gravity shaft connection left / right
mm
965 / 1015
