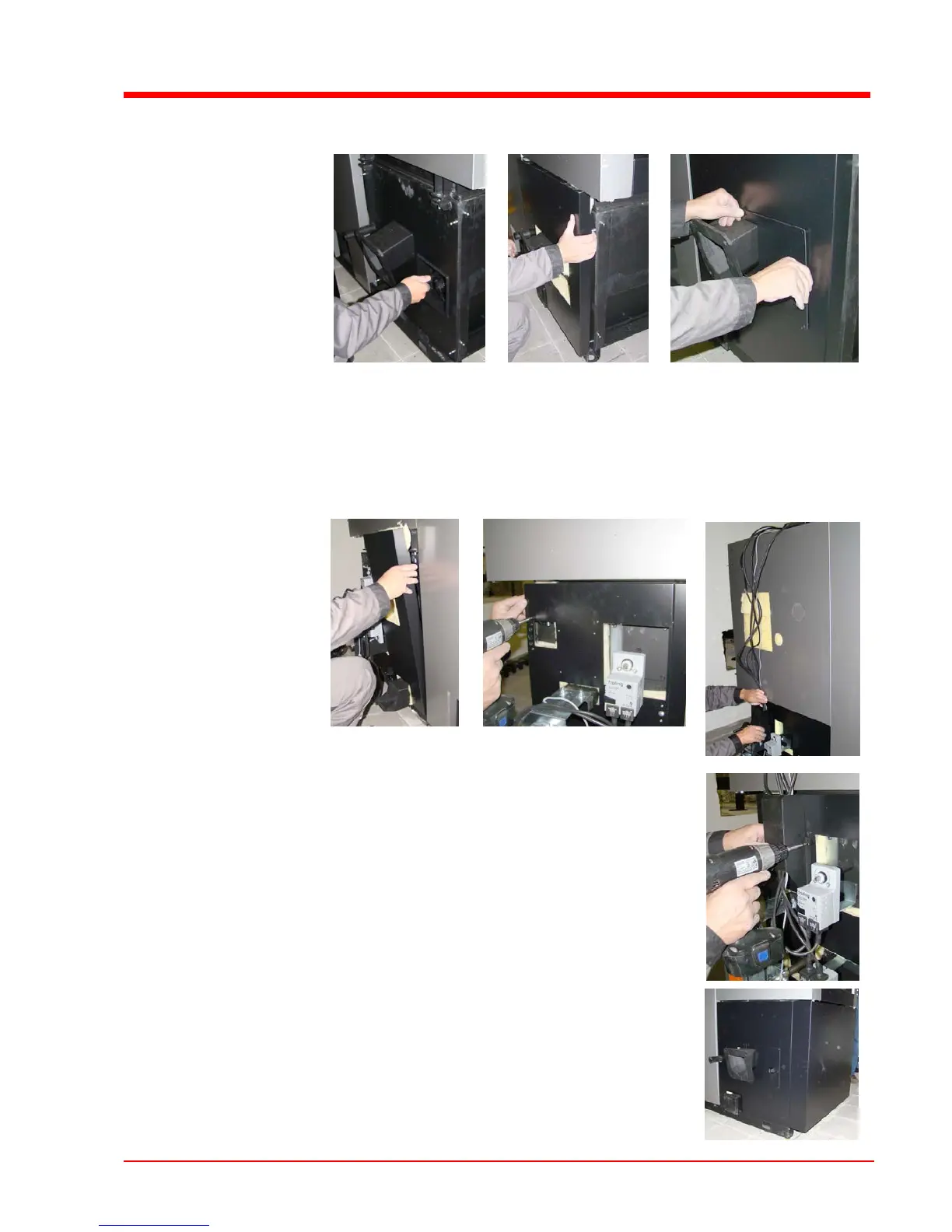

Insulation - installing the chamber
U Remove the protective cap from the ignition pipe
U Put on the insulation on the stoker side
 Ensure that the fitted screws engage correctly in the spring
shackles.
U Fit the cover plate at the stoker duct with self-tapping screws
U Put on the insulation on the grate shaft side
 Ensure that the fitted screws engage
correctly in the spring shackles.
U Fit smaller insulation above the actuators
with self-tapping screws
U Bunch the cables of the units together, pull
them upwards and lay them on the boiler
U Fit the cable cover with self-tapping screws
U Attach the front insulation
 Ensure that the fitted screws engage
correctly in the spring shackles.
