Installation
Assembly work
Fröling Heizkessel- und Behälterbau Ges.m.b.H, Industriestrasse 12, A-4710 Grieskirchen Page 29
Tel +43 (0) 7248 606-0 Fax +43 (0) 7248 606-600 info@froeling.com www.froeling.com
M1020008_en
3

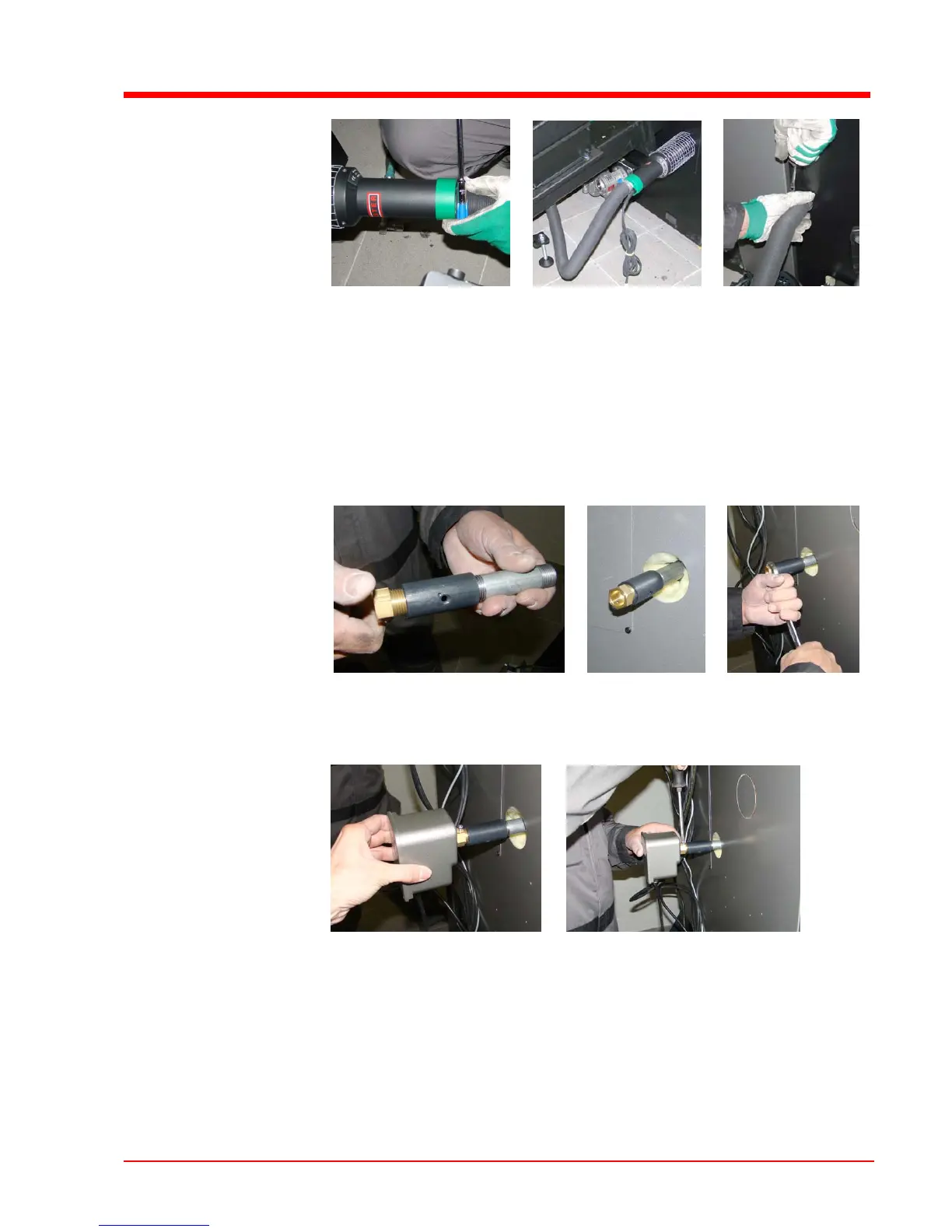

U Fit the flushing hose to the igniter with a hose clip
U Lay the flushing hose to the connection at the chamber (left, next
to the stoker connection) and fix with a hose clip
3.3.10 Installing the combustion chamber overpressure sensor
If combined with a pellet suction system the combustion chamber
overpressure sensor is installed in the stoker duct.
U Fit the brass bushing and extension pipe together as shown and
install above the combustion air fan
U Insert the combustion chamber overpressure sensor into the
extension and fix to the brass bushing with a locking screw
