Installation
Assembly work
Fröling Heizkessel- und Behälterbau Ges.m.b.H, Industriestrasse 12, A-4710 Grieskirchen Page 19
Tel +43 (0) 7248 606-0 Fax +43 (0) 7248 606-600 info@froeling.com www.froeling.com
M1020008_en
3

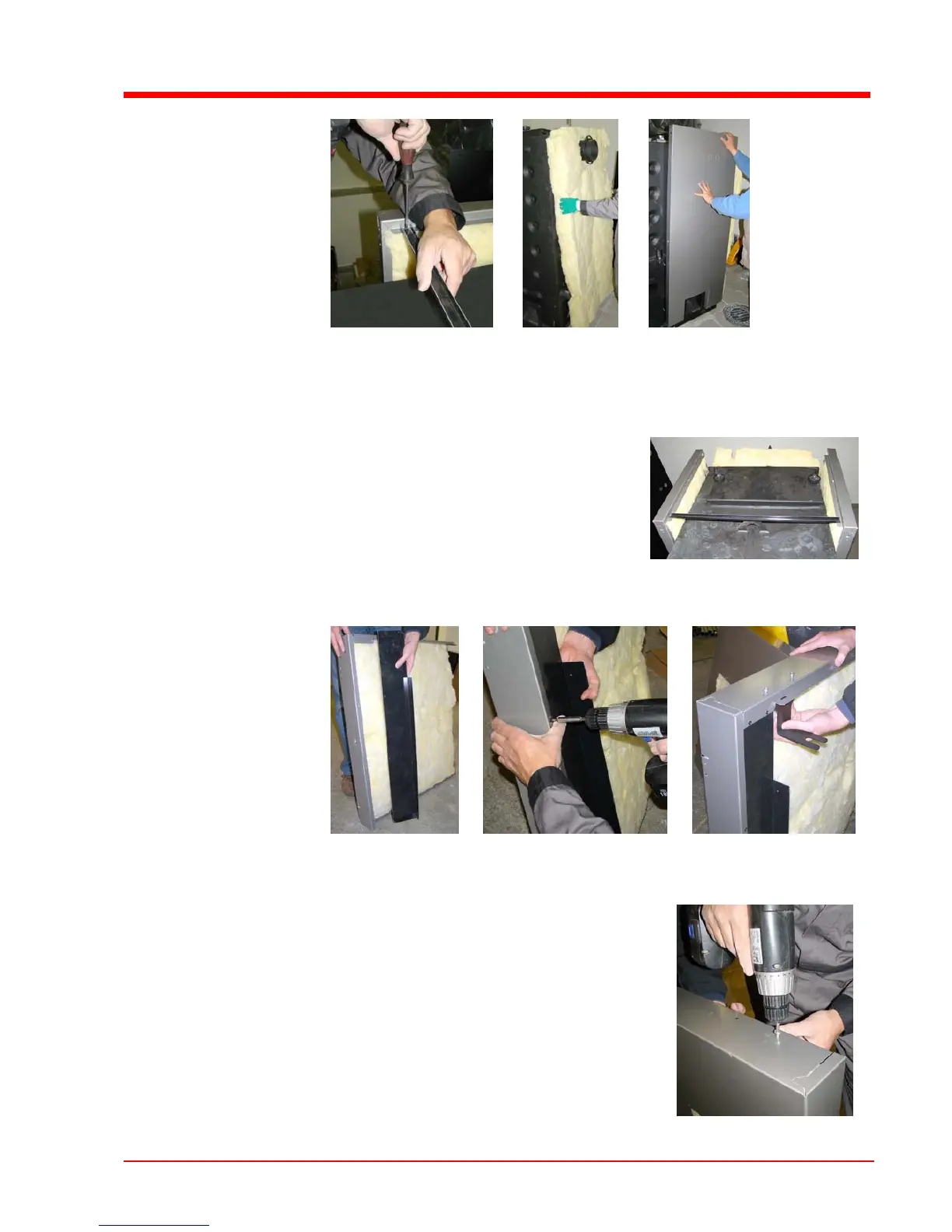

U Fit the connection profile on the left side panel with a self-tapping
screw
U Put on the back heat insulation mat
U Put the side panel on at the back on the right by the insulation
mounting brackets at the bottom
U Push the side panel onto the boiler
and screw to the connecting profile
with a self-tapping screw
Installing the front insulating side panels
U Insert the left insulation cover plate to the left side panel at the
front as shown and fix with self-tapping screws
U Position the top insulation mounting
bracket at the holes on the top side
U Secure the bracket using 2 thread
forming screws M6x12
