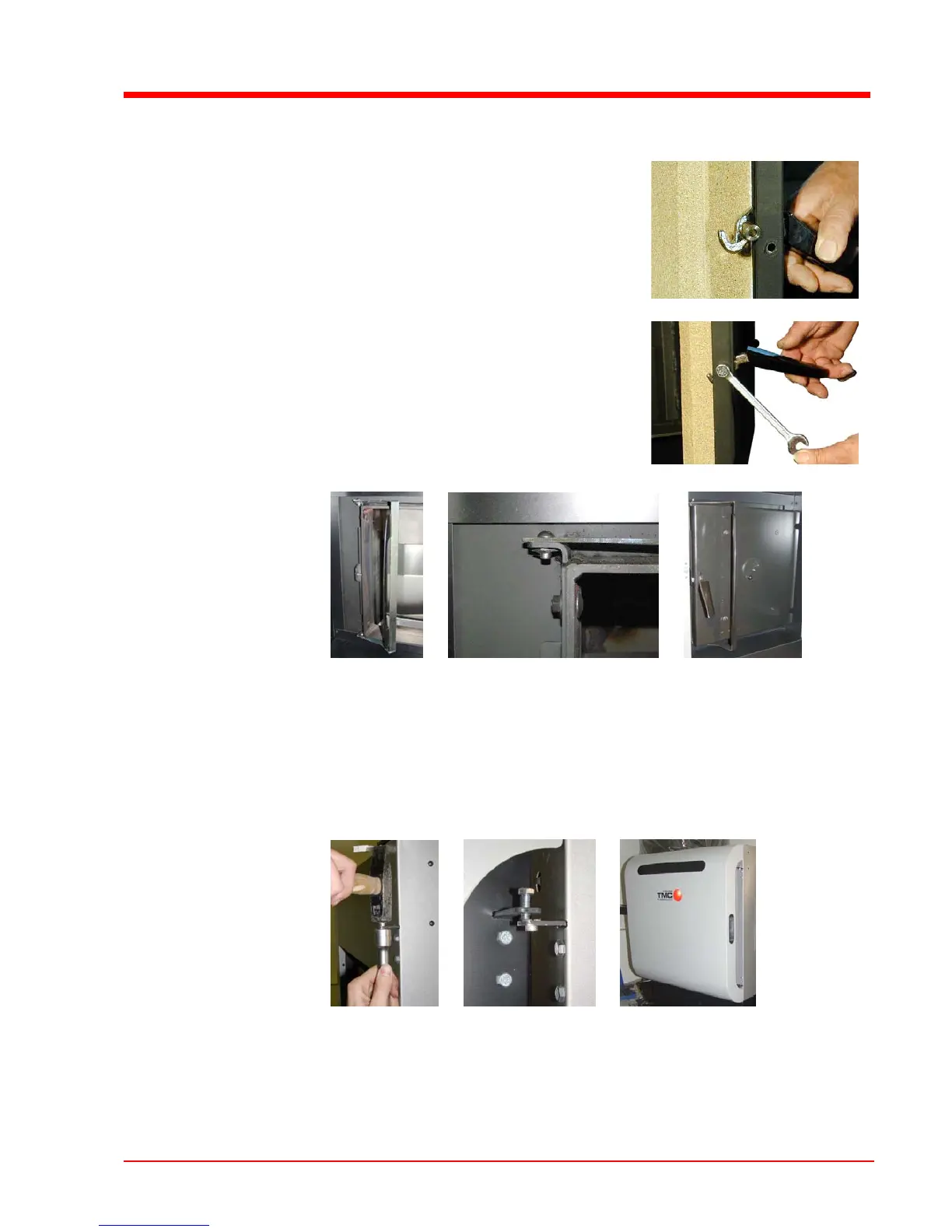

3.3.12 Completing the combustion chamber door
U Insert flange bushing into door
handle
U Position the door handle in the hole
provided
U Fasten the door handle in place
- 1 hexagonal screw M8x30
U After assembly check that the door
handle operates smoothly
U Position the safety clamp on the door frame
U Fix the safety clamp at the top and bottom with rivets and locking
washers
3.3.13 Install the insulating door
U Insert the sliding bushings into the insulating door mounting
brackets
 Both sliding bushings must be tapped in downwards.
Position the insulating door at the mounting brackets and insert the
pre-mounted screws
