Installation
Assembly work
Page 28
M1020008_en s
3

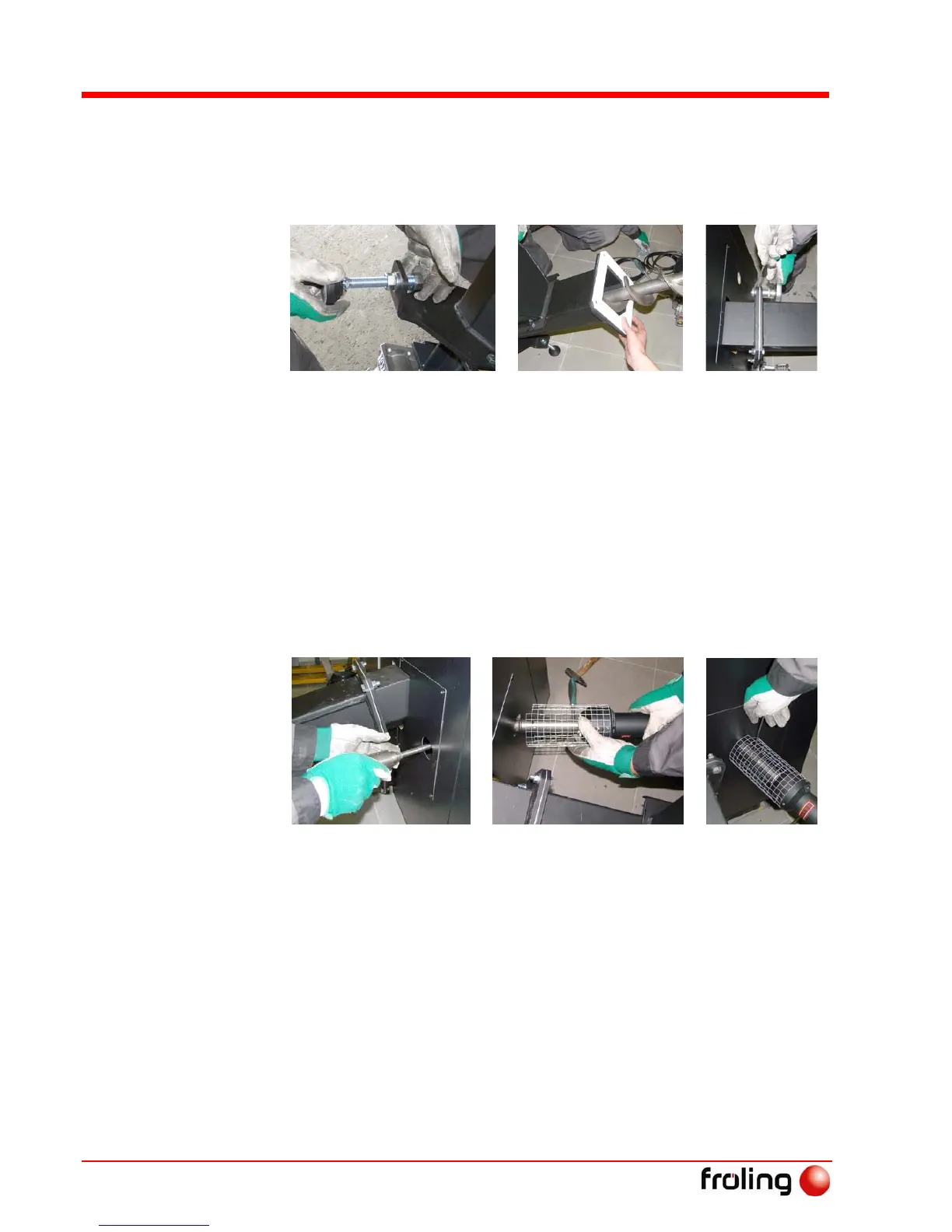

3.3.8 Installing the stoker unit
The stoker screw is pre-installed and set at the factory.
Do not change the alignment of the screw!
U Install the supporting post at the stoker unit
- 2 hexagonal nuts M16
- 2 spacer washers M16
U Position the stoker unit by the chamber and put the ceramic fibre
seal over the stoker screw
U Secure the stoker unit to the chamber flange
- 4 hexagonal screws M ?? x ??mm
- 4 spacer washers ??
- 4 hexagonal nuts M ??
U Finally tighten the supporting post slightly
3.3.9 Installing the igniter
U Install the ignition sleeve with the ignition pipe
U Insert the igniter with protective grating into the ignition sleeve
U Fix the igniter lightly with locking screw
Take care not to damage the igniter.
