Installation
Assembly work
Fröling Heizkessel- und Behälterbau Ges.m.b.H, Industriestrasse 12, A-4710 Grieskirchen Page 33
Tel +43 (0) 7248 606-0 Fax +43 (0) 7248 606-600 info@froeling.com www.froeling.com
M1020008_en
3

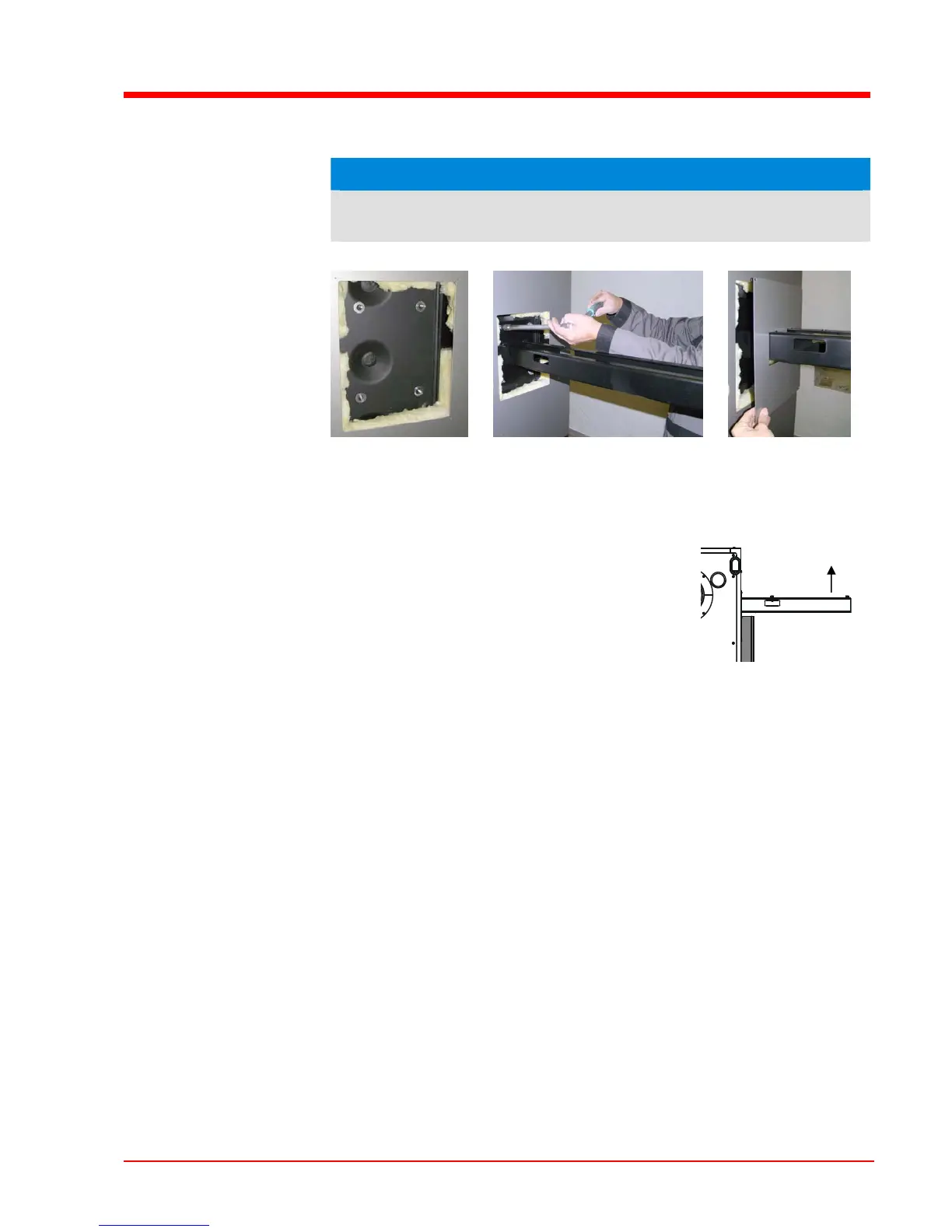

3.3.15 Fitting switch cabinet and cable ducts
NOTICE
Fit bracket and switch cabinet on the stoker side as the length of the cables
for the individual units are measured for this side.
U Put 12 mm spacer washers on the threaded bolts
U Put the bracket for the switch cabinet on the threaded bolts and fix
- 4 spacer washers M8
- 4 hexagonal nuts M8
You may align the bracket so it rises slightly
(approx 1 degree) by using an additional
spacer washer.
U Put the cover plate over the bracket and fix to the insulating side
panel with self-tapping screws
U Fit the cover plate without a cutout on the opposite side with self-
tapping screws
