Froling Turbomatic TMC 70 User Manual

Technology
Components and Connections
Fröling Heizkessel- und Behälterbau Ges.m.b.H, Industriestrasse 12, A-4710 Grieskirchen Page 11
Tel +43 (0) 7248 606-0 Fax +43 (0) 7248 606-600 info@froeling.com www.froeling.com
M1020008_en
2

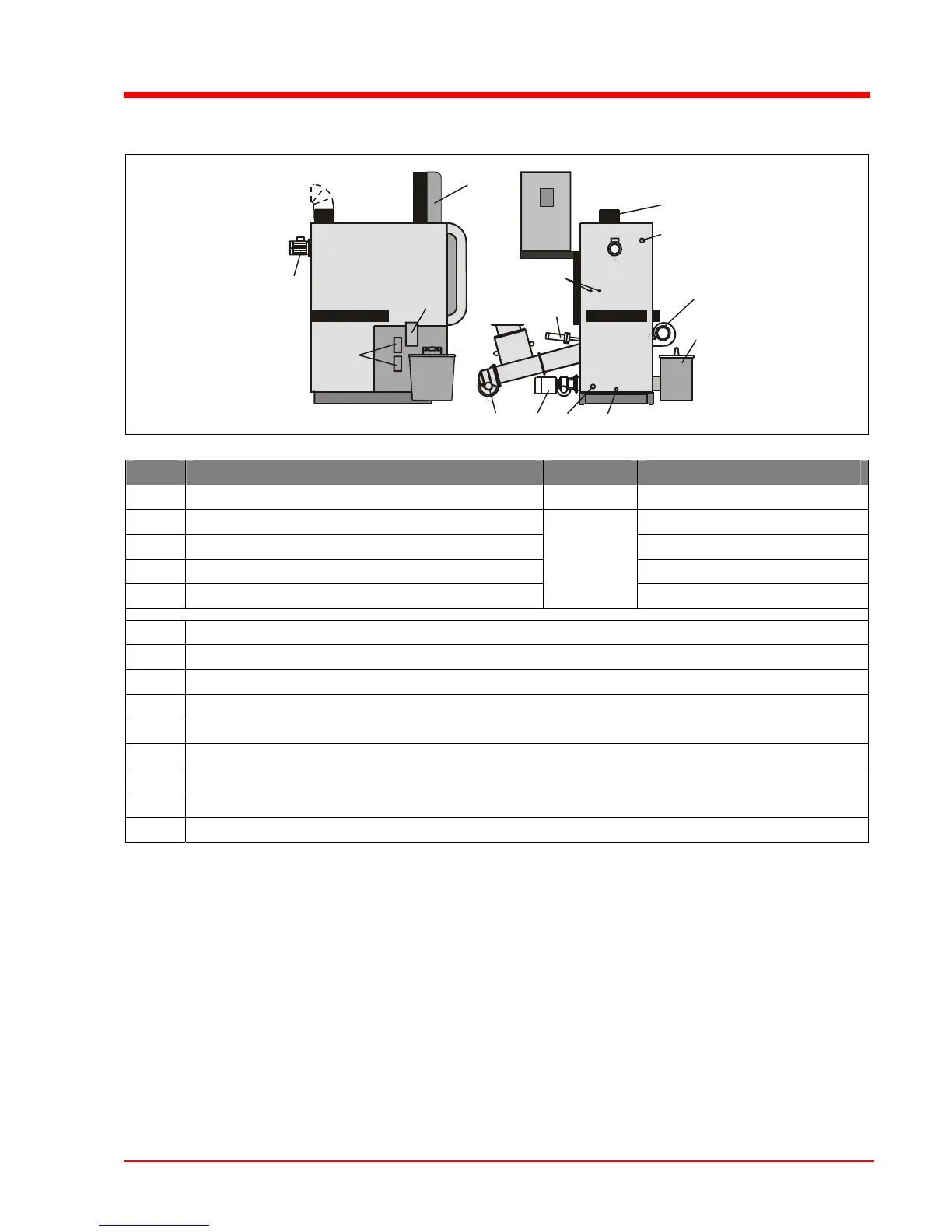

2.2 Components and connections
7
8
A
B
1
2
C
3
6
4
D
5
E
Pos. Description Unit TMC 70 / 85 / 100
A Flue gas pipe diameter mm 200
B Boiler outfeed connection 2
C Connecting the thermal discharge safety device 1/2
D Boiler return feed connection 2
E Connection for filling / emptying cock
Inch
1/2
1 Combustion air blower fan
2 2 Ash container
3 Automatic ignition
4 2 drives for the front and rear automatic ash removal
5 Stoker drive
6 Switch cabinet with integrated Lambdatronic H 3200 controller
7 Induced draught fan
8 Servo-motors for primary and secondary air
9 Tipping grate drive
9
