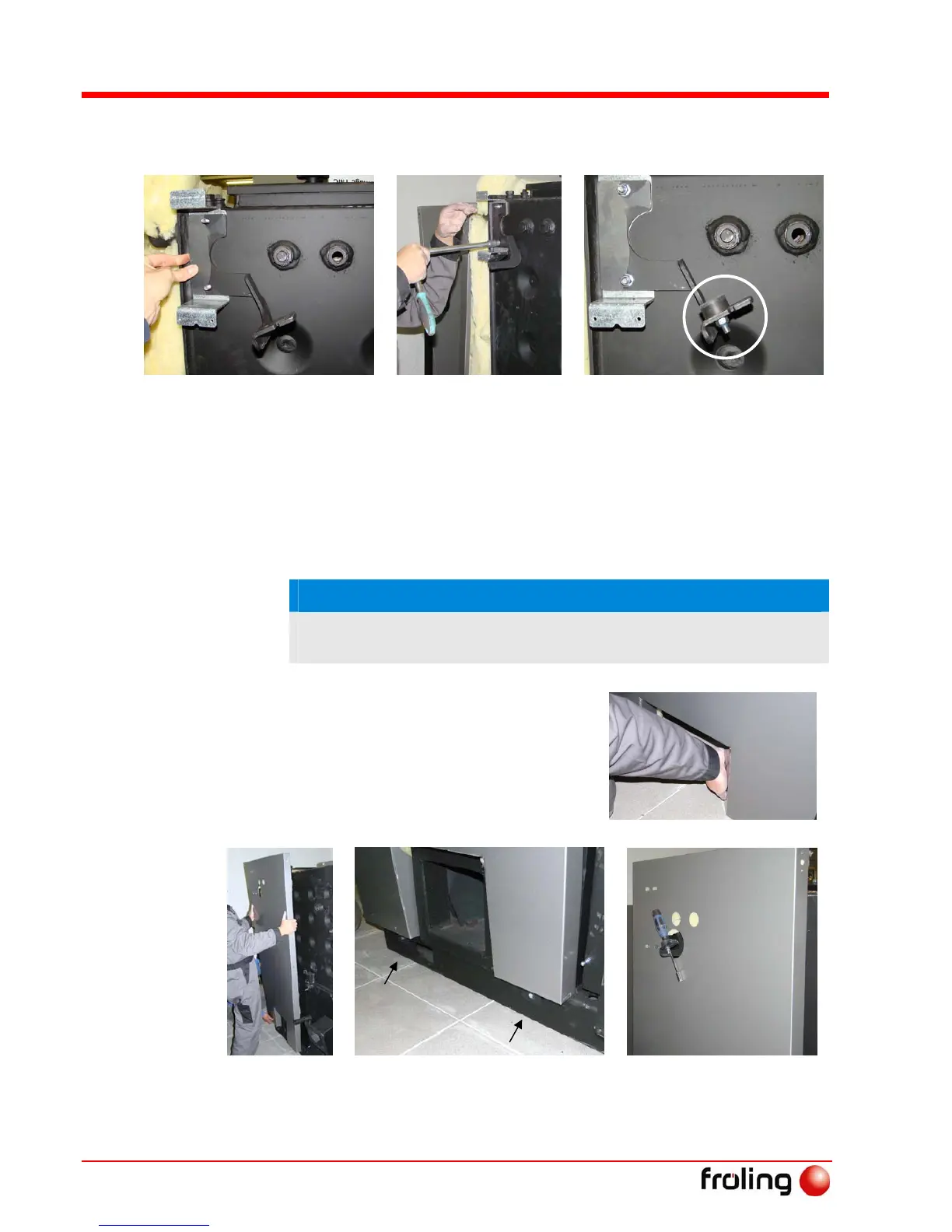

U Install the securing plate and the impact plate on threaded bolts on
the left side of the boiler as shown
- 2 spacer washers M8
- 2 locknuts M8
U Install the buffer stop on the impact plate
Installing the insulating side panels
NOTICE
The separate parts of the boiler insulation are fitted with a protective film.
This must always be removed before installation.
For both rear insulating side-panels:
U Bend in the pre-punched blanking for
the flange of the heat exchanger ash
remover in the right corner
U Insert the side panel at the bottom insulation mounting brackets at
the rear left and push it onto the boiler
U Secure the side panel to the WOS impact plate to prevent tipping
(e.g. with a screwdriver)
