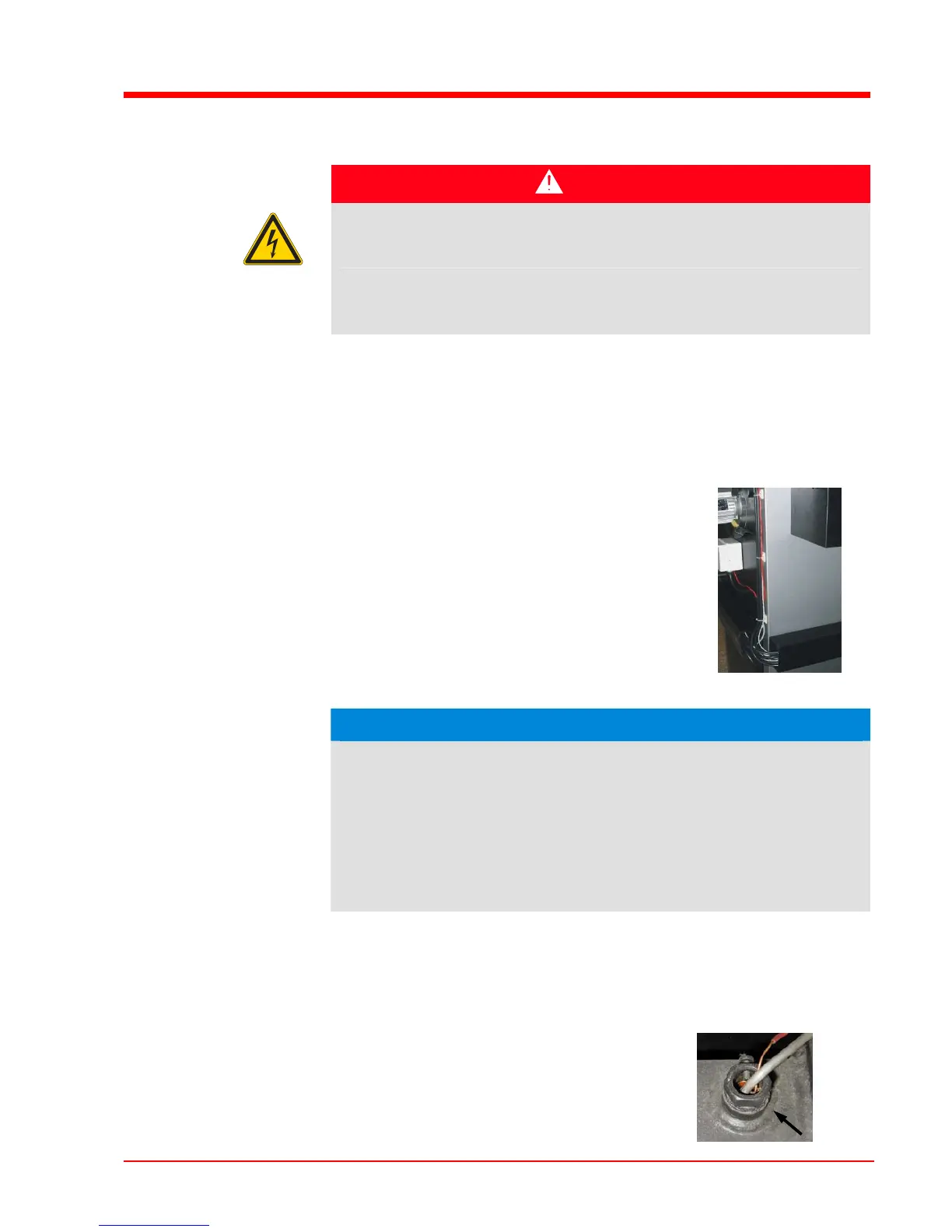

3.4 Electrical connection
DANGER
Working on electrical components
Risk of serious injuries from electric shocks
U Work on electrical components should only be carried out by authorised
technicians
Wiring should be installed using flexible sheathed cable and
dimensioned in compliance with the locally applicable standards and
guidelines
3.4.1 Laying the cable
U Lay the cables from the components
through the cable ducts to the switch
cabinet
U Remember to thread through the bracket!
U Secure the cables in the switch cabinet to
the terminal strips provided using cable ties
(= strain relief)
U Gather the cables for the boiler sensor, door
contact switch, STL, ID fan, Lambda probe
and WOS drive at the back of the boiler and
secure to the insulation with cable ties and
cementing clips
NOTICE
There may be excess cable depending on the overall size of the
Turbomatic.
These cables should be laid into the ducts in coils.
Spread the coils of excess cable over the entire cable ducts to prevent the
cable ducts from being over full on the stoker side.
Leave sufficient length of the shaker motor cable hanging freely for tipping
the grate.
Bind the freely hanging cable to the drive motors using cable ties. The
cables must not come into contact with the stoker duct.
U Wire the connections according to the circuit diagram:
À See boiler control unit operating instructions for circuit diagrams
3.4.2 Install the boiler sensor and sensor for the STL
U Remove the back insulating cover
U Install boiler sensor and sensor for
STL at the back pre-installed
immersion sleeve
