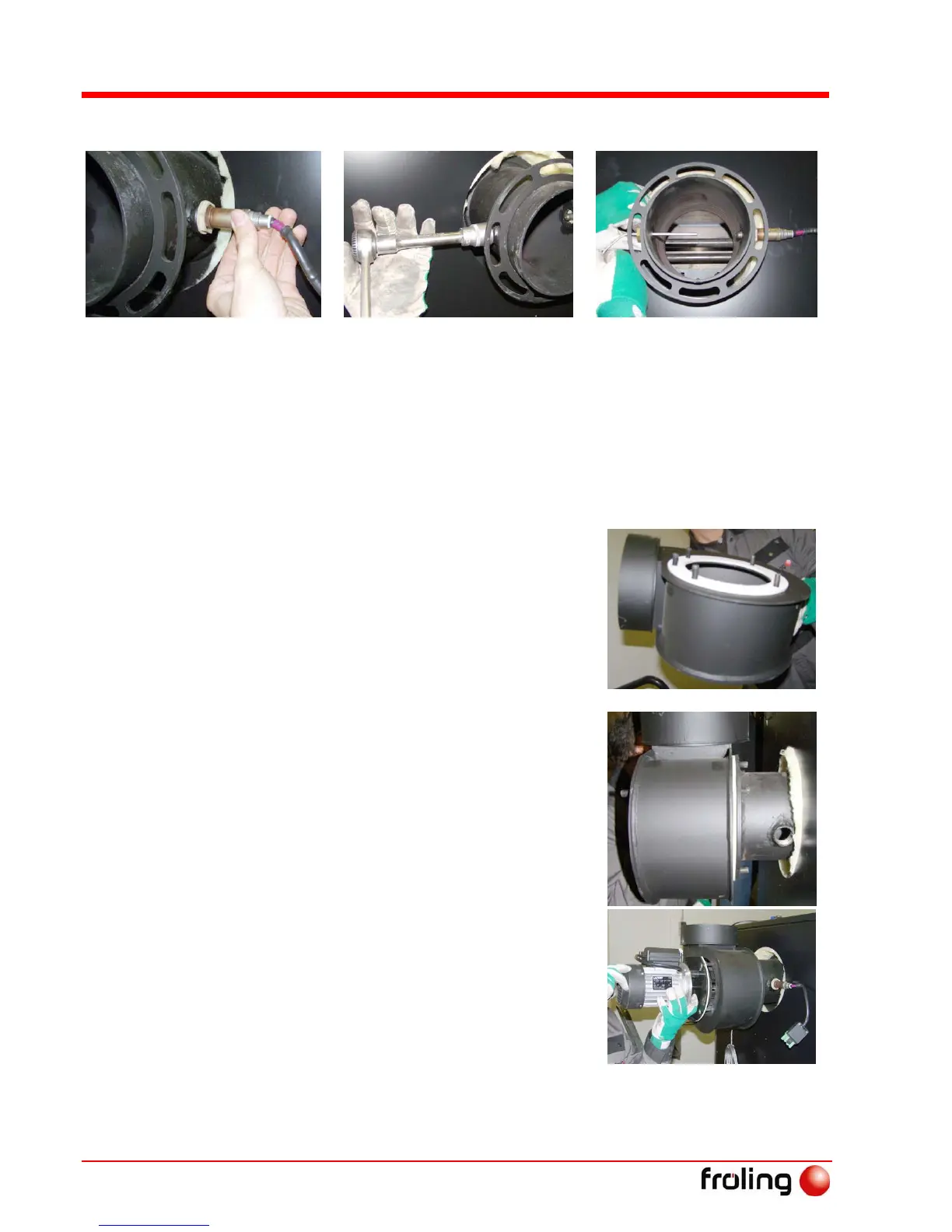

U Screw in the Lambda probe with plastic bushing on the right side
finger-tight
U Screw in the brass bushing of the flue gas sensor
U Push in the flue gas sensor until about 20 mm of the sensor
protrudes from the brass bushing
The point of the sensor should be in the middle of the flue gas
pipe.
U Fix the position of the flue gas sensor lightly with a wing nut
U Put the ceramic fibre seal onto the
induced draught fan housing
U Put the induced draught unit housing
on flue gas nozzles and fix
- 5 spacer washers M10
- 5 hexagonal nuts M10
U Put on the induced draught fan and
fix
- 4 spacer washers M10
- 4 hexagonal nuts M10
