Installation
Assembly work
Page 20
M1020008_en s
3

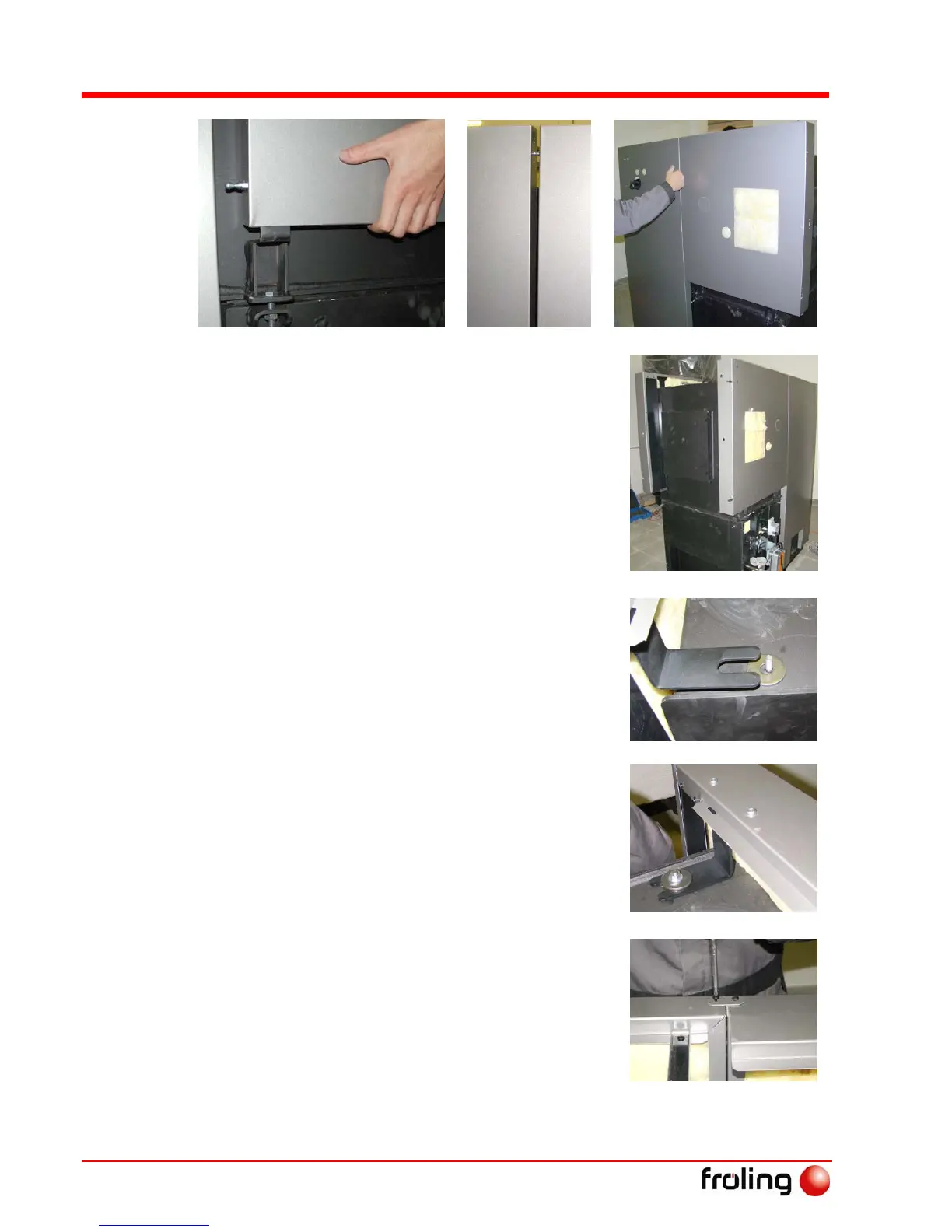

U Put the slit on the bottom side of the
front side panel onto the insulating door
mounting bracket above the chamber
U Insert the fitted screws of the side panel
into the spring shackles of the back side
panel and press on
U Repeat the steps for the right side panel
U Put a spacer washer Ø 44 mm onto the
threaded bolts on the boiler
U Push the front side panel onto the boiler
and put the insulation mounting bracket
onto the threaded bolts
U Put on another spacer washer Ø 44 mm
and screw on the insulation mounting
bracket lightly
- Spacer washer M8
- Hexagonal nut M8
Ensure that the insulating side panel is
not distorted when you fix the bracket.
U Connect the front and rear insulating
side panels with connection platelets
and 2 self-tapping screws
