Installation
Assembly work
Fröling Heizkessel- und Behälterbau Ges.m.b.H, Industriestrasse 12, A-4710 Grieskirchen Page 21
Tel +43 (0) 7248 606-0 Fax +43 (0) 7248 606-600 info@froeling.com www.froeling.com
M1020008_en
3

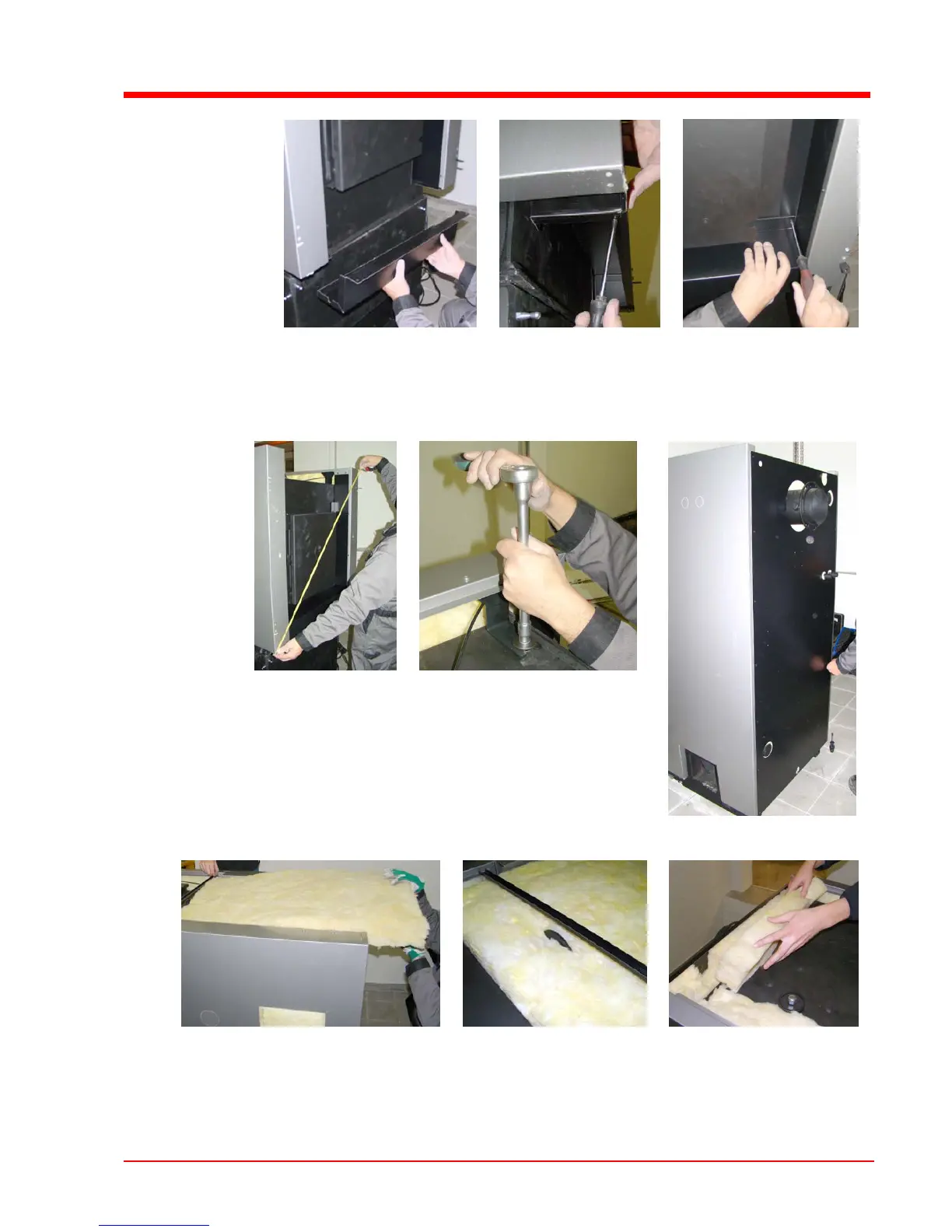

U Insert the bottom insulation cover plate between the side panels
U Screw the bottom insulation cover plate to the side insulation cover
plates on the left and right as shown
U Measure the diagonal length to align
the side panels in parallel position
U Fix the position of the aligned side
panels by screwing them in at the
upper insulation mounting brackets
U Attach the insulating back panel and
secure with self-tapping screws
U Put on the top heat insulation mat and pull it back under the
connection profile to the WOS cover
A hole for the transport lug is pre-cut in the mat
U Put in smaller pieces at the side and behind the WOS cover
