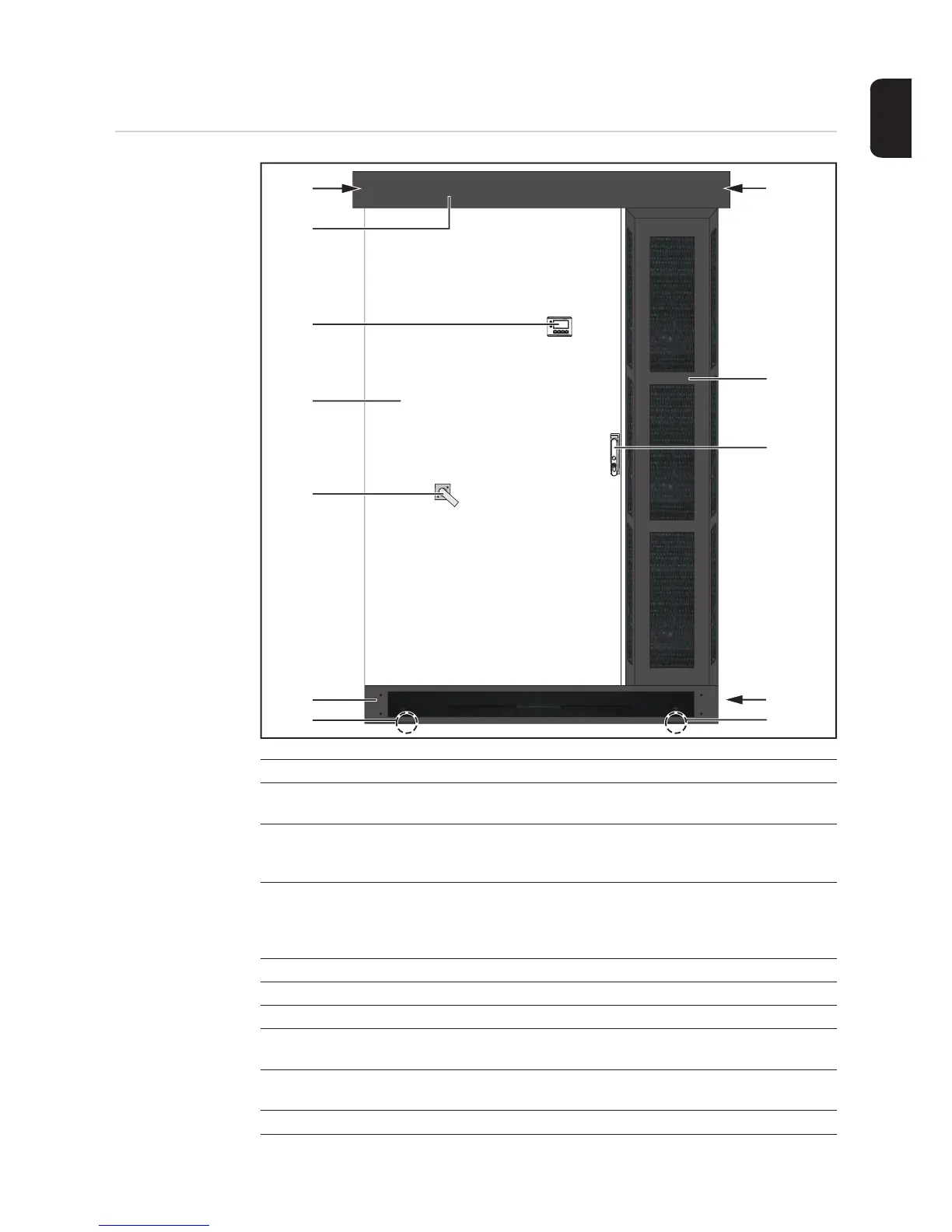

Description of the device
Outside of invert-
er
Item Description
(1)
(2)
Mounting lug (front and rear)
(3) Front base-cover (opposite: rear base-cover)
Behind the front base-cover the forklift truck receptacle is located.
(4) DC main switch, lockable when switched off
IMPORTANT! The door cannot be opened when the DC main switch is switched
on.
(5) Door
(6) Control elements (display, buttons, monitoring and status LEDs)
(7) Exhaust air hood
(8)
(9)
Lifting eye for crane transport (front and rear, under the exhaust air hood)
(10)
(11)
Lifting eye for crane transport (front and rear, under the exhaust air hood)
(12) Air inlet grille
(1) (2)
(3)
(4)
(5)
(6)
(7)
(15) (16)
(14)
(12)
(13)
(10) (11)(8) (9)
