Once the fault is rectified, power to the Fronius Solar Net will be restored within 5 seconds.

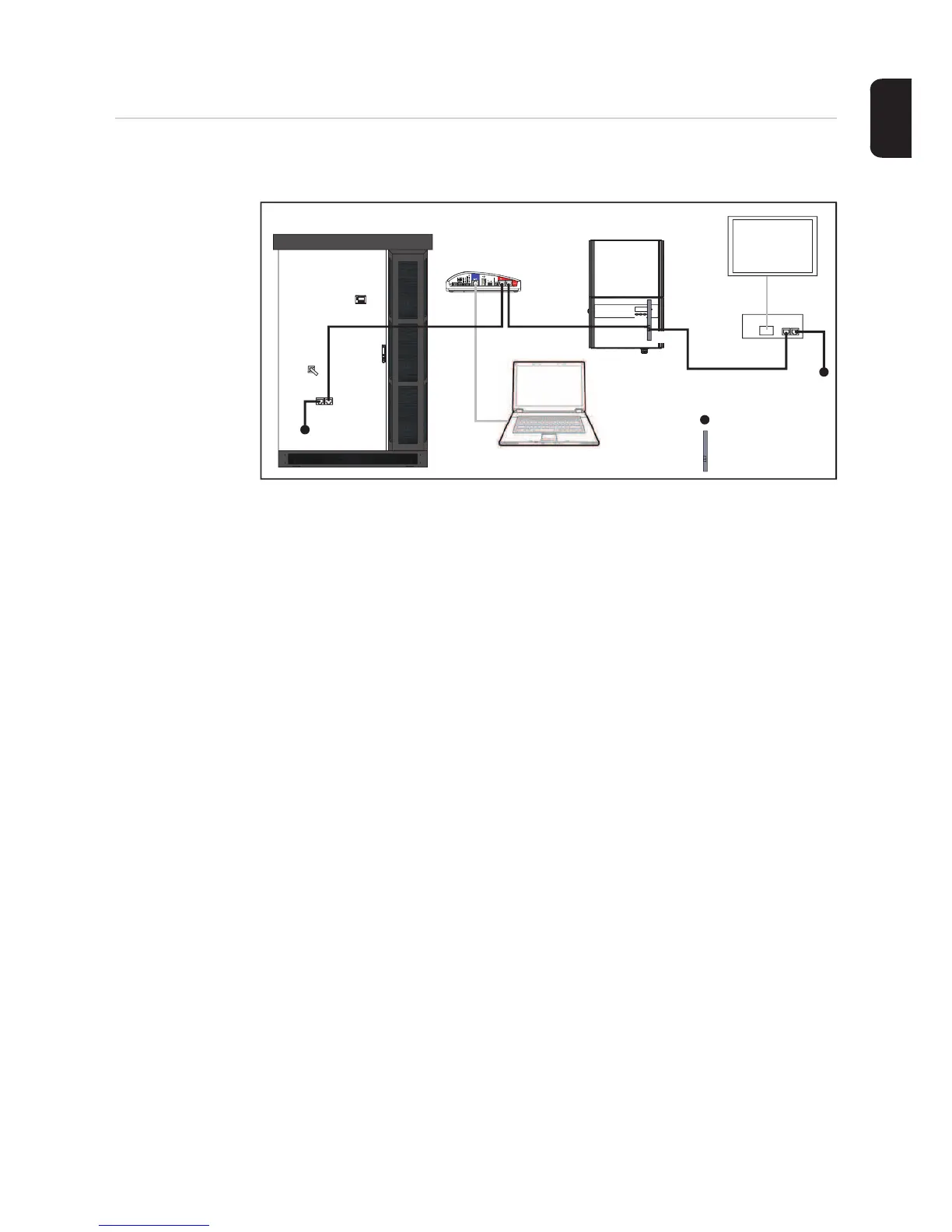

Example Recording and archiving of inverter data using Fronius Datalogger Web, data output on ex-
ternal display:
Captions:
Fronius Solar Net data network with
- 1 Fronius Agilo Outdoor
- 1 Fronius IG Plus with a 'Fronius Com Card'
- 1 Fronius Datalogger Web with LAN interface for connecting to a PC/laptop
- 1 Fronius Public Display Box
- 1 external display
Communication between the individual components themselves is handled by Fronius So-
lar Net.
12VDC
Class 2
Input only
max. 42V AC/6A
US: Class 2 only
12VDC 1A
Class 2
Output
= Endstecker
= Fronius Com Card
PC / Laptop
IN
OUT
RS232
LAN
IN
OUT
Fronius Agilo Outdoor
Fronius Datalogger Web
Fronius IG Plus
Display
Fronius
Public Display
Box
OUT
IN
