The display modes
The display
modes

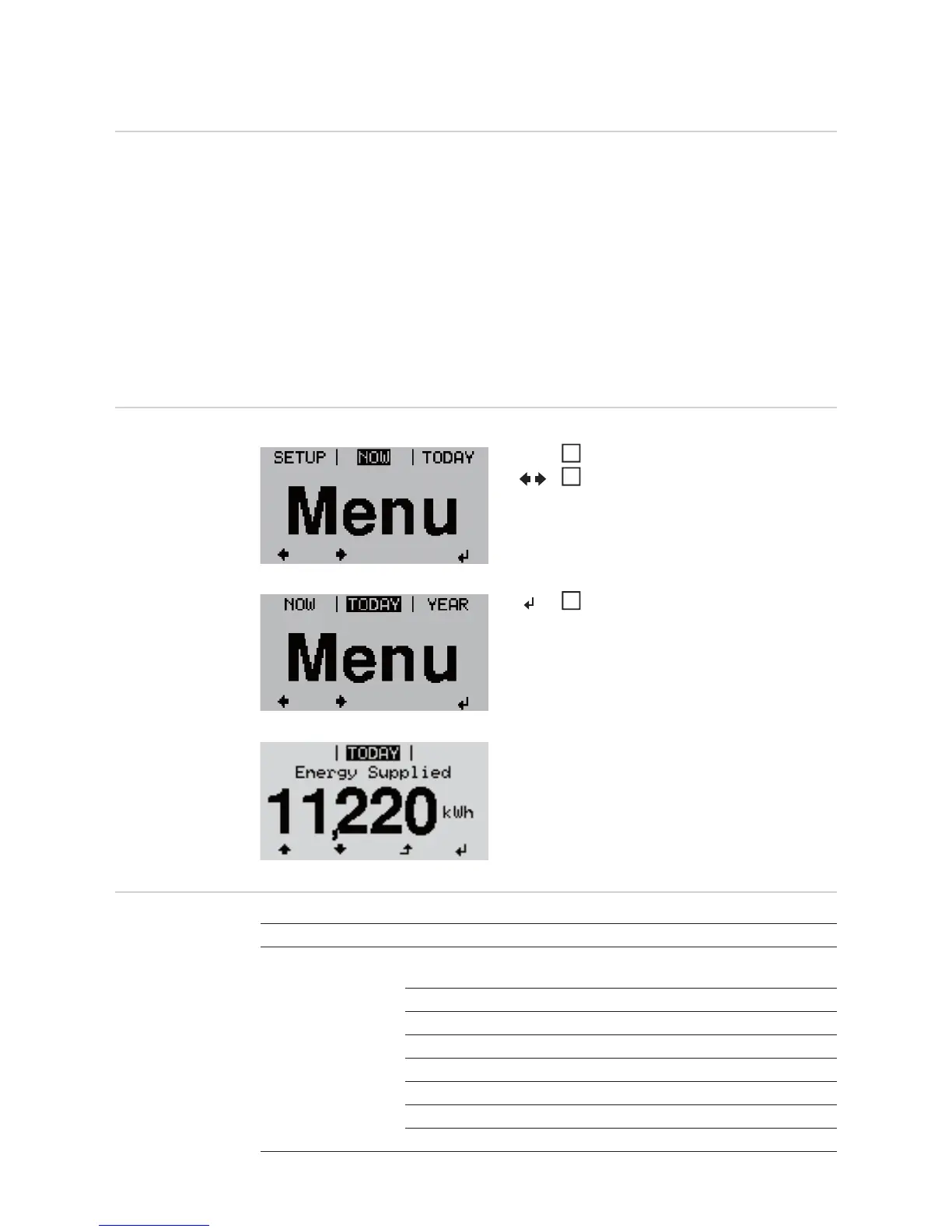

The following display modes are available on the inverter:
Choosing a dis-
play mode
Overview of dis-
play values
Display mode 'NOW' ...... Displays real-time values
Display mode 'TODAY' ...... Displays values for energy fed into the grid today
Display mode 'YEAR' ...... Displays values for energy fed into the grid during
the current calendar year
Display mode 'TOTAL' ...... Displays values for energy fed into the grid since
the inverter was originally commissioned.
Open menu level
Use the 'left' and 'right' keys to select
the required display mode
Press the 'Enter' key
The first value of the selected display
mode is displayed.
1
2
3
Display mode Unit Display value
'NOW' W Energy supplied
Day characteristic
V Three-phase AC grid voltage
A Three-phase AC output current
Hz AC grid frequency
V PV array voltage
A PV array current
°C Ambient temperature
rpm Fan speed
