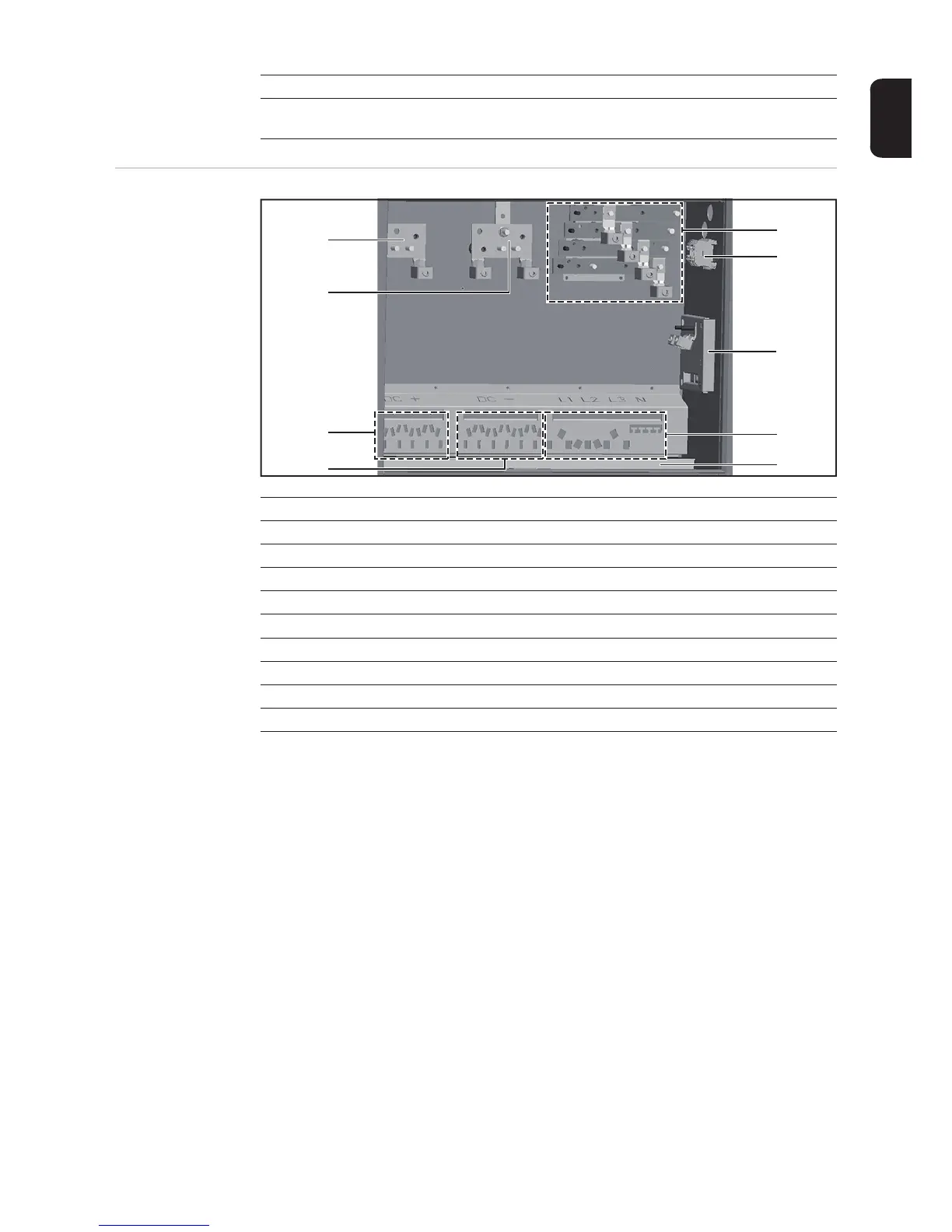

Connection com-
partment
(7) Connection area
(8) Door catch
(not shown)
Item Description
(1) DC+ connections
(2) DC- connections
(3) Openings for attaching the strain-relief clamps* for the DC+ cable
(4) Openings for attaching the strain-relief clamps* for the DC- cable
(5) Cable input opening with sliding cover and seal
(6) Openings for attaching the strain-relief clamps* for the AC cable
(7) Grounding terminal for AC cable
(8) AC power supply
(9) Mains connections L1, L2, L3 and N
* The strain-relief clamps and other installation and connection accessories are
part of the scope of supply of the inverter.
(1)
(2)
(3)
(4)
(6)
(7)
(8)
(9)
(5)
