38
2

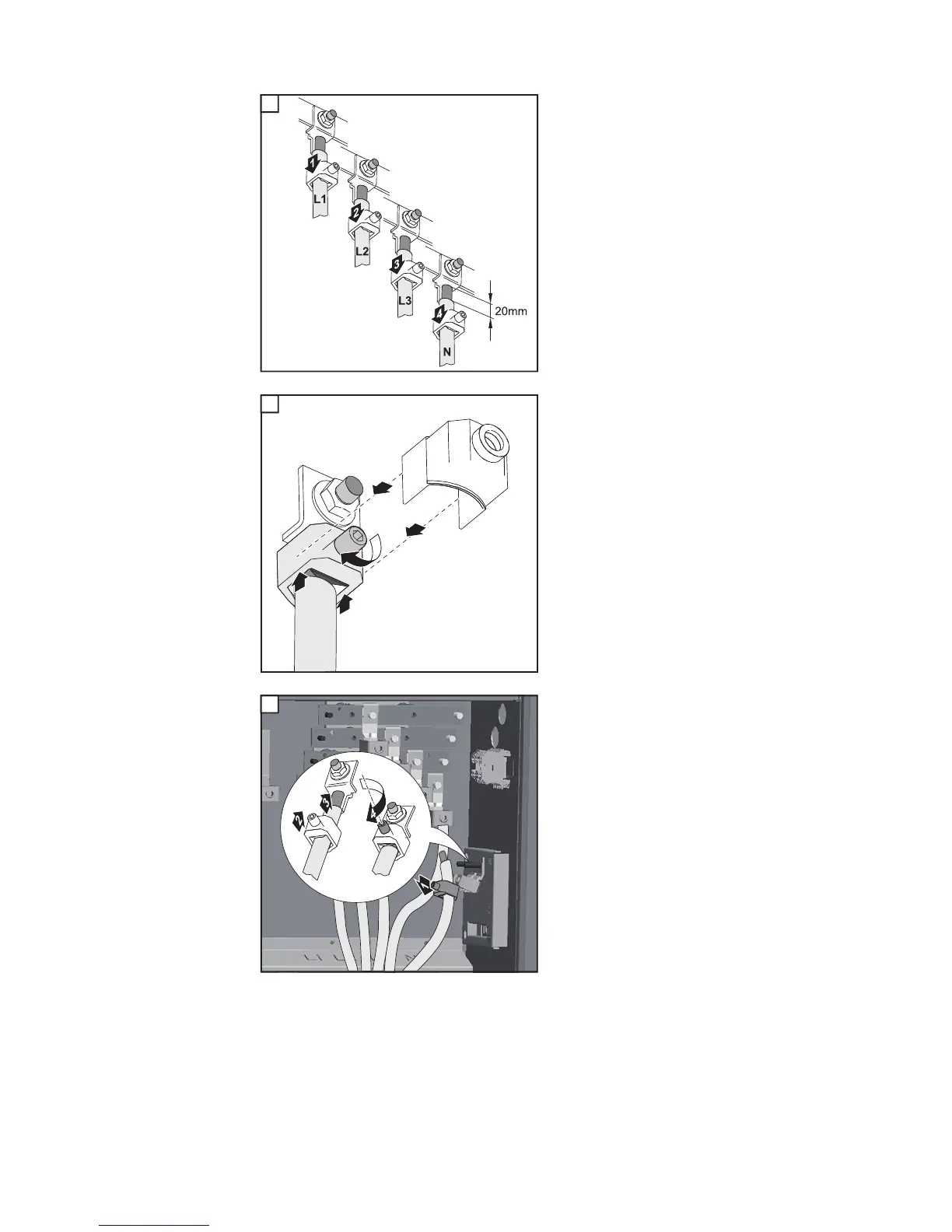

- Feed the AC cable into the inverter, ob-
serving the bending radii specified by
the cable manufacturer
- Strip sheath from AC cable
- Strip at least 20 mm of wire from phase
conductors L1 - L3, neutral conductor
N and ground conductor PE
- Align phase conductors L1 - L3 and
neutral conductor N with the grid
connections according to the phase
- Push the AC terminal over the phase
conductor, the neutral conductor and
the ground conductor
3
- Push the AC terminal up and over the
grid connection and the bare end of the
cable
- Tighten the AC terminal:
5 mm Allen key
Tightening torque = 12 Nm
- Place the insulation caps onto the grid
connections
- Repeat the process for phase conduc-
tors L2 and L3 and the neutral conduc-
tor N
4
- Align the ground conductor PE with the
grounding terminal
- Push the PE terminal up and over the
grounding terminal and the bare end of
the cable
- Tighten the PE terminal:
5 mm Allen key
Tightening torque = 12 Nm
2
3
1
3
2
1
4x
L1
L2
L3
N
3
4
