Fronius FlexTrack 45 - Preparing the welding carriage

39
Preparing the welding carriage
Installing the
welding carriage
with oscillation
unit
7
6
5
4
3
2
1

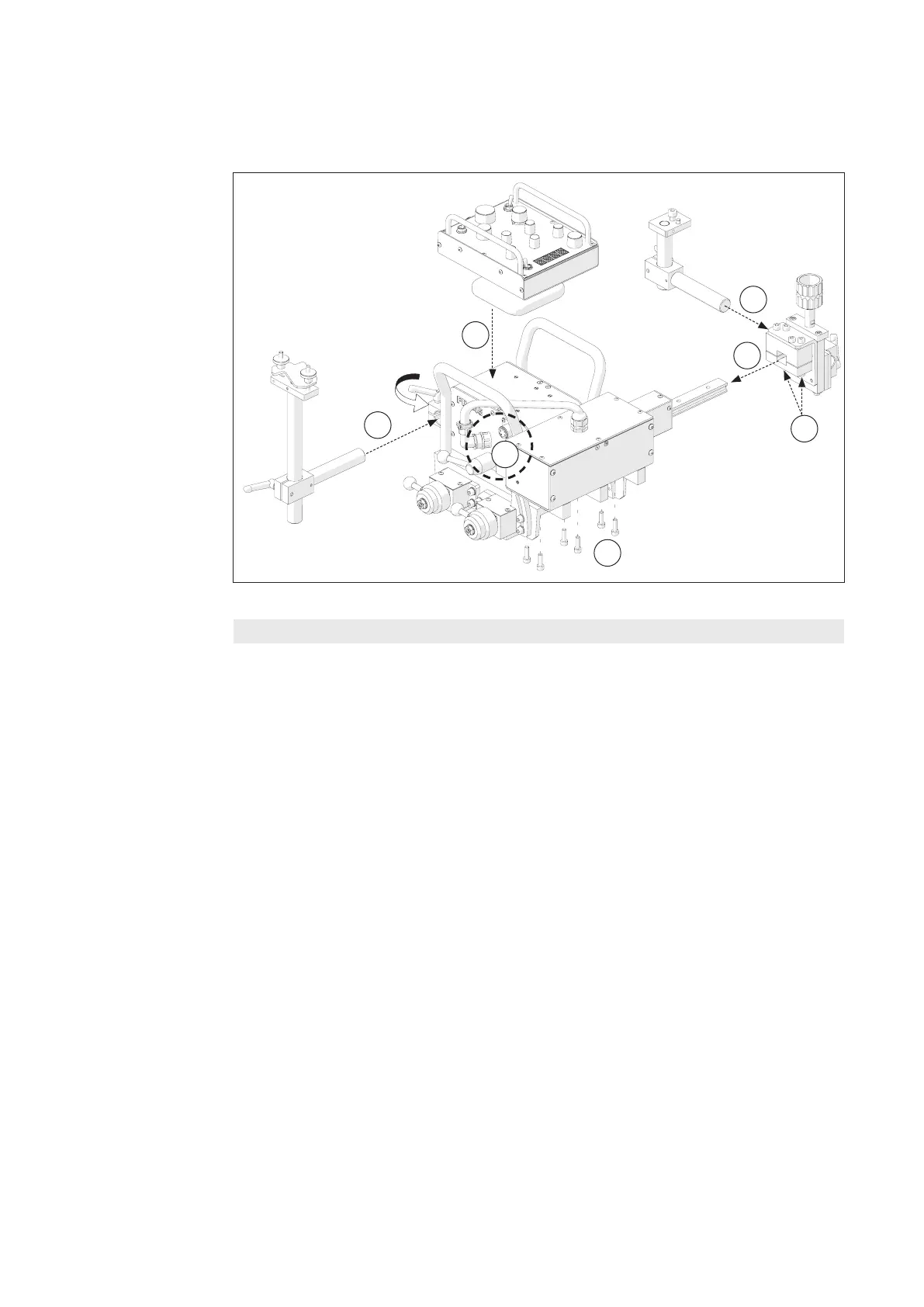

Assembling the welding carriage with oscillation unit:
1. Connect the oscillation unit to the welding carriage using the six screws supplied.
2. Connect the connecting lead for the oscillation unit to the carriage and lock it in
place.
3. Push the welding torch holder onto the oscillation unit.
4. Tighten the screws.
5. Fit the horizontal support onto the welding torch holder and tighten the screws.
6. Feed in the hosepack holder and x it in place with the clamp lever.
7. The remote control has a magnet which can be used to attach it to the welding
carriage.
