43

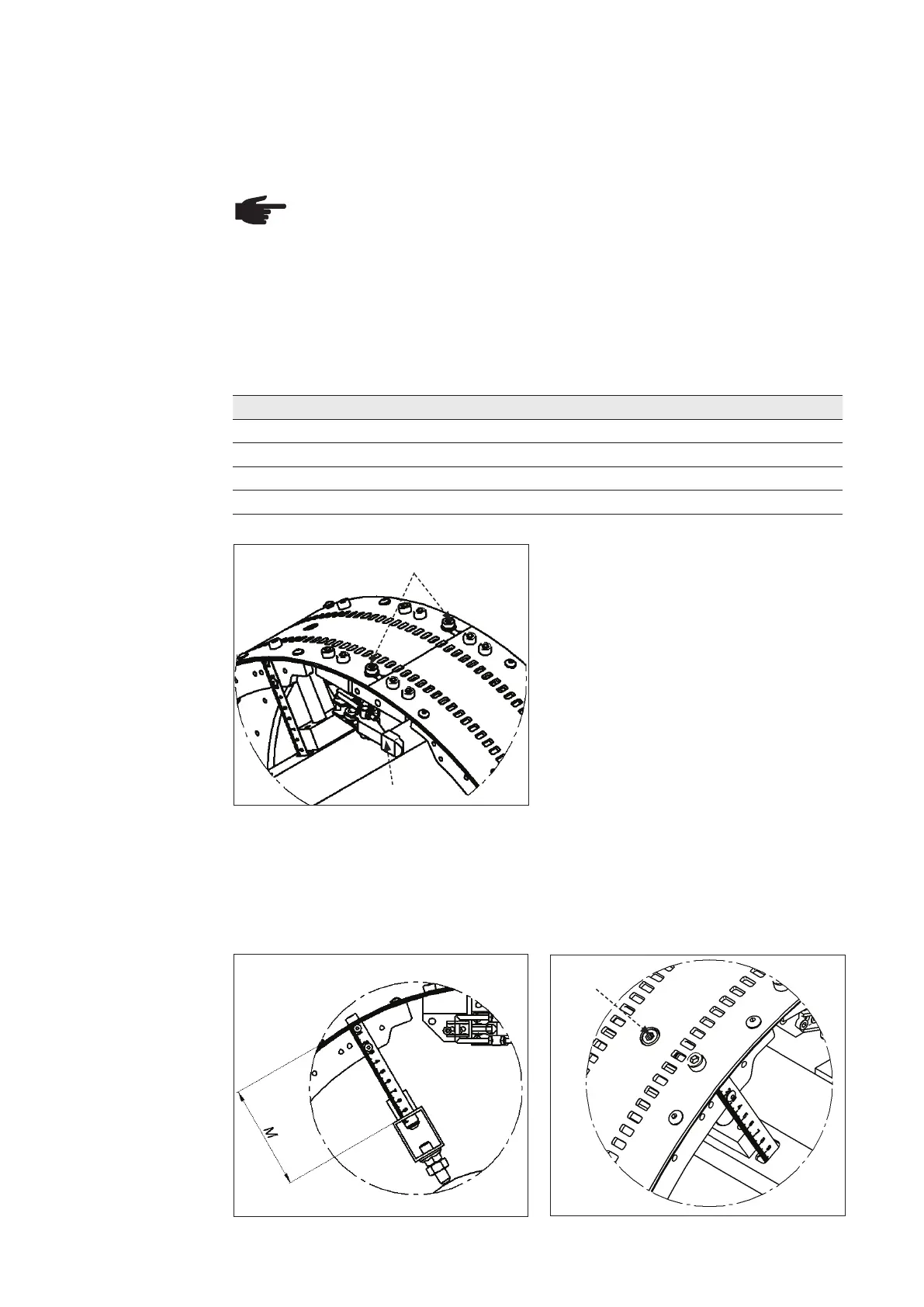

Closed ring rail
DIAMETER SEGMENTS BRIDGES
200 - 300 mm (7.9 - 11.8 in.) 2 3
300 - 480 mm (11.8 - 18.9 in.) 2 4
480 - 660 mm (18.9 - 26 in.) 2 6
660 - 840 mm (26 - 33.1 in.) 2 8
The closed ring rail is used for welding of pipes with a diameter of 200 to 840 mm.
Install the recommended number of bridges on the guide ring.
For the number of bridges, refer to the table below:
2. When using magnetic bridges: Set the levers on the magnetic bridges to OFF.
3. Using the adjusting screw (c), set the distance on the calibration units on the
bridges. Refer to the settings table for the recommended setting M plus 3 mm.
1. Open the locks on the ring rail:
- Loosen the M6 screws (a)
- Release the locking hook (b)
(b)
(a)
(c)
Securing the rail
structure
IMPORTANT! In vertical applications, the rail structure must be secured by a load arres-
tor with a locking function to prevent it from falling.
The load arrestor must be designed for the total weight of the welding carriage and rail
structure. The manufacturer accepts no liability for any damage to persons or property
resulting from vertical use of the welding carriage without a load arrestor.
NOTE! Ensure that the cable on the load arrestor is kept permanently taut.
