2

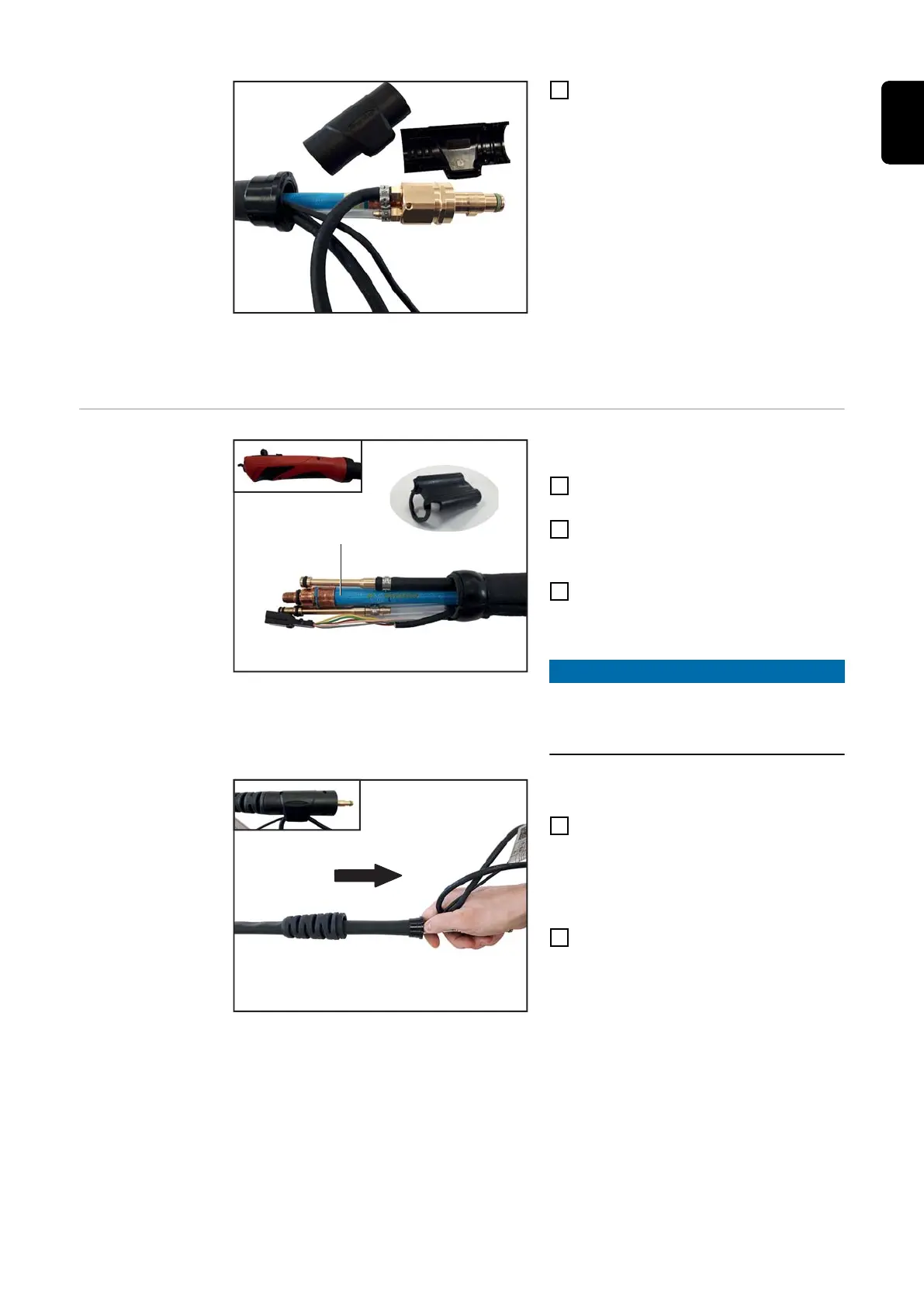

Remove upper and lower base shell
on the F++ connection
Replacing hose
components
Hand grip disassembly
1
Open the hand grip as per the “Open-
ing the hand grip” chapter
2
Remove the coupling housing as per
the “Replacing the coupling housing”
chapter
3
Pull the power cable (1) out of the
insulating plate (2) and unclip the
existing connections
NOTE!
Before removal, align sharp-edged
hose clamps accordingly to protect the
hose fabric.
Disassembling the F++ connection
1
Disassemble the F++ connection as
per the “Opening the F++ Connection”
chapter
Removing hose components
1
Lay hosepack straight and pull out
hose components via F++ connection
31
EN-US
