Fronius THP 120 - 300 SH - Closing the F++ Connection; Closing the Hand Grip

(2)
(1)

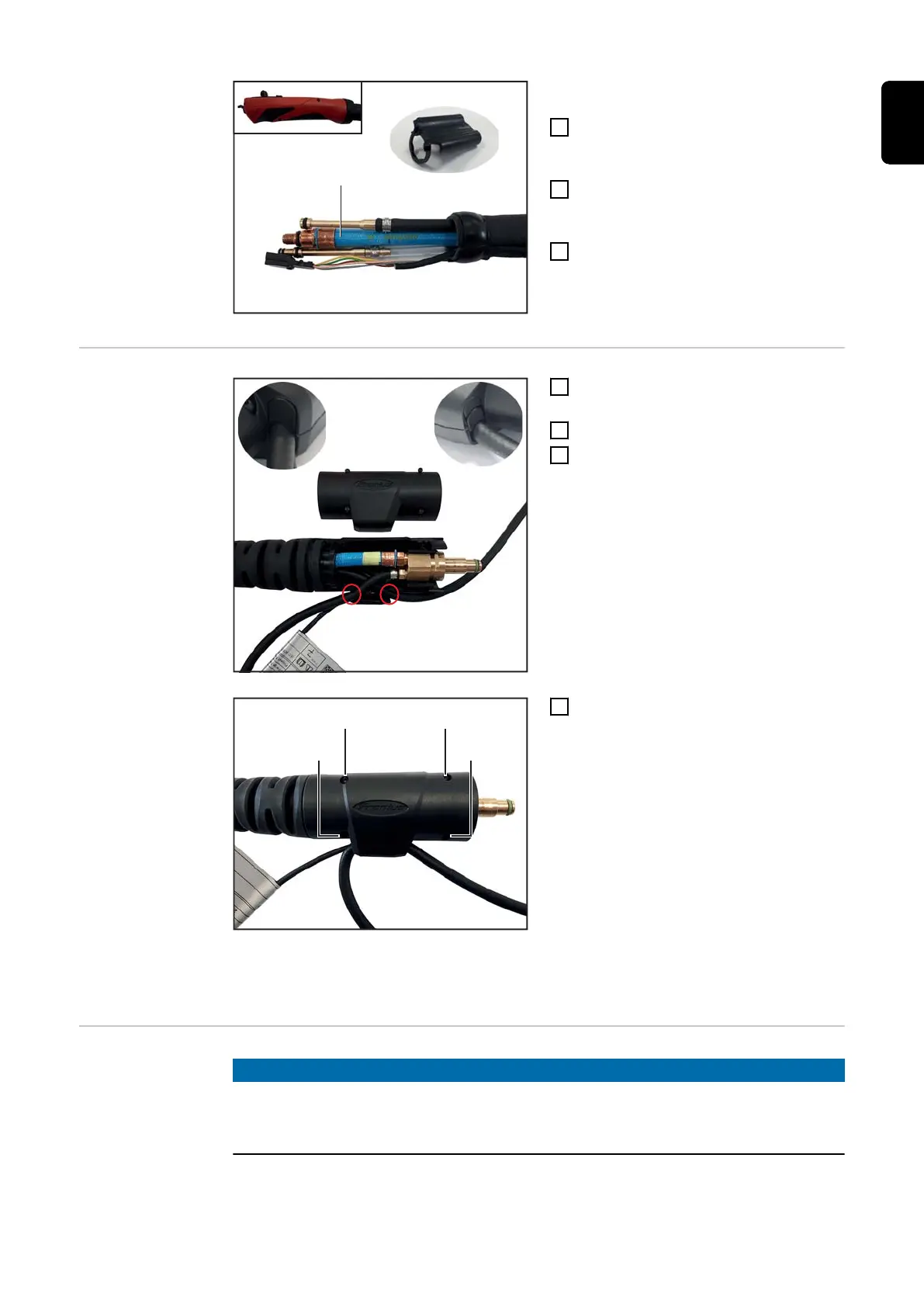

Installing the hand grip
1
Clip the gas and optional water con-
nections into the insulating plate (1)
and thread the power cable (2) in
2
Fit the coupling housing as per
chapter “Replacing the coupling hous-
ing”
3
Close the hand grip as per the “Clos-
ing the hand grip” chapter
Closing the F++
connection
(A) (B)
(B)(A)
1
Insert the F++ connection in the lower
base shell as shown
2
Position plastic parts A and B
3
Fit the upper base shell
(1)
(1)
(1)
(1)
4
Secure both base shells with four TX 8
screws (1)
Tightening torque: 0.6 Nm
Closing the hand
grip
NOTE!
In the case of the water-cooled versions, the hand grip must not be closed until
the water flow rate and leak test has been carried out according to the “Testing fol-
lowing repairs” chapter.
