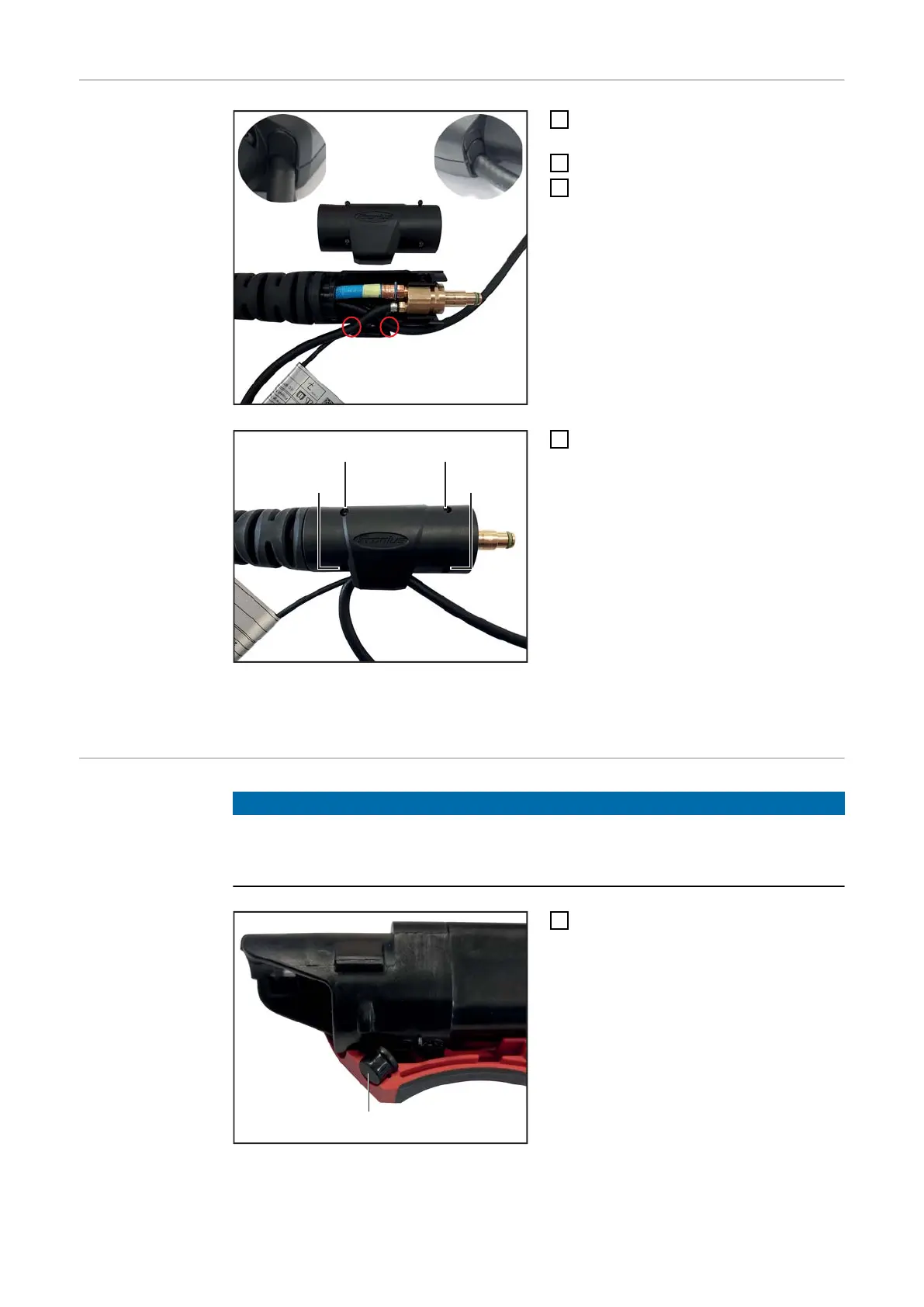

Fronius THP 120 - 300 SH - Closing the F++ Connection; Closing the Hand Grip

Closing the F++
connection
(A) (B)
(B)(A)
1
Insert the F++ connection in the lower
base shell as shown
2
Position plastic parts A and B
3
Fit the upper base shell
(1)
(1)
(1)
(1)
4
Secure both base shells with four TX 8
screws (1)
Tightening torque: 0.6 Nm
Closing the hand
grip
NOTE!
In the case of the water-cooled versions, the hand grip must not be closed until
the water flow rate and leak test has been carried out according to the “Testing fol-
lowing repairs” chapter.
(1)
1
Attach LED blanking plug (1)
