Fronius TransTig 170 User Manual

32

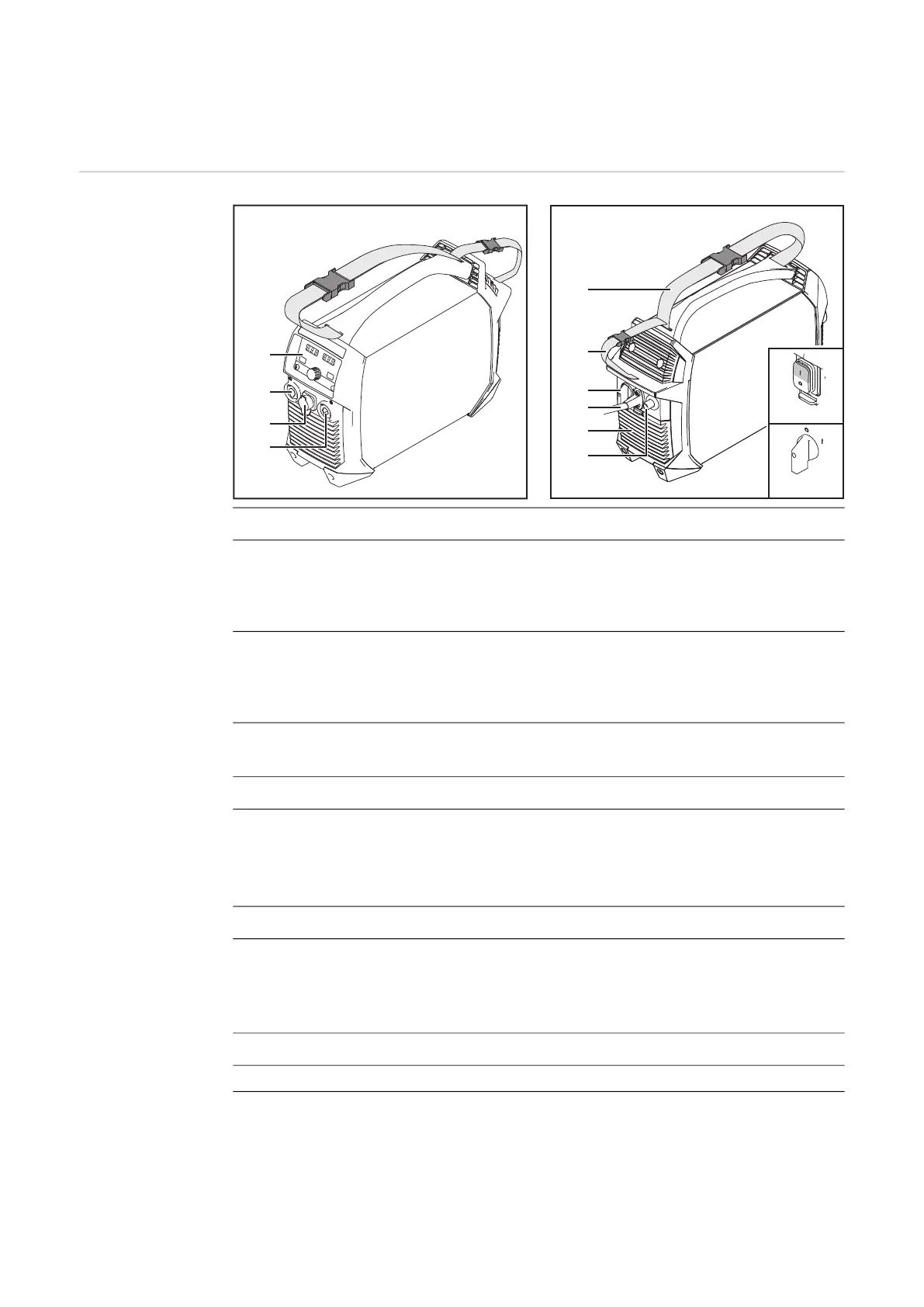

Connections, Switches, and Mechanical Compo-
nents
Operating Con-
trols, Connec-
tions, and
Mechanical Com-
ponents
(1) Control panel
(2) (-) Current socket with integrated gas connection
For connecting:
the TIG welding torch
the electrode cable during manual metal arc welding
(3) TMC connection (TIG Multi Connector)
For connecting the control plug of the TIG welding torch
For connecting foot remote controls
For connecting remote controls for manual metal arc welding
(4) (+) Current socket with bayonet latch
Connect the grounding cable here
(5) Carry strap
(6) Cable strap
To hold the mains cable and the welding power-leads
IMPORTANT! Do not use the cable strap to transport the device!
(7) Mains switch
(8) Mains cable with strain relief
For MV devices: mains cable to plug in
(see "Connecting the Mains Cable" on page 38)
(9) Air filter
(10) Shielding gas connection socket
(1)
(2)
(3)
(4)
(7)
(8)
(9)
(5)
(6)
(10)
MV
TT170/210
TT 170/210
*
*
