Fuji Xerox DocuCentre-IV 3060 User Manual

2 Product Overview
38
Product Overview
2
Machine Components

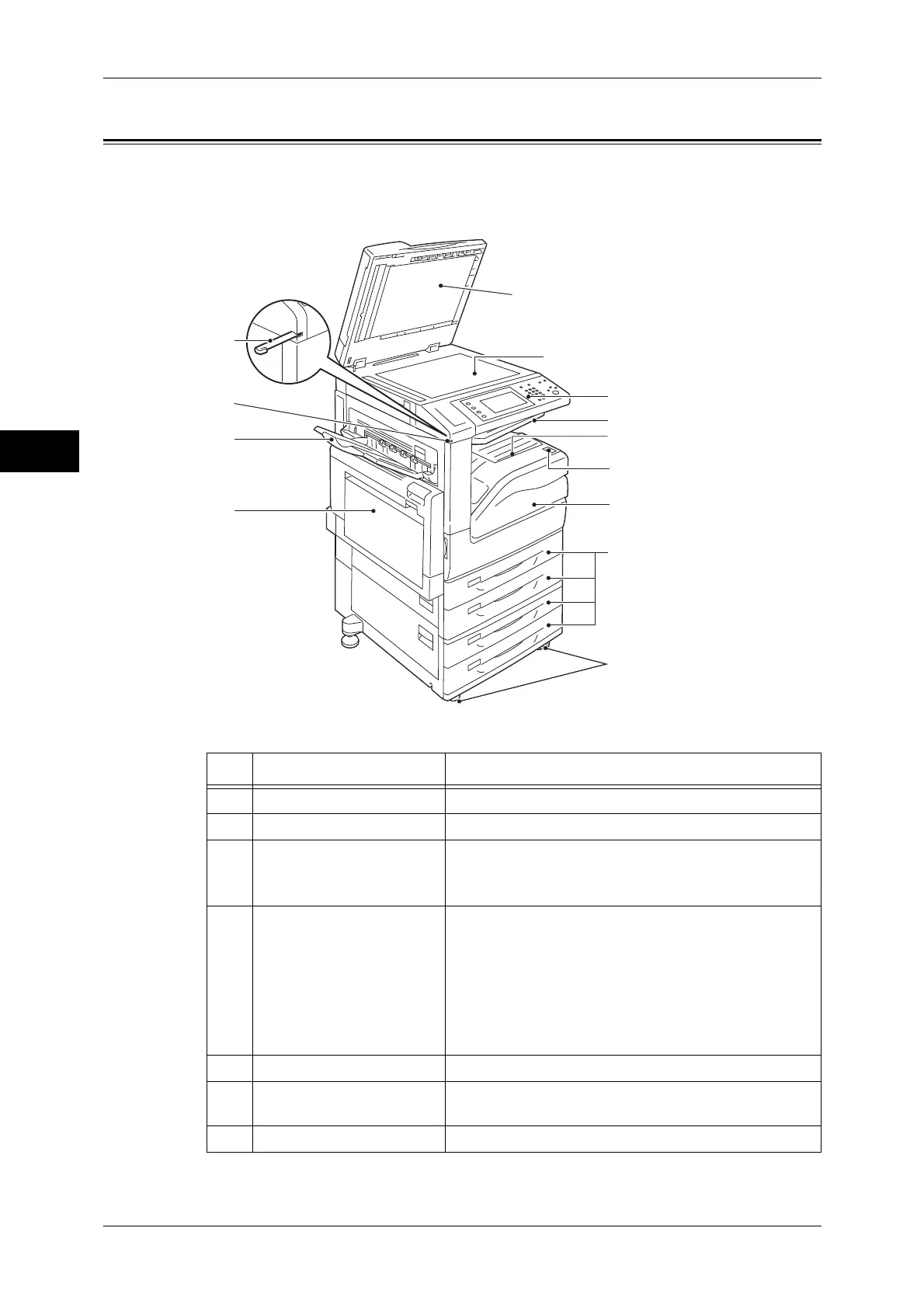

The following describes machine components and their functions.
 4 Tray Model
No. Component Function
1 Document cover Holds a document in place.
2 Document glass Load a document here.
3 Control panel Consists of operation buttons, LED indicators, and the
touch screen.
Refer to "Control Panel" (P.55).
4 Exit 2 tray Outputs are delivered here by separating the center tray
into two levels.
Note • When the Exit 2 Tray is installed, select [Installed]
in [Extra Center Tray] in the System
Administration mode. For more information, refer
to "5 Tools" > "Common Service Settings" >
"Other Settings" > "Extra Center Tray" in the
Administrator Guide.
5 Center tray Stacks up copies and prints with the face downward.
6 Power switch Switches the power of the machine on and off.
Refer to "Power Source" (P.47).
7 Front cover Open this cover to replace the consumables.
5
6
7
8
9
10
11
1
3
4
2
12
13
