FujiFilm SP-3000 - Paper Magazine; Paper Supply Section Assembly Replacement; Magazine Roller Release Arm Replacement; Paper Supply Section

10-3
10

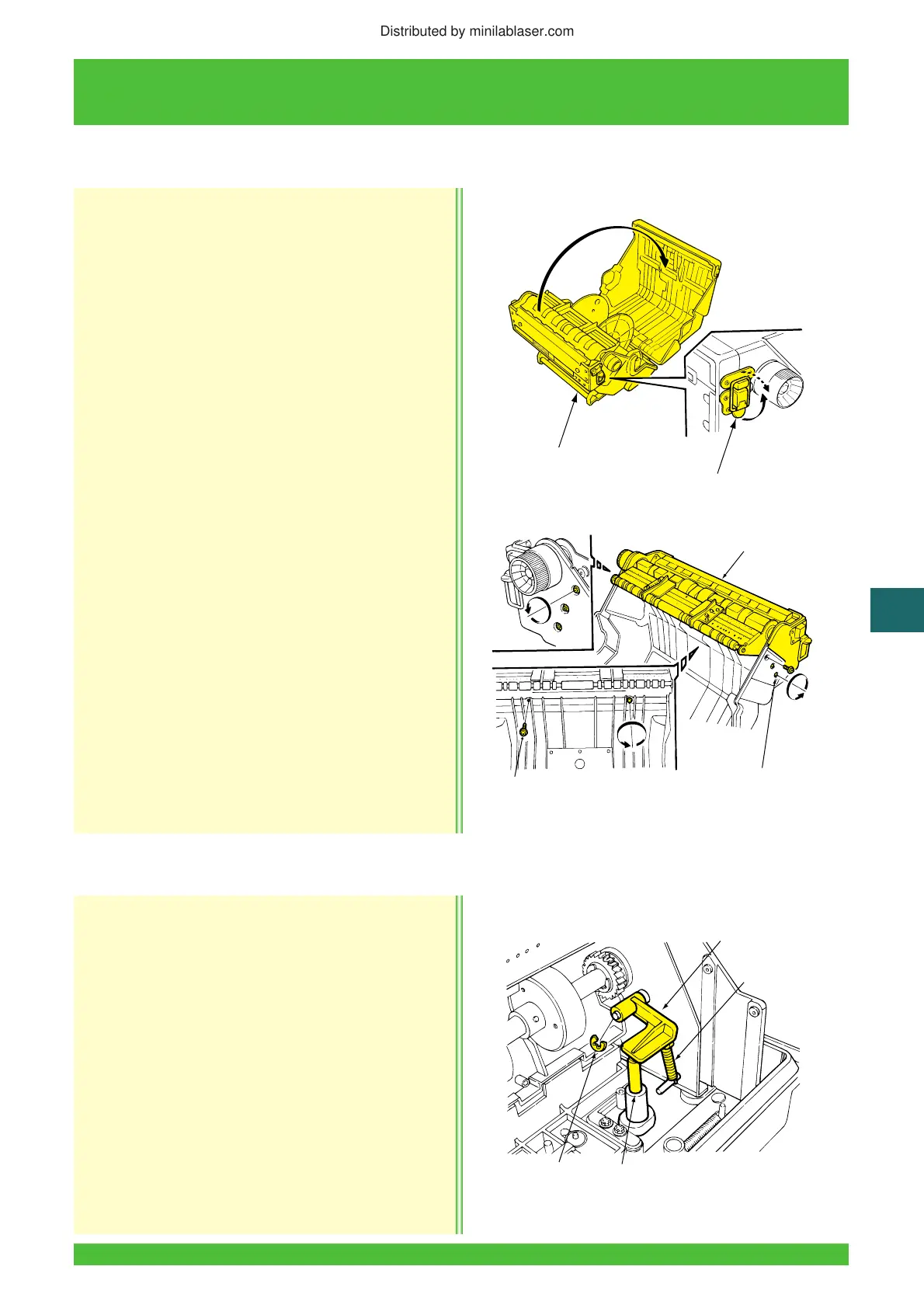

10.1 Paper Magazine
Removal
1. Release the latches and open the paper
magazine.
2. Remove the six outside screws, two inside screws
and then the paper supply section assembly.
3. Remove each four screws and then the two
latches.
Installation
Installation is essentially in the reverse order of
removal.
Removal
1. Remove the paper supply section assembly
(See Subsection 10.1.1).
2. Remove the E-ring, arm, spring and push rod.
Installation
Installation is essentially in the reverse order of
removal.
10.1.1 Paper Supply Section Assembly Replacement
LII360
Paper Magazine
Latches (2)
LII363
Screws (2)
Screws (6)
Paper Supply Section Assembly
10.1.2 Magazine Roller Release Arm Replacement
LII364
Arm
Spring
E-ring
Push Rod
