FujiFilm SP-3000 - Parts Location

11-3
11
Parts Location

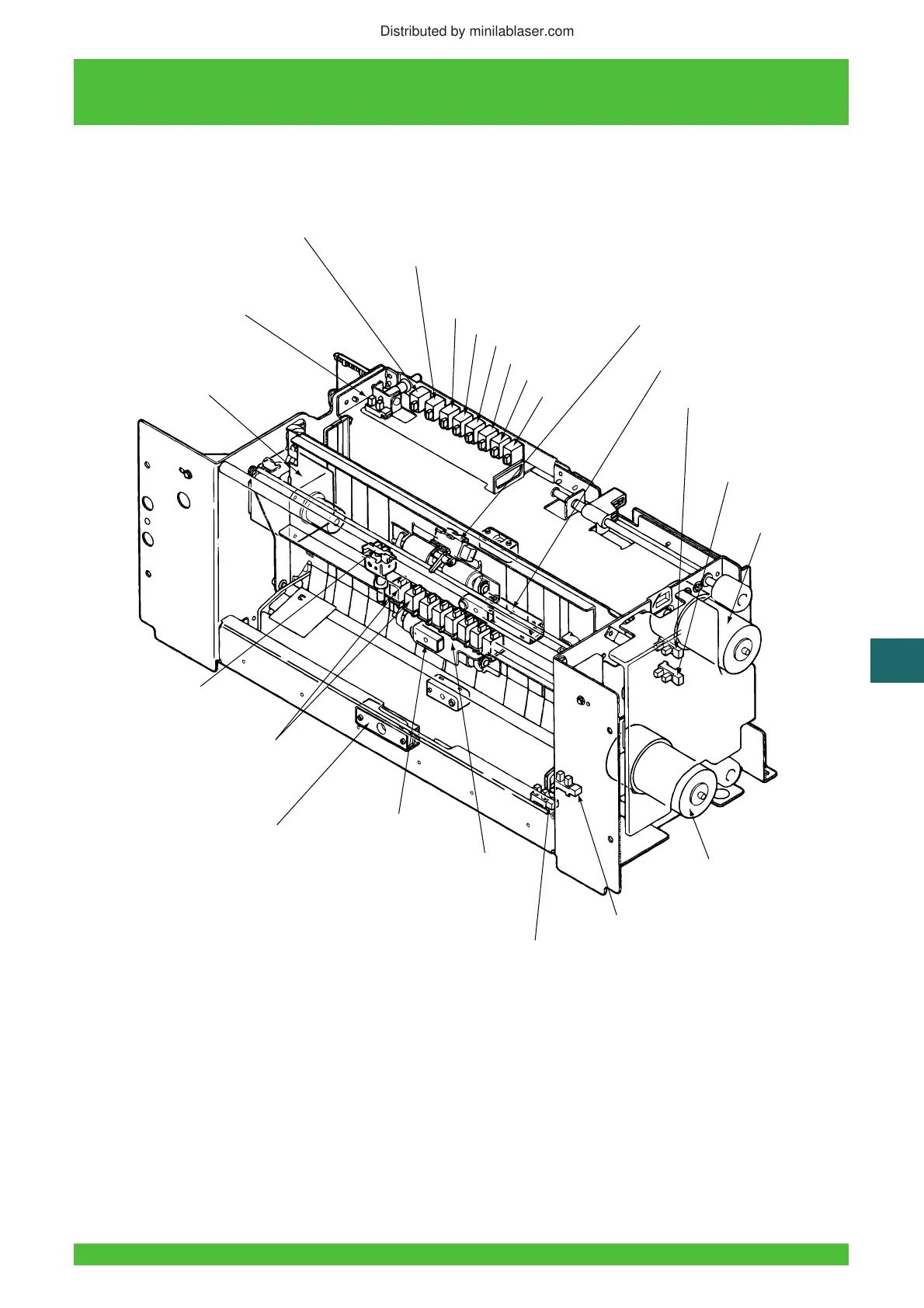

● Cutter/Feed Unit
LII955
Upper Magazine Open/Close
Sensor 1 (D617)
Upper Magazine
Open/Close Sensor 2 (D618)
Upper Magazine
Paper Sensor (D631)
Upper Magazine
Splice Sensor (D619)
Upper Cutter Close
Position Sensor (D602)
Lower Cutter Close
Position Sensor (D604)
Upper Magazine
ID Sensors 1 to 6
6(D615)
5(D614)
4(D613)
3(D612)
2(D611)
1(D610)
Upper Cutter
Open (Home)
Sensor (D601)
Lower Cutter Open
(Home) Sensor (D603)
Upper Cutter
Drive Motor
(M600)
Upper Magazine
Paper End Sensor (D616)
Feed Motor 1 (M630)
Lower Magazine
Paper End Sensor (D626)
Lower Magazine
Open/Close Sensors
1/2 (D627/D628)
Lower Magazine
Splice Sensor (D629)
Lower Magazine
Paper Sensor (D632)
Lower Magazine
ID Sensor 1 to 6
(D620 to D625)
Lower Cutter Drive
Motor (M601)
