11.3 Registration Section
5. Open the two clamps and disconnect the solenoid
connector.
6. Remove the connector from the bracket.
7. Place the unit with its upper side up.
8. Remove the two screws then the solenoid and
plunger.
Installation
Installation is essentially in the reverse order of removal.
Removal
1. Remove the registration unit (See Subsection 11.3.1).
2. Place the registration unit with its upper side
down.
3. Remove the E-ring and then the drive side idler
gear.

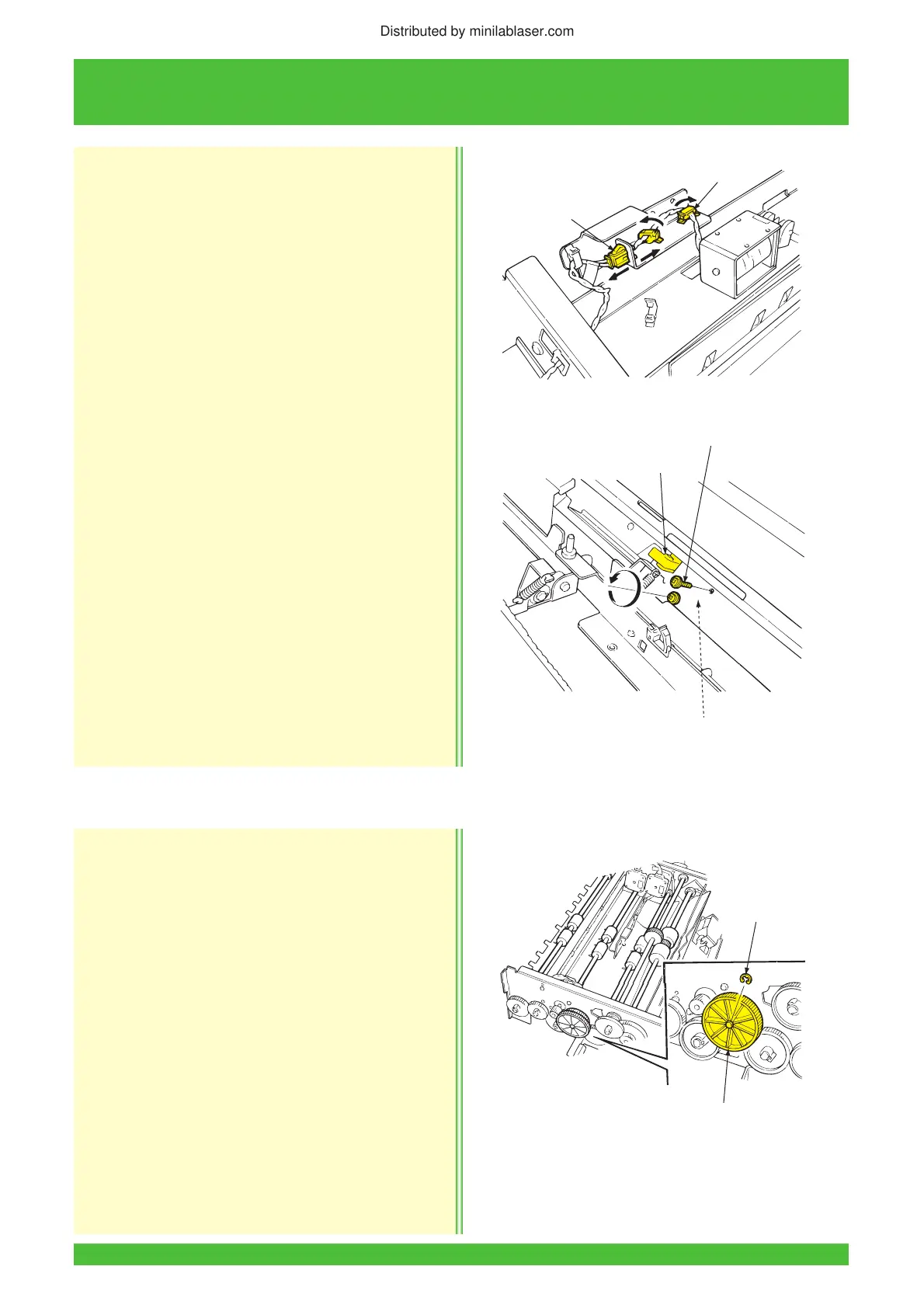

LII121
Clamps (2)
Connector
LII122
Screws (2)
Plunger
Solenoid (S640)
11.3.10 Registration Section Feed Roller Replacement
LII123
E-ring
Drive Side Idler Gear
