FujiFilm SP-3000 - Feeding Path Switch Position Sensor (Large Size)(D776) Replacement

18-15
18.1 Dryer Exit Unit
18
Installation
Installation is essentially in the reverse order of
removal.
NOTE: Adjust the solenoid position so that its roller just
contacts to the arm and tighten the two mount
screws while pushing the lower end of the arm
without coil spring as shown.
Removal
1. Remove the dryer exit unit top cover
(See Subsection 18.1.2).
2. Disconnect the connector from the sensor.
3. Release the locking tabs and remove the sensor.
Installation
Installation is essentially in the reverse order of
removal.
LII791
Arm
Screws (2)

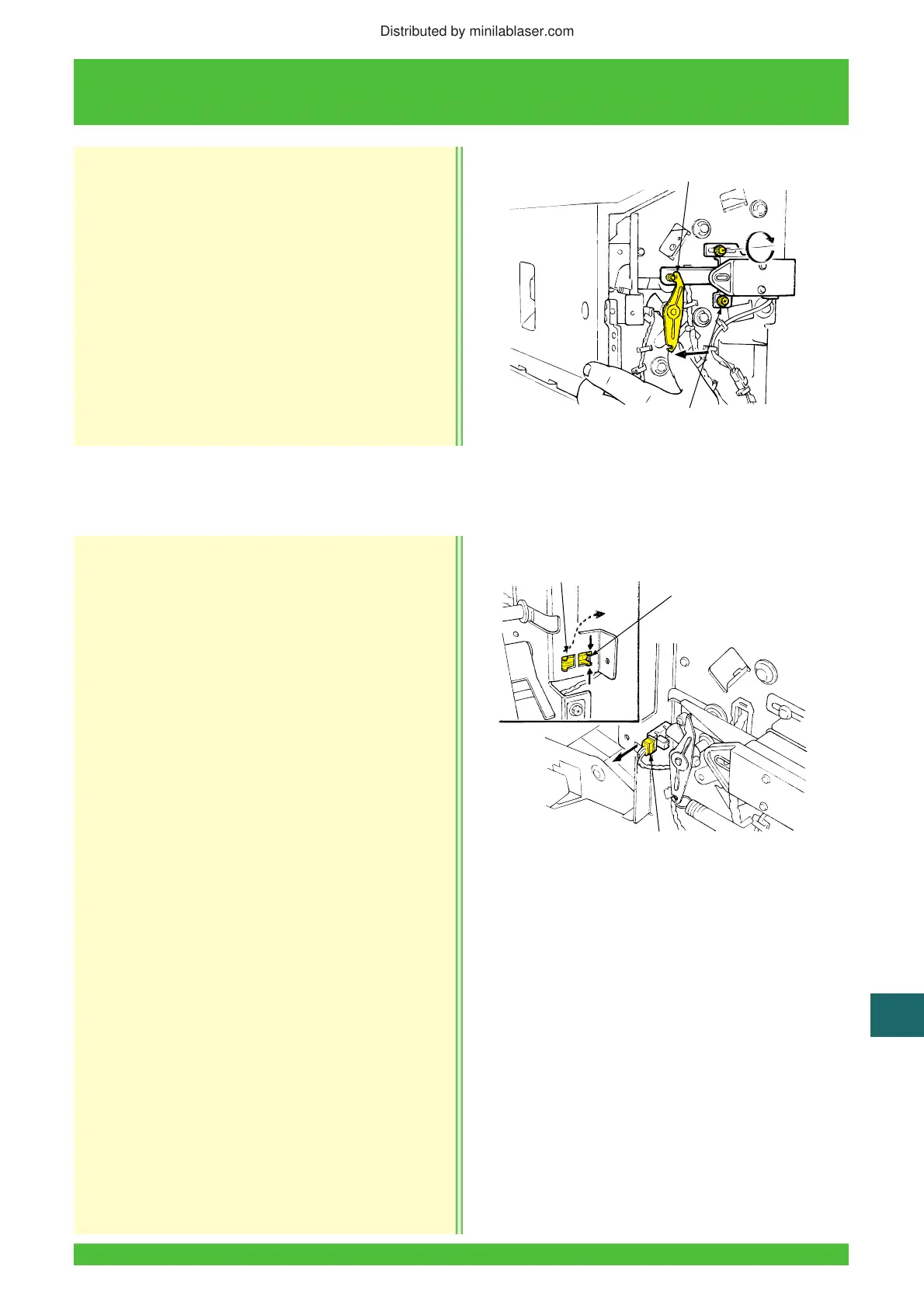

18.1.8 Feeding Path Switch Position Sensor (Large Size)(D776)
Replacement
LII789
Connector
Locking Tabs
Sensor (D776)
