12-24

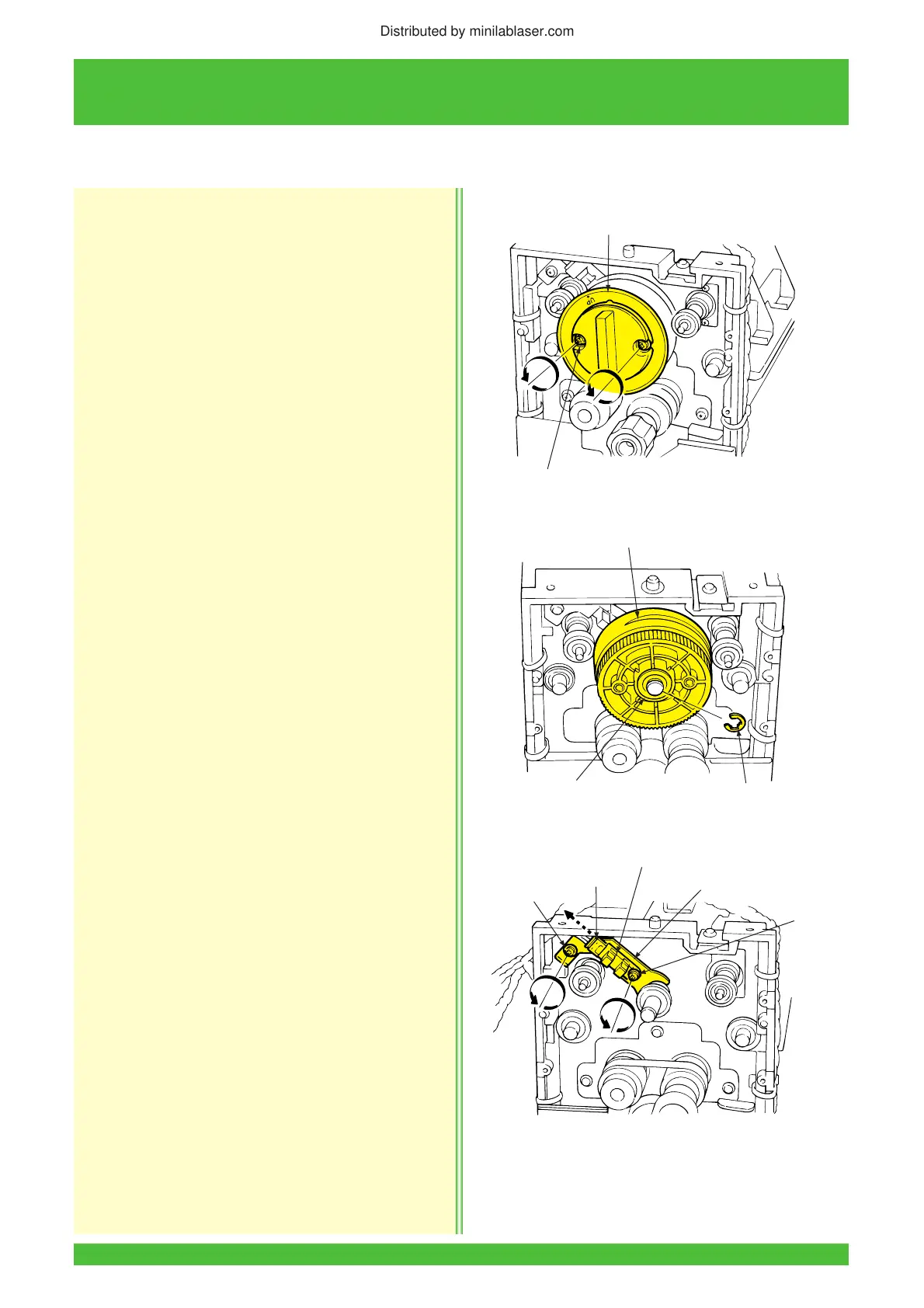

12.3 Sub-scanning Unit
Removal
1. Remove the timing belt (See Subsection 12.3.5).
2. Remove the two screws and then the knob.
3. Remove the E-ring, cam pulley and two bearings.
4. Remove the screw and then the sensor bracket.
5. Disconnect the connector then remove the screw
and the sensor.
12.3.8 Soft Nip Home Position Sensor (D651) Replacement
LII444
Screws (2)
Knob
LII445
E-ring
Cam Pulley
Bearings (2)
LII446
Screw
Sensor Bracket
Connector
Screw
Sensor (D651)
Distributed by minilablaser.com
