System expansions

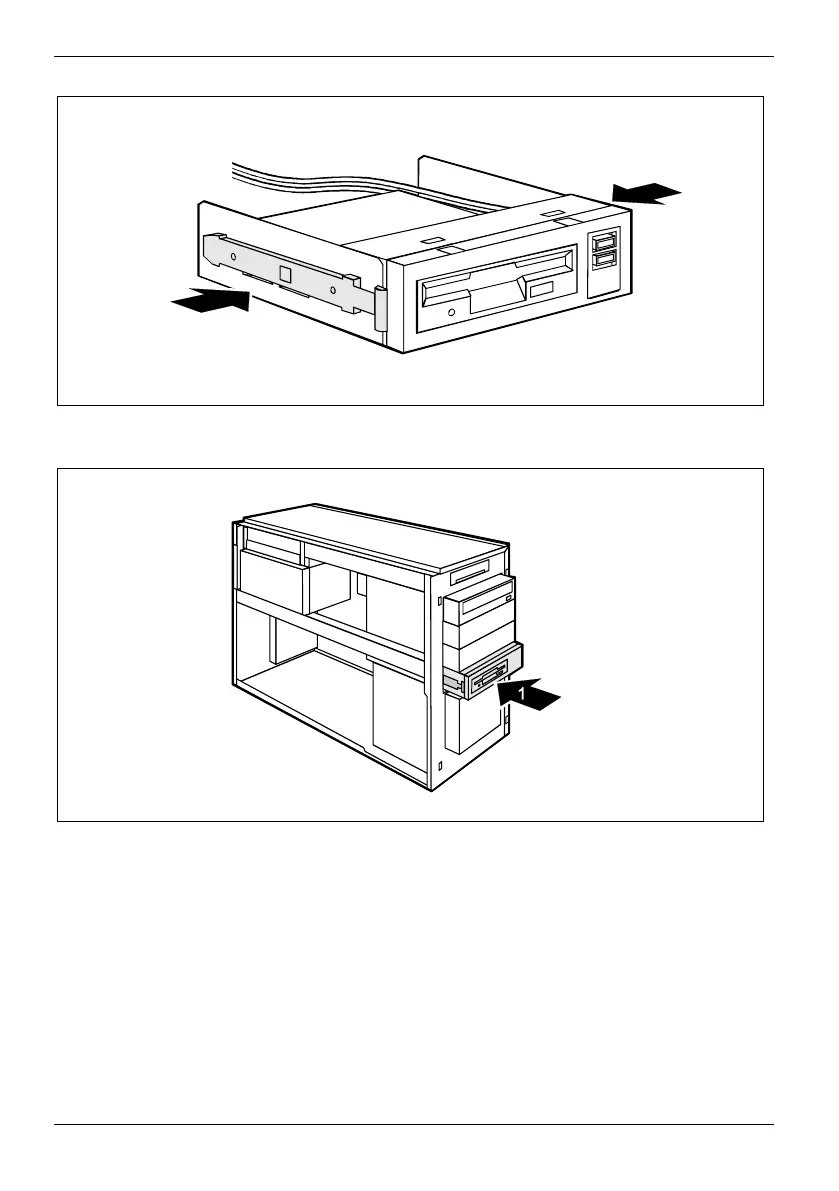

► Press the EasyChange rails into the provided holes.
► Slide the floppy disk slide-in module into the casing (1) until it engages noticeably. Fit the data
and power supply connectors to the floppy disk drive.
► Connect the USB cable and, if necessary, the audio cable to the corresponding connector on
the mainboard (see also the manual for the mainboard).
► Attach the front panel (see "Attaching the front panel").
► Close the casing (see "Closing the casing").
62 A26361-K665-Z126-1-19, edition 1
