System expansions

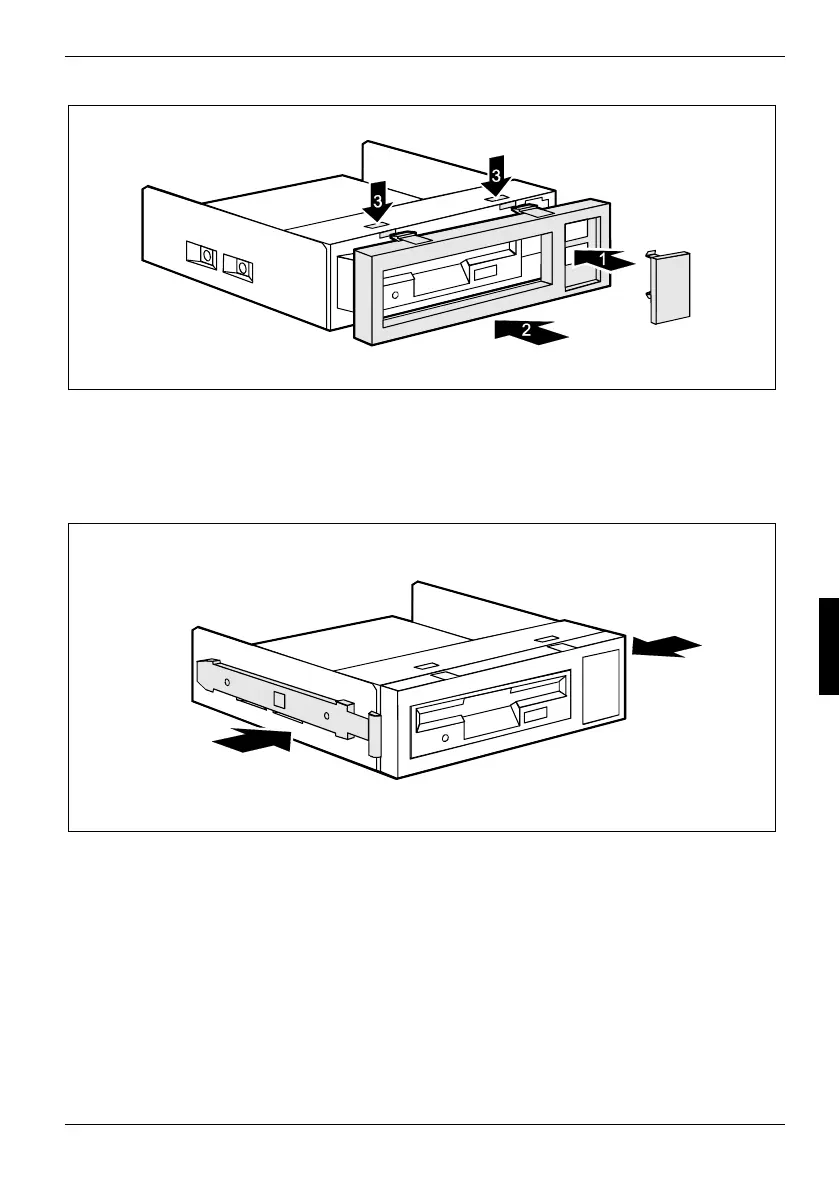

► Insert the blanking plate into the slide-in module bezel (1).
► Place the cover on the floppy disk slide-in module again (2).
► First attach the cover at the bottom and then push the upper tongues into place until they
engage (3).
► Press the EasyChange rails into the provided holes.
A26361-K665-Z126-1-19, edition 1 65
