Flat Washer
Split Washer
Lag Bolt
FNC001581_Rev_02

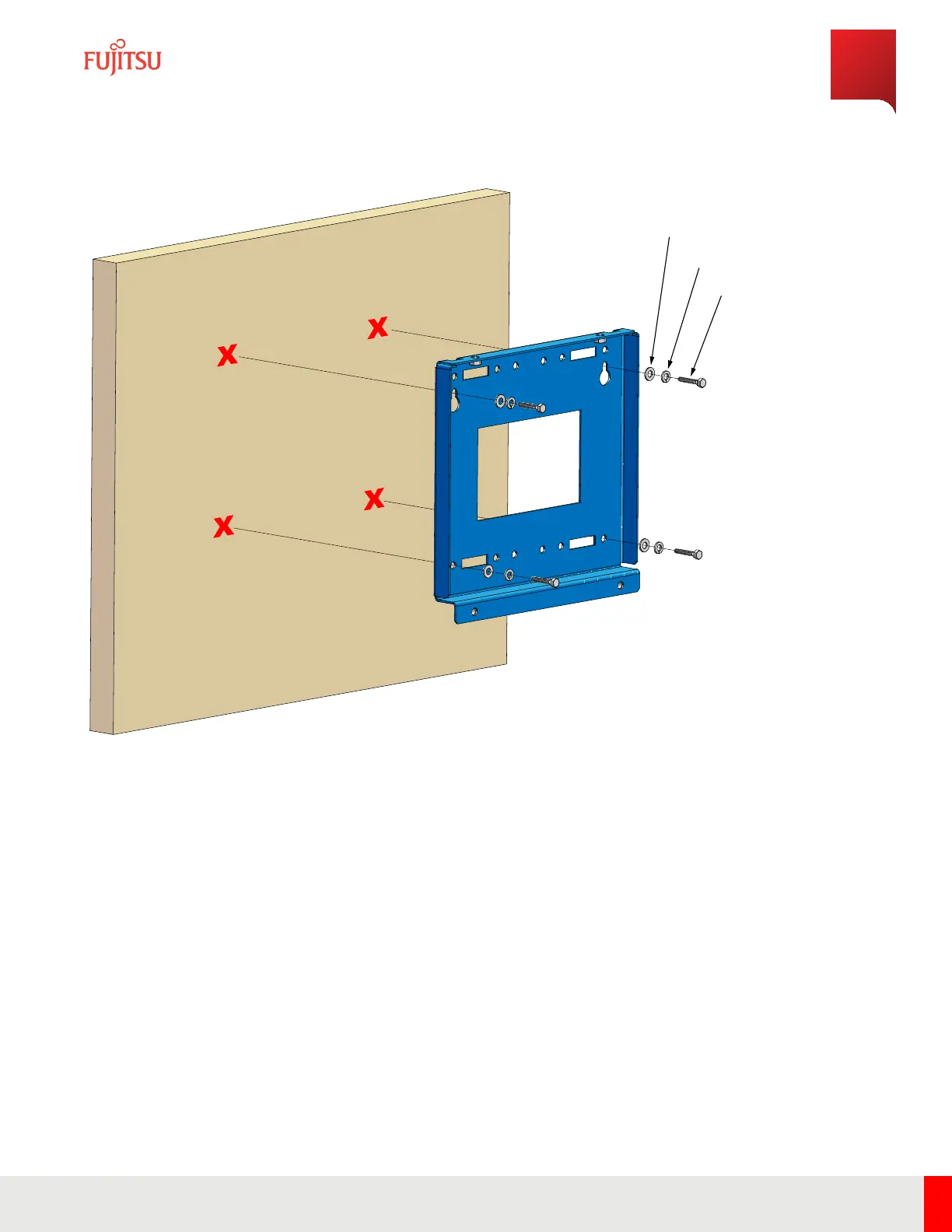

Figure 23
Aaching Wall Mount Plate to Wall Surface
Step 2
Torque each of the four bolts to 27 Nm.
Step 3
Place large insulating bushings on the wall plate by performing the following substeps:
a) Peel the adhesive covering o of the large insulating bushings.
b) Align the sticky side of the bushings with the threaded holes on the lower front lip of the wall plate and stick
them in place as shown in the following graphic.
Installation
RU Installation
107
Release 1.0 · Issue 1.1, May 2021
Fujitsu and Fujitsu Customer Use Only
To Next Page
