Chapter 2 Installation and Connection
IP-9500e
25
2.5 Connection to RS-232C
Device
The [232C] connector of IP-9500e is the RS-232C communication terminal. The terminal of
IP-9500e is the D-sub 9 pins (male) and the specification is DTE. Use a cross connection or straight
cable corresponding to the connected device. See Section 4.2, “Cable and Connector Details.”
The figure below shows the connection method.
For details about connectors and cables, see Section 4.2, “Cable and Connector Details.”
For electrical specifications, see Appendix 2.3, “Function Specifications.”

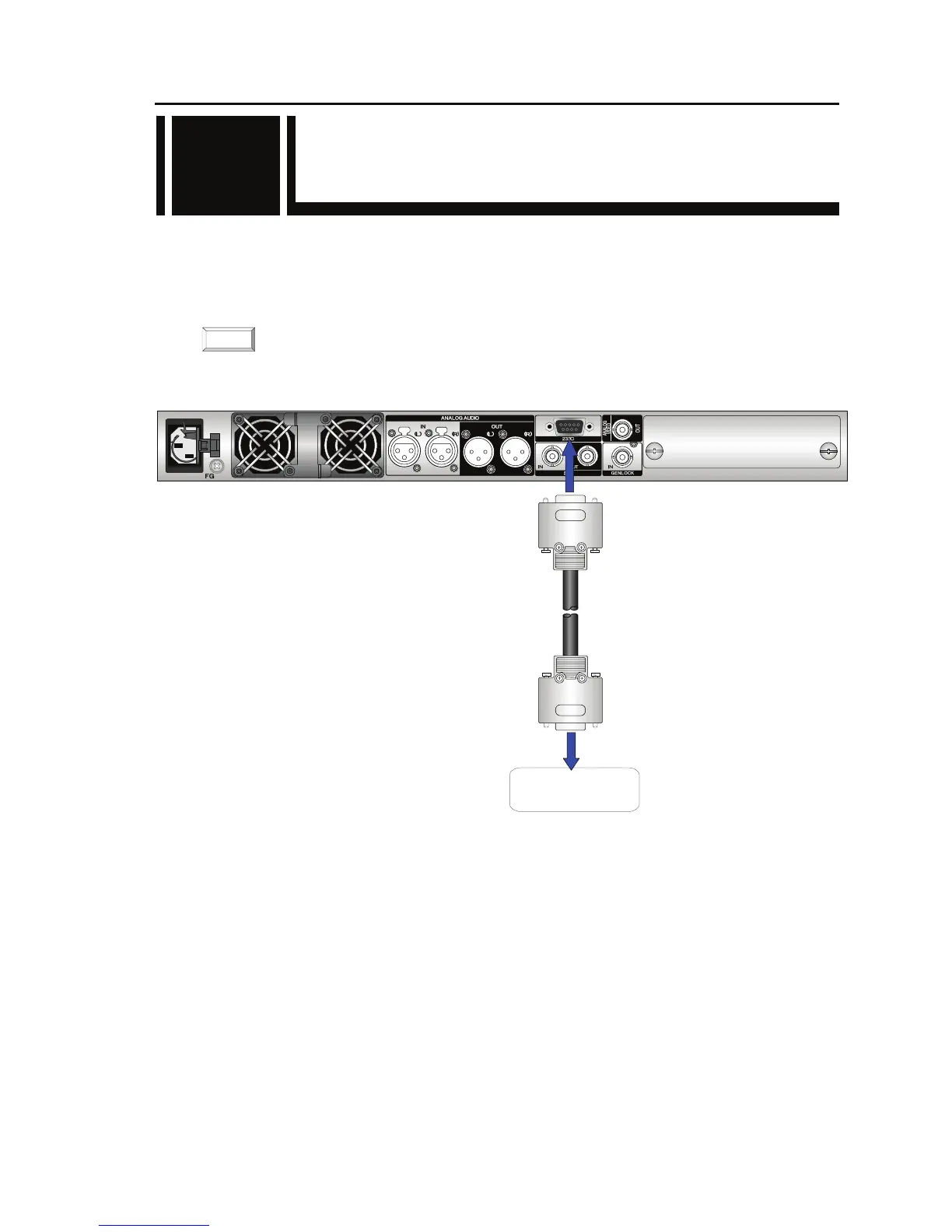

Figure Connection to RS-232C input/output device
2.5
PUSH
PUSH
Data communication
device
D-sub 9 pin female
NOTE:
To Next Page
