Fujitsu IP-9500e - 4.2 Cable and Connector Details

Chapter 4 Cable specifications
IP-9500e
52
4.2 Cable and Connector Details

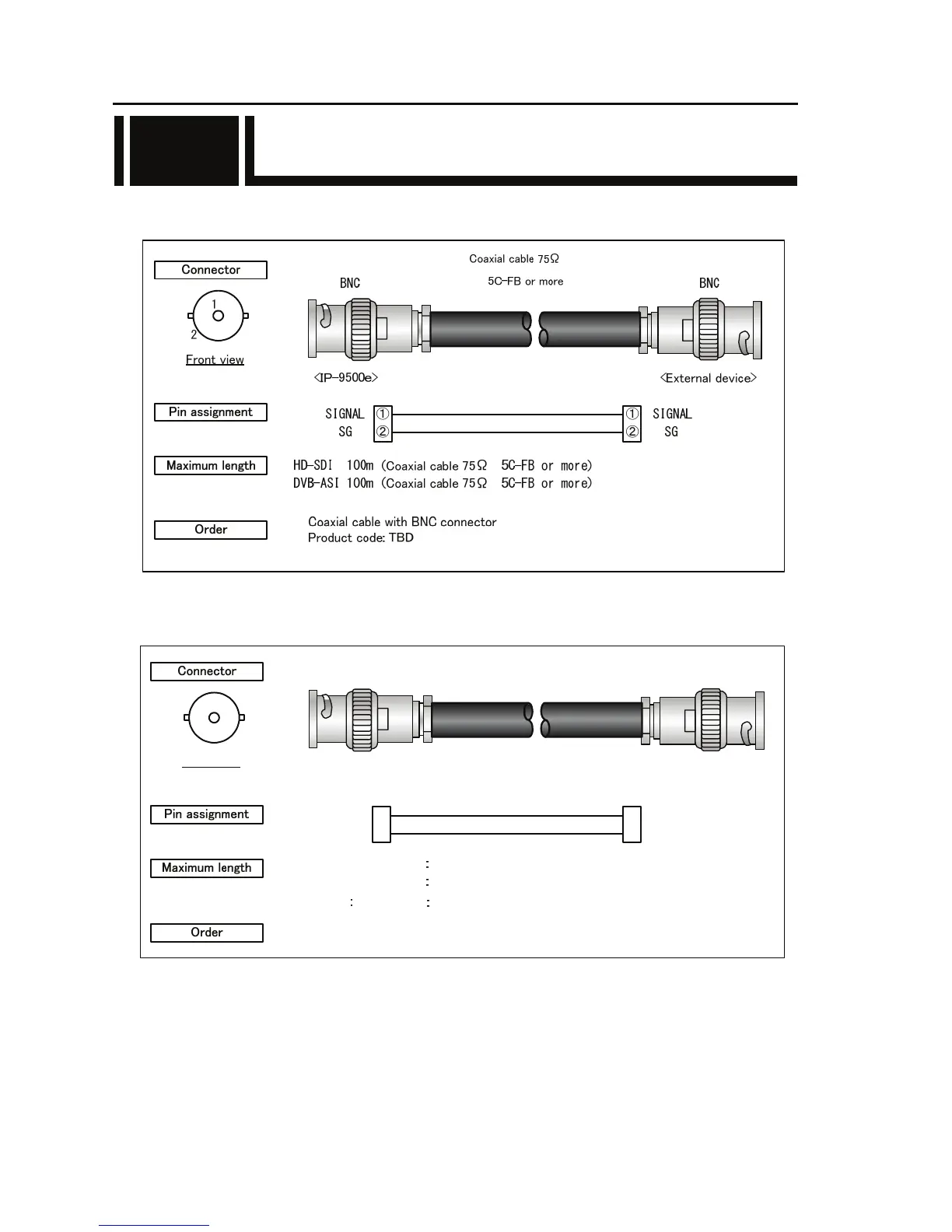

(1) SDI VIDEO cable
(2) Analog VIDEO / Synchronization (GENLOCK) cable
4.2
Coaxial cable 75Ω
(3C-2V or more)
1
2
BNC BNC
SIGNAL
SG
SIGNAL
SG
①
②
①
②
Coaxial cable with BNC connector
Product code: TBD
<IP-9500e> <External device>
Front view
NTSC
200m (Coaxial cable 75Ω 3C-2T)
30m (Coaxial cable 75Ω 3C-2T)Color
Mono
GEN LOCK
200m (Coaxial cable 75Ω 3C-2V)
