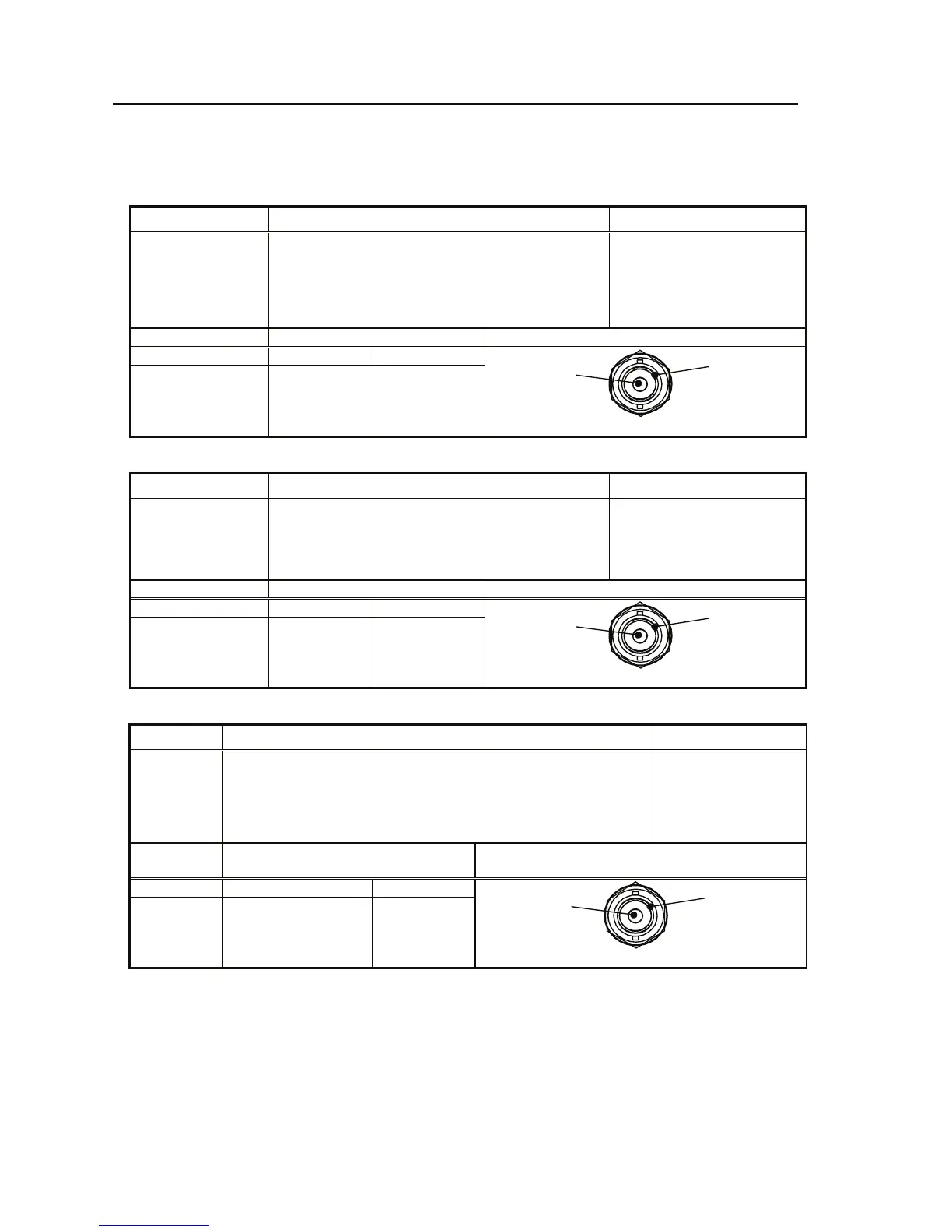

A.2.3 Function specifications
This chapter describes functional specifications of individual parts of the device.
<Main Component>
Name Specifications Remarks
Digital SDI
VIDEO input
Signal format: NRZI
Input impedance: 75Ω (Unbalanced)
Signal amplitude: 800mVp-p
Maximum amplitude level: 800mVp-p ± 10%
Connector name SDI IN BNC
Pin number Signal name Remarks
1
2
SIGNAL
SG
2
1
Name Specifications Remarks
Digital SDI
VIDEO output
Signal format: NRZI
Input impedance: 75Ω (Unbalanced)
Signal amplitude: 800mVp-p
Maximum amplitude level: 800mVp-p ± 10%
Connector name SDI OUT BNC
Pin number Signal name Remarks
1
2
SIGNAL
SG
2
1
Name Specifications Remarks
Analog
VIDEO
output
Signal format: NTSC w/o SETUP (Analog composite, 29.97frames/s)
PAL (Analog composite, 25frames/s)
Input impedance: 75Ω (Unbalanced)
Signal amplitude: 1.0 Vp-p
Maximum amplitude level: 0.5dB (0dB=100IRE)
Connector
name
ANALOG VIDEO NTSC/PAL OUT BNC
Pin number Signal name Remarks
1
2
SIGNAL
SG
2
1
